HTC Desire 610 Vibration Motor Replacement

Geschrieben von: Kaycee Hammond
  • Kommentare: 0
HTC Desire 610 Vibration Motor Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

Has your HTC Desire 610 stopped vibrating? Follow these steps to replace the faulty vibration motor. You will learn how to take off the back, unscrew the circuit cover, unplug the vibration harness, and put in a new motor.

  1. H4jVxnDvBTOMsZAn
    H4jVxnDvBTOMsZAn
    XpKiEGQ2ZgBaiV3T
    mGIncCYu4nvBWgqA

    • Using a plastic opening tool, take off the back cover of the phone.

  2. dBFjuiF4yFJtMpjd

    • Remove the four black 4mm torx screws using the Torx T5 bit.

  3. jkajd5FZH6IvTIxZ

    • Remove the four silver 5mm torx head screws using the Torx T5 screwdriver.

  4. M4sC2GFfXCLrXUcw

    • Remove the two 2.5mm phillips head screws using the Phillips 000 screwdriver.

  5. 56yrL2nDcS6GKI3S

    • Remove the black plastic circuit cover using a plastic opening tool.

  6. nMnVWrP1yRrnBMaF
    nMnVWrP1yRrnBMaF
    RlqfoboHreZjODOU

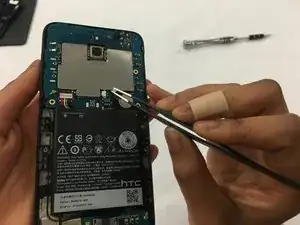

    • Pull the wire harness from the circuit board that is connected to the vibration motor using a pair of precision tweezers.

    • Be careful! Damaging this port could prevent a new vibration motor from functioning.

  7. KRnmPEsiQbyfrsq2
    KRnmPEsiQbyfrsq2
    y3byVylMPO3ArvCM

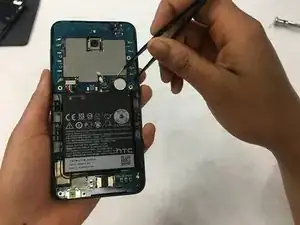

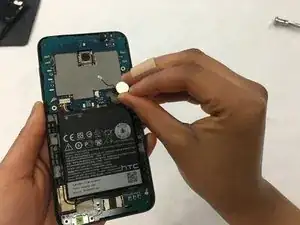

    • Pry the vibration motor from it's housing using precision tweezers.

    • The vibration motor is held in place with adhesive, so you may need to pry a little harder to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
