Einleitung
-
-
Insert an opening pick between the back cover and chassis, and pry around the perimeter until the back cover releases.
-

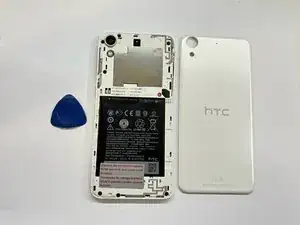

Remove the back cover.
-
-
-
Remove the "void" sticker over the screw near the top-right of the battery, and the larger one near bottom of the battery.
-

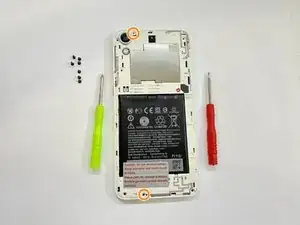

Use a Torx T5 screwdriver to remove the six screws.
-

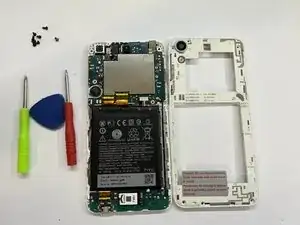

Use a Phillips #000 screwdriver to remove the two screws.
-
-
-

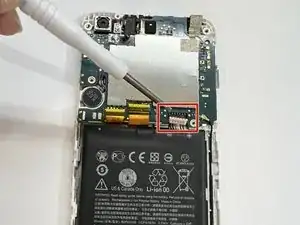

Use an ESD safe tool to carefully "walk" the battery connector out of its port.
-

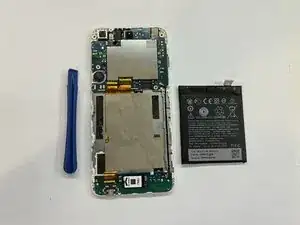

Use an opening tool to lift the battery up and out of its housing.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
