HTC Desire 626s Battery Replacement

Insert plastic opening tool in between the back cover and grey plastic.

Gently work your way around the phone while sliding the tool.

Gently pry on plastic cover as needed to release fasteners.

There are 7 screws you need to remove before prying the secondary cover off. You will need to use the JIS #000 screwdriver and the T5 Torx screwdriver to remove these screws.

There is a screw under the "void" sticker.

Once the screws are removed, use the plastic opening tool to remove the remaining plastic cover.

Start from the corners of the phone, and insert the plastic opening tool between the outer colored rim and the screen.

This portion of the cover will be more difficult to remove than the initial back cover. Be patient and gentle around the button holes.

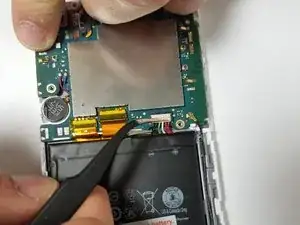

By using the angled tweezers, you have to be careful when you try to remove the battery connection by start pulling the wires.

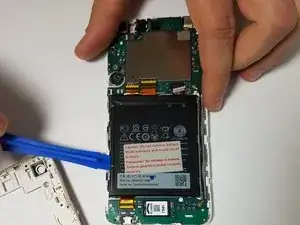

Using the plastic opening tool to separate the battery and remove it.

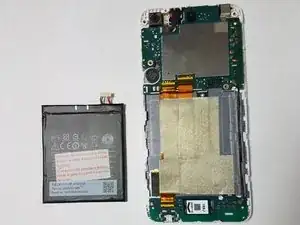

Pull the battery out
