Einleitung
This is a device removal guide for your HTC Desire 626s if you ever need to replace the loud speaker.
-
-
Insert plastic opening tool in between the back cover and grey plastic.
-
Gently work your way around the phone while sliding the tool.
-
Gently pry on plastic cover as needed to release fasteners.
-
-
-
There are 7 screws you need to remove before prying the secondary cover off. You will need to use the JIS #000 screwdriver and the T5 Torx screwdriver to remove these screws.
-
There is a screw under the "void" sticker.
-
-
-
Once the screws are removed, use the plastic opening tool to remove the remaining plastic cover.
-

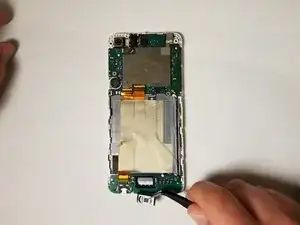

Start from the corners of the phone, and insert the plastic opening tool between the outer colored rim and the screen.
-
This portion of the cover will be more difficult to remove than the initial back cover. Be patient and gentle around the button holes.
-
-
-

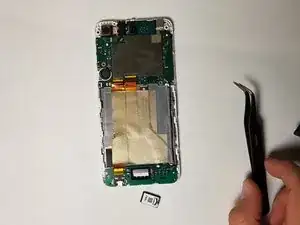

Wiggle the loudspeaker with the tweezers if it does not at first come out.
-
Congratulations you have successfully removed the loudspeaker.
-
To reassemble your device, follow these instructions in reverse order.
