HTC Desire 826 Back Camera Replacement

Geschrieben von: Jordan Warnix
  • Kommentare: 0
HTC Desire 826 Back Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

This guide will help you with replacing your back camera of your HTC Desire 826.

  1. lHYhgKZYcZKepISM
    lHYhgKZYcZKepISM
    SYxHQMC5GaTjXMaW
    DEJQKfKwPGQTURN5

    • Find a seam in the back of the device.

    • Insert the plastic spudger into the seam and pry off the back panel.

    • There will be glue, so keep prying until it comes off or you may need to heat up the edges of the device to loosen the adhesive with the iOpener.

  2. aUiFSEy5tMDKLxuv
    aUiFSEy5tMDKLxuv
    pss1vG2DidfgTFSD
    SNbYrsBYSERfhvw2

    • Remove the 4.0 mm screw above the battery with a T5 Torx screwdriver.

    • Remove the metal bracket with the tweezers.

  3. 6FPGPwKTNHvNpbsf

    • Disconnect the battery cable from the motherboard with the tweezers.

  4. xdOsG5IgjpmCmVVL
    xdOsG5IgjpmCmVVL
    At4LqV2sup1Xsvxw

    • Lift the battery with a plastic spudger and remove it from the device.

  5. ASSDnwgtLLOf1DQQ
    ASSDnwgtLLOf1DQQ
    wpGYLr2qSIwbLRYE
    FRXxfGyQ1ij1B2PA

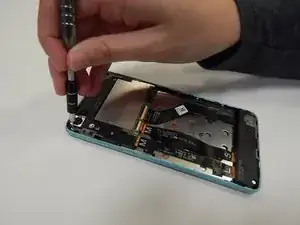

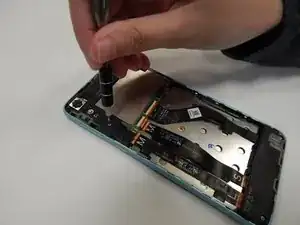

    • Use a T5 Torx screwdriver to remove the three 4.0 mm screws.

  6. HbRAXHfn2irIBpWS

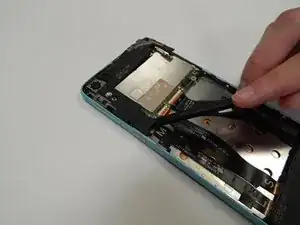

    • Use the spudger to lift the black plastic covering.

  7. qZlyCqnJfFXTBHOO
    qZlyCqnJfFXTBHOO
    iEBscdVxSYmMtQpV
    MTmSCUL3XWYOVI2U

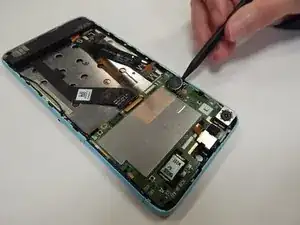

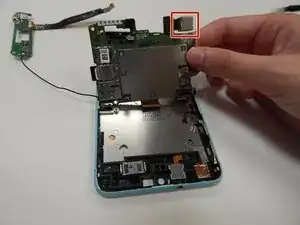

    • Use the spudger to lift the green board. The back camera is attached on the side as shown.

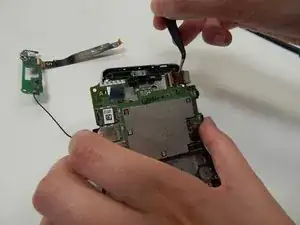

    • Use the tweezers to disconnect and remove the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
