HTC Desire V Button Assembly Replacement

Geschrieben von: William McCusker
  • Kommentare: 0
HTC Desire V Button Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will show you how to replace the Navigation Board of the HTC Desire V smartphone.

  1. 51UrWKe4ktasnGHl
    51UrWKe4ktasnGHl
    NcHfrTgsUoRva6yI
    CA2DpcYNmDrYDjIl

    • Gently pry back cover away from phone.

    • If you are having difficulty you may need to use a Spudger or plastic opener.

  2. mAdXU5TFQInQ1ixx
    mAdXU5TFQInQ1ixx
    LQ4hhGBKKL5KAA1q
    v6UpMKFlvyCaixIU

    • Lever the battery out from the bottom end first.

    • Do not bend or puncture the battery.

  3. WIlCGYDnPjv5VXJo
    WIlCGYDnPjv5VXJo
    2LJ1VADkNpWPf66i
    Y33LPJsHfbZcDZad

    • Use a Torx T5 screwdriver to unscrew and remove five 3.0 mm screws from the rear frame.

  4. 5iBYSrxNxjSAHvPp
    5iBYSrxNxjSAHvPp
    5Tkxhhd42vMuIYQl
    iQknLDAvqCRCYlnX

    • Use an opening tool or a spudger to gently remove the rear frame.

  5. uVLGQbqtXtJJkSlE
    uVLGQbqtXtJJkSlE
    KE4gvBofJjI4FXpq

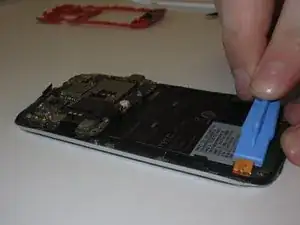

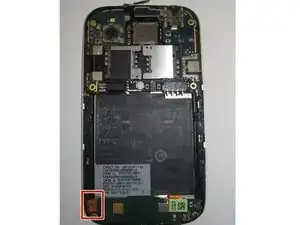

    • Remove the connector on left side of the Navigation board by unplugging/prying the orange ribbon.

  6. EGeQmiJSiYmEiNJt
    EGeQmiJSiYmEiNJt
    WrQWDIRUYSwgqsVO

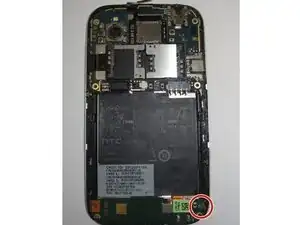

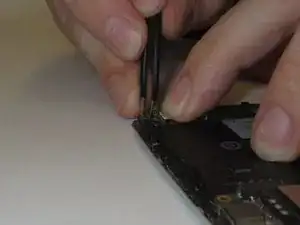

    • Gently unplug and remove aerial cable (black antenna) from bottom plug.

  7. BVrZuBkY2NoBUVAJ
    BVrZuBkY2NoBUVAJ
    hTo2DhuGcn2qIfVS

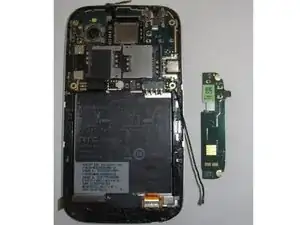

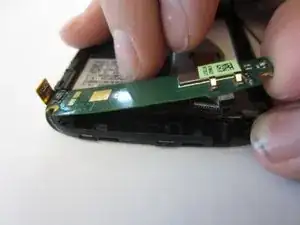

    • Nav Board will be stuck down by glue.

    • Pull gently from the right end of the board, being careful of its flexibility.

Abschluss

To reassemble your device, follow these instructions in reverse order.
