HTC Desire V Speaker Replacement

Geschrieben von: William McCusker
  • Kommentare: 0
HTC Desire V Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will outline how to remove and replace the main rear speaker of the HTC Desire V smartphone.

  1. 51UrWKe4ktasnGHl
    51UrWKe4ktasnGHl
    NcHfrTgsUoRva6yI
    CA2DpcYNmDrYDjIl

    • Gently pry back cover away from phone.

    • If you are having difficulty you may need to use a Spudger or plastic opener.

  2. mAdXU5TFQInQ1ixx
    mAdXU5TFQInQ1ixx
    LQ4hhGBKKL5KAA1q
    v6UpMKFlvyCaixIU

    • Lever the battery out from the bottom end first.

    • Do not bend or puncture the battery.

  3. WIlCGYDnPjv5VXJo
    WIlCGYDnPjv5VXJo
    2LJ1VADkNpWPf66i
    Y33LPJsHfbZcDZad

    • Use a Torx T5 screwdriver to unscrew and remove five 3.0 mm screws from the rear frame.

  4. 5iBYSrxNxjSAHvPp
    5iBYSrxNxjSAHvPp
    5Tkxhhd42vMuIYQl
    iQknLDAvqCRCYlnX

    • Use an opening tool or a spudger to gently remove the rear frame.

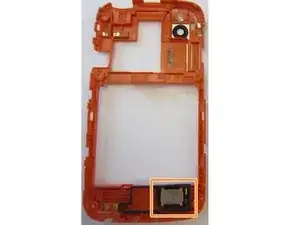

  5. BAjPGsdGxLNZuTF5
    BAjPGsdGxLNZuTF5
    f4lZ1s4RrbNXPcE3
    TXaGZCWt6pkX5GDb

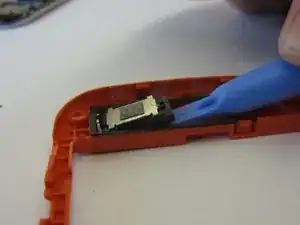

    • Using a smaller prying tool, spudger or similar, lever up the speaker at the bottom end of the phone shown in the picture (bottom right)

    • The bottom is sticky, so expect some resistance

Abschluss

To reassemble your device, follow these instructions in reverse order.
