HTC Desire V Vibration Motor Replacement

Geschrieben von: William McCusker
  • Kommentare: 0
HTC Desire V Vibration Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will outline how to remove and replace the vibration motor of the HTC Desire V smartphone.

  1. 51UrWKe4ktasnGHl
    51UrWKe4ktasnGHl
    NcHfrTgsUoRva6yI
    CA2DpcYNmDrYDjIl

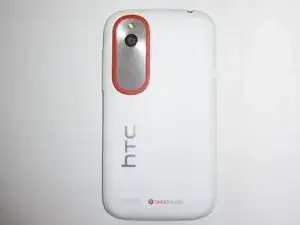

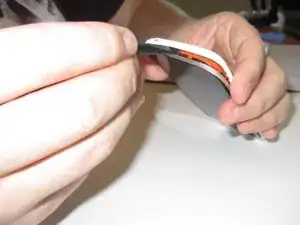

    • Gently pry back cover away from phone.

    • If you are having difficulty you may need to use a Spudger or plastic opener.

  2. mAdXU5TFQInQ1ixx
    mAdXU5TFQInQ1ixx
    LQ4hhGBKKL5KAA1q
    v6UpMKFlvyCaixIU

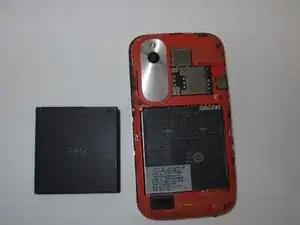

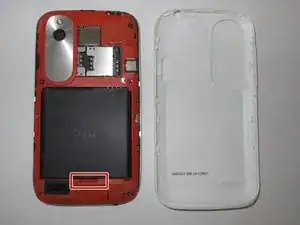

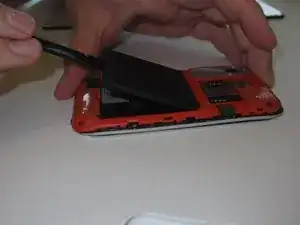

    • Lever the battery out from the bottom end first.

    • Do not bend or puncture the battery.

  3. WIlCGYDnPjv5VXJo
    WIlCGYDnPjv5VXJo
    2LJ1VADkNpWPf66i
    Y33LPJsHfbZcDZad

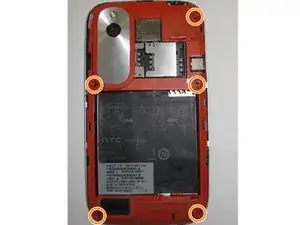

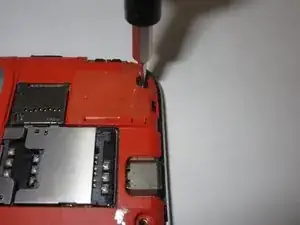

    • Use a Torx T5 screwdriver to unscrew and remove five 3.0 mm screws from the rear frame.

  4. 5iBYSrxNxjSAHvPp
    5iBYSrxNxjSAHvPp
    5Tkxhhd42vMuIYQl
    iQknLDAvqCRCYlnX

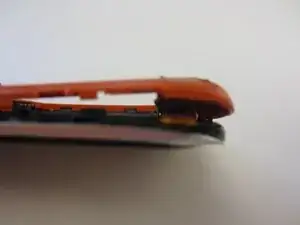

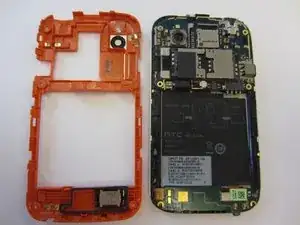

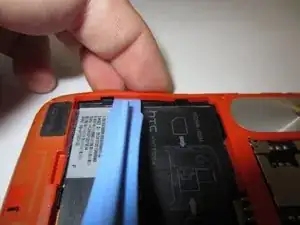

    • Use an opening tool or a spudger to gently remove the rear frame.

  5. jah4OfQoGaNVMJBF
    jah4OfQoGaNVMJBF
    RXRbWAigJRGaPB3D

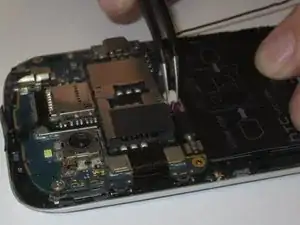

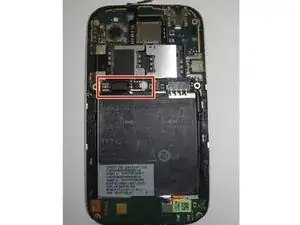

    • Unplug the vibration motor shown from the white plug on the motherboard.

    • You will probably need tweezers to do this.

  6. vDcP3oW4COLn5QeN
    vDcP3oW4COLn5QeN
    PfMWNrH2R4bT2eON

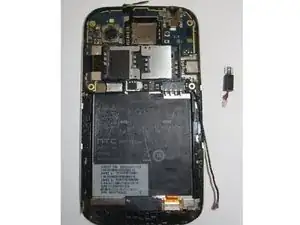

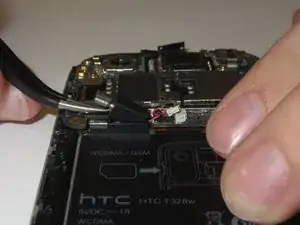

    • Gently remove the motor from its housing in the phone’s chassis.

    • The easiest way to do this is to lever the motor out by its rotating end using the tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
