Use this guide to remove and replace the charging port from your Droid DNA.

  1. tNYRChxKiTfQJiWS
    • Poke a paperclip into the hole to the right of the SIM Card Tray. The SIM Card Tray will automatically pop out.

  2. IG4QmgRY6buTAoAf
    IG4QmgRY6buTAoAf
    PPcIGPqjRrOOMRtc
    • Pull out the SIM Card Tray with your fingers.

  3. MisGGlvyVyMWxIHt
    MisGGlvyVyMWxIHt
    G2iX4xUxEFlk2lTa
    • Make sure the USB cover on the bottom of the phone is removed first.

    • Starting at a corner, slowly work your way around the edge of the sides with your prying tool to loosen the front panel.

    • Take your time. A lot of force is necessary to loosen the front panel.

  4. rJGjPwljW4H5tVPy
    • Slowly pull the panel apart from the back of the phone.

    • Apply a moderate force to pry the panel from the back of the phone.

  5. gPZDNisoVX2SNXWq
    • Set the device down so that the bottom of the phone is facing to the right.

    • Gently take off the piece of black tape surrounding the motherboard.

    • Be careful not to rip the tape.

    This tape wasn't present on my phone

    Gerry Lingner -

  6. AjeOT5UFEB5FtGED
    • Use your tweezers to take off the yellow tape on the bottom left corner of the phone.

    Needed T4 Torx driver for this, not T5, on my phone.

    Gerry Lingner -

  7. PjmbNPfNUoaVnwVY
    • Rotate your phone 90 degrees clockwise so the bottom of the phone is facing you.

    • Use the T5 Torx screwdriver to remove the two 4mm screws located at the bottom of the phone.

  8. mWRxJt1BQMIQDmJH
    • Use the Phillips #000 screwdriver to remove the single 2.7mm void screw on the bottom right.

    Note that, in the picture, there is a hole under the connector which rests over the yellow tape removed in step 7. There may be a screw in that hole which is opposite the screw removed in step 8. You may also have a different void screw toward the bottom-left of the phone.

    cmbarona -

  9. fmfw1hr2jCCVKgYb
    • Rotate your phone back 90 Degrees counter-clockwise.

    • Use your tweezers to take off the small metal retaining bracket on the bottom right of the phone.

  10. VHfxReXGCujQ4Bsu
    • Remove the following Phillips #000 screws from the motherboard:

    • Four 1.6 mm screws

    • Two 1.5 mm screws

  11. ZOTUWiBI1lJeDQdm
    ZOTUWiBI1lJeDQdm
    PJTiNmEYZemdZmdH
    • Use your pry tool to unfasten the connectors on both sides of the motherboard.

    • The connectors will still be attached to the green camera board at the top so DO NOT try to pull them off or bend them severely.

  12. kuVYG4dPfANCGLAF
    • Use your tweezers to remove the two pieces of yellow tape shown.

  13. bMeTu4BvE1CVC1Pq
    bMeTu4BvE1CVC1Pq
    OBxg55CPJAuTCjqW
    • Use your tweezers to gently snap up the white board on the bottom right of the motherboard.

  14. fknUhCMOSg4lMkce
    • Use your tweezers to disconnect the black connector on the bottom right of the motherboard.

    • Be careful not to bend the Flex Cable of the Connector.

  15. DMmTQIiA5PC3wS2k
    DMmTQIiA5PC3wS2k
    wDM2HGbWRDI2MuQE
    • Use your tweezers to gently snap the other white board on the bottom right of the motherboard up.

  16. GL4bAUZAEnKsVNdu
    • Use your tweezers to disconnect the other small connector on the bottom right of the motherboard.

    • Be careful not to bend the Flex Cables for the Connector.

  17. HumVT2QtkvPSSCNO
    HumVT2QtkvPSSCNO
    2yf2a5VVW46FgwNT
    • Rotate the phone 180 degrees.

    • Use your tweezers to gently snap up the white board on the top left of the motherboard.

  18. PVDUracgBgcaafSS
    • Use your tweezers to disconnect the cable on the top left of the motherboard.

    • Be careful not to bend the Flex Cable of the Connector.

  19. hTWc5ZnMMOGolXCs
    hTWc5ZnMMOGolXCs
    2JiLLvCyWXpEbYsY
    • Use your tweezers to gently snap up the black board on the top left of the motherboard.

  20. lZeD4UwoUJhcs2XP
    • Use your tweezers to gently remove the yellow connector on the top left of the phone.

  21. AYNU22KTDtlKJBFd
    • Remove the long black wire on the left of the motherboard.

  22. E3k4TQUXPkpAZUfc
    • Reorient the phone so that the green camera board is farthest from you.

    • Use your tweezers to remove the two wires located at the top of the board. The wires snap off very easily so not much force is needed.

    Had additional screw to remove here at bottom of phone opposite location of Void screw

    Gerry Lingner -

  23. 4uobEGN2wU6yxM4l
    • Use a Phillips #000 screwdriver to remove the two 3.9mm screws on top of motherboard.

  24. T1CeEHhER5I3MMta
    T1CeEHhER5I3MMta
    wSNTYEUTOJgSlqnS
    • Now, use your fingers to slowly pull up the motherboard and remove it from the phone.

  25. gWY4NI23j2OKGgO2
    gWY4NI23j2OKGgO2
    gJpKRNkNSYLW5Q6C
    • Use the plastic prying tool to gently remove the charging port assembly.

  26. 4VGBN464XXngQdA4
    • Use a Phillips #000 screw driver to remove the single 2.1mm screw located on the backside of the assembly.

  27. I26vlhXbGPpxOLlD
    I26vlhXbGPpxOLlD
    CamxpJgVJaVpvpuJ
    • Use your tweezers to undo the red and black wire connection.

  28. i3P6RwOyODMP3jjW
    i3P6RwOyODMP3jjW
    WWFMcOTaTAkcVKvt
    BTgIOU1S1pAyZenf
    • Use the plastic prying tool to separate the assembly into two pieces: blue and black.

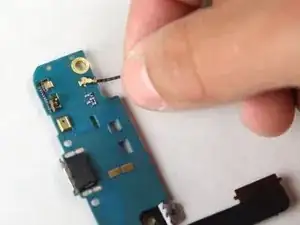

  29. MGXNgQh6EsiKtPDH
    MGXNgQh6EsiKtPDH
    OfNQnTFqnRYWOoGu

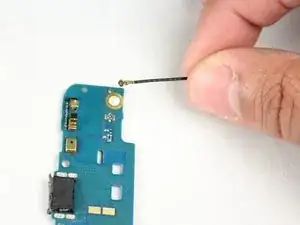

    • Remove the black wire on the blue piece (the Micro USB charging port) so it is out of the way and cannot get damaged.

    • If the micro USB port is damaged, the charging port may need to be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
