Is your Droid Incredible not sounding so incredible? Use this guide to replace the rear speaker.
-
-
Press your thumbnail into the slot between the rear panel and the front case located in the bottom of the phone.
-
Gently pry the rear panel up and away from the phone. You may need to slide your thumb up the crack to separate the rear panel from the front case.
-
-
-
Insert a fingertip into the gap between the battery and the rear inner frame, located between the battery and the speaker. Slide the battery away from the speaker, widening the gap.
-
Lift the top of the battery up and remove the battery from the rear inner frame.
-
-
-
Press the MicroSD card further into its slot until it clicks.
-
Release the MicroSD card, and it will pop out slightly.
-
-
-
The rear inner frame is attached to the front case by nine plastic clips, marked here for reference.
-
-
-
Starting on the bottom of the phone, gently push in on the (red) rear inner frame behind each black clip with a small flathead screwdriver.
-
Go slow and be gentle, you may have to go back and forth between each side several times to work the rear inner case free.
-
-
-
Loosen the clips on the side next to the camera using the method described in the previous step.
-
-
-
Rotate the phone 180 degrees and loosen the three clips on the side by the speaker. Note that the middle clip on this side is smaller than the others.
-
-
-
Use the same technique to loosen the clip on the top of the phone.
-
You may need to gently lift the bottom of the rear inner frame to free this clip.
-

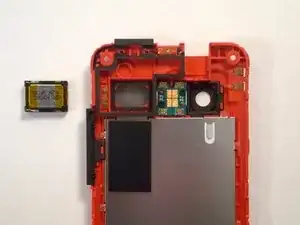

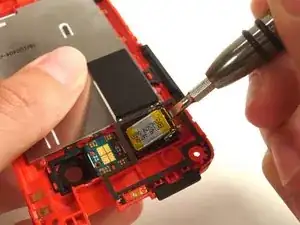

To reassemble your device, follow these instructions in reverse order. Note that the spring contacts on the rear speaker must face toward the outside of the device, to connect with the logic board.
