This repair is needed when your screen is scratched or not working properly. Be cautious of sharp metal parts in a device as they can cause bodily injury.

  1. W5Qjc4ww3xIQyXw6
    W5Qjc4ww3xIQyXw6
    Vj2DbLLFUMAVDKfZ
    GmGeWYy2cZ1Q11U4

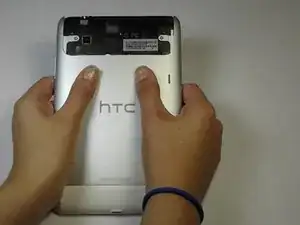

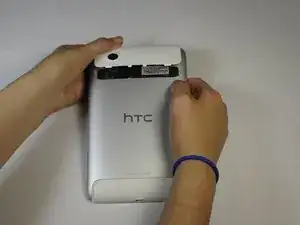

    • Apply pressure along the bottom of the white panel containing the camera and push upwards.

    • It may take some effort, but it will smoothly slide off.

  2. FcVxhTidqpxwtNiW
    FcVxhTidqpxwtNiW
    DHYXB33QXl5NOvFR
    IfbooLdQd6K1YauU

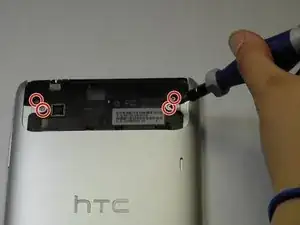

    • Unscrew the four of 3.5mm Torx T5 screws that run along the sides of the exposed innards.

    • All screws in the device will use the Torx T5 screwdriver, so keep it handy.

  3. JnSLvv2Q6E3OoRfb
    JnSLvv2Q6E3OoRfb
    3GUCIJKkvTcX1hTD
    senNKoBaY5mrbUXB

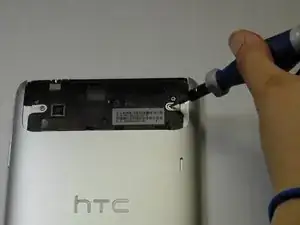

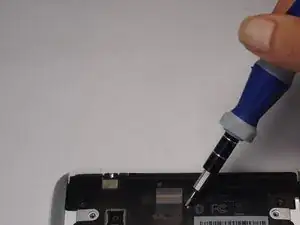

    • Remove the black protective piece of plastic by sliding it upwards.

    • Remove the two 3.5mm Torx #5 screws holding the protective plastic down on along the sides.

    • A center 3.5mm Torx screw will be covered by "VOID" sticker.

    • Either remove the sticker or jam the screwdriver into the screw, and remove the screw.

    • Remove the protective panel by sliding it upwards.

  4. V6YkELdKMjtYKUAB
    V6YkELdKMjtYKUAB
    OAmefsMtKhmayvKW

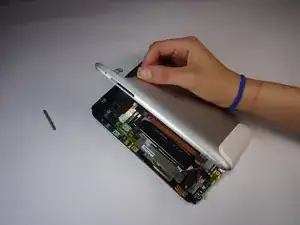

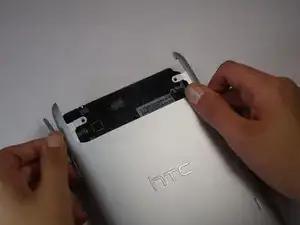

    • Before removing the back cover, apply some scotch tape to the volume buttons to prevent them from falling out of the back panel.

    • Use a plastic opening tool to lever up the top half of the cover.

    • Lift the back panel up and remove it from the device.

  5. gGPIeMajL4rAGncX
    gGPIeMajL4rAGncX
    iCbBrNJsAyZAoxyF
    • Gently unfold the black tape along the top that covers the cable attachment points.

    • Leave the tape partially attached so that it can be easily re-attached.

  6. VidCnSW36aiDAoCQ
    VidCnSW36aiDAoCQ
    RPmyVvFONrOtJIAo
    bCfl2BMslrpVxLMv

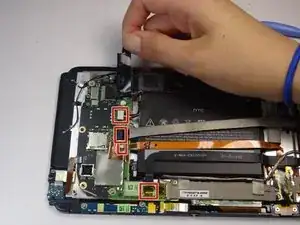

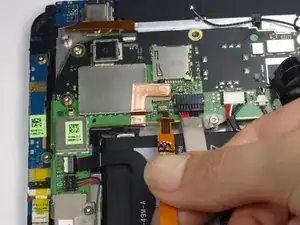

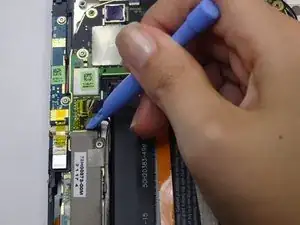

    • Use the tip of a spudger as a lever to disconnect the four cable connectors.

    • Gently pull out these cables after releasing the back piece.

  7. qbcsqvFuxPD4En6f
    • Remove the single 2.5mm Torx T5 screw holding the battery down along the top side.

  8. MgdW1liPARQ2rTEy
    MgdW1liPARQ2rTEy
    JicP3R6Oh4e3Rd66
    oEibiLnJIkpgMNQv

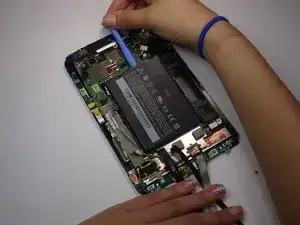

    • Wedge the flat end of a spudger inbetween the battery and the front panel assembly.

    • Run the flat end of a spudger along the top edge of the battery to separate it from the adhesive securing it to the front panel assembly.

    • If you encounter any resistance from the remaining adhesive, simply use the flat end of a spudger to remove the excess adhesive.

  9. mWcaaUpWsTsWKFFm
    mWcaaUpWsTsWKFFm
    VAdfE1VYdOus4Kfx

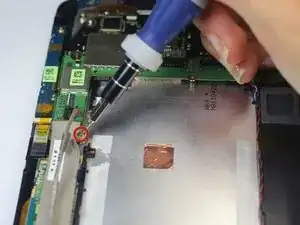

    • Remove the four 2.5mm Torx #5 screws that run along the motherboard's rim.

  10. eW1WKBf6DJ62Zsj1
    • Use a spudger to remove the two black ground wires from the right side of the motherboard.

    • Remove the two multicolored speaker cables on the right side by lifting up the "lever" on the opposite side of the cable socket and then pulling out the cables.

  11. AIYAwO1wcHQ1Th5G
    AIYAwO1wcHQ1Th5G
    CdQ1LgPSHLsUhd2Y

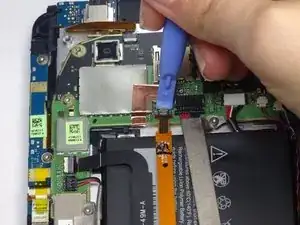

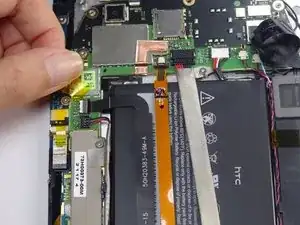

    • Lift up the translucent yellow tape to expose the cable sockets.

    • Use the spudger to lift up the cable's "lever".

    • Pull out the cables.

  12. VxxcES6xhEfAMSGJ
    VxxcES6xhEfAMSGJ
    kPRSI3FMRcKRyNnk

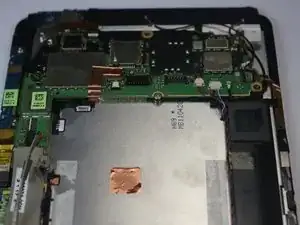

    • Remove the cable along the headphone in the same way the lower cables were removed.

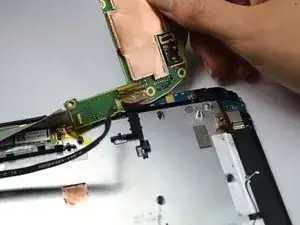

  13. OI1bAkFXGtsG2w6x
    • Grip the motherboard by its edges and pull it out.

  14. UHLCGNJLJ32yNEdV
    UHLCGNJLJ32yNEdV
    pEtoQPVP1QanmQpD

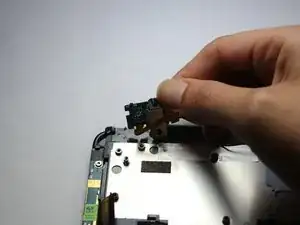

    • Remove the single 2.5mm Torx T5 screw.

  15. WALtWKHIqrSHLjii
    WALtWKHIqrSHLjii
    J2RnBJMSGNSI4lDg

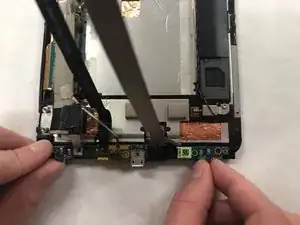

    • Remove lower flex cable and LCD flex cable. They are attached and will be removed as one piece.

  16. VxhTIdRBnXJt23ui
    • Remove the single 2.5mm Torx T5 screw.

  17. mKfvADPdPjURWff1
    mKfvADPdPjURWff1
    bTgkgpFYrBUIEuTp

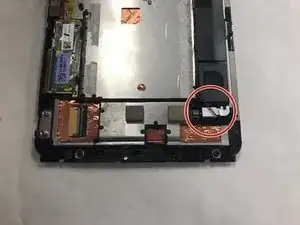

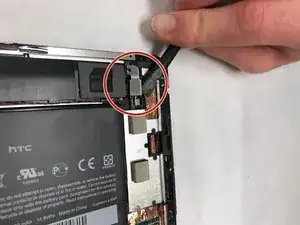

    • Lift casing away from vibrate motor.

  18. kJYrPGYtyFYDfVWH
    kJYrPGYtyFYDfVWH
    1aDiy1YLodHwJUxL
    YmXm4uB1hwRvcUyw

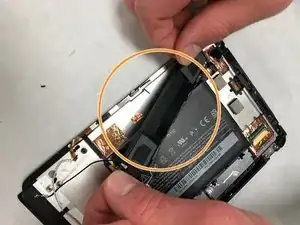

    • Lift away vibrate motor.

    • Lift away speaker assembly. They should be attached and will be removed as one piece.

  19. adAsLcHOA6JJqiRO
    • Flip tablet and use hairdryer to heat the outside edges of the screen. Heat the edges for about 45 seconds using quick arm movement with the hair dryer set to high.

    • Heat for longer if necessary.

  20. ZxlisOcvSLXHcVcs
    ZxlisOcvSLXHcVcs
    sMVtRv3qPIAYdRwZ
    ggfbFOXmYCDkVZdQ

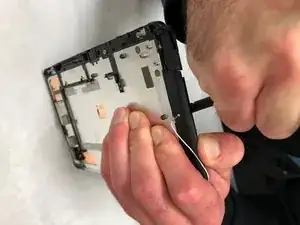

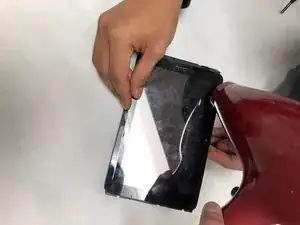

    • Release the adhesive around the edges of the screen with a safe open pry tool. Continue to reheat the adhesive as needed.

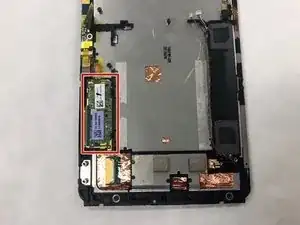

  21. TEZgQU2cTMtx6FBX
    • Slide the flex cable through the slot in the housing to its left.

  22. NlhWrHJeHuNwnxQT

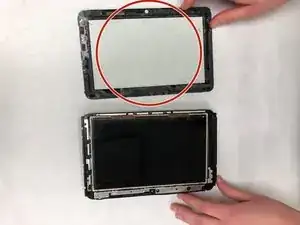

    • Fully remove the screen.

  23. OXL6cEkXBNBtZBU1

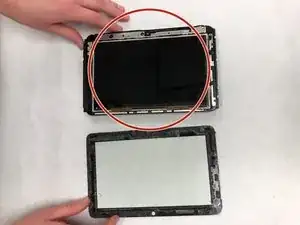

    • Replace the touch screen digitizer. It is the black rectangle circled in the picture

Abschluss

To reassemble your device, follow these instructions in reverse order.
