HTC Fortress Keyboard Replacement

Geschrieben von: Lucas David
  • Kommentare: 0
HTC Fortress Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 - 20 Minuten

Einleitung

If your HTC Fortress' keyboard is physically damaged, or doesn't transmit signals to the phone, you can dismantle the phone and replace the keyboard.

In this guide, you'll learn how to install the HTC Fortress Keyboard. This guide requires you to almost completely dismantle your Fortress, so make sure you have the proper tools and keep track of all components.

  1. LScxtHsTEIHGgTke
    LScxtHsTEIHGgTke
    fdVgjHVRCYCZfJI2

    • Remove the back cover of the device by sliding it upward.

    • You may need to remove the phone stylus first.

  2. 2BdKTMnDfnrBXlTQ
    2BdKTMnDfnrBXlTQ
    ZPInEZr4y3wErhkW

    • Remove the battery by pulling it away from the back of the phone.

  3. BjVNWNTRUDF3UOmp
    BjVNWNTRUDF3UOmp
    6VcQpKVj42DLwsof
    gCSpPZbZG2OlOH36

    • Insert the stylus into the small slot.

    • Use the stylus as a lever to push the sim card out of its fitting.

    • Use your finger to slide the card out the rest of the way.

  4. wCokEuytBaCCdQZd
    wCokEuytBaCCdQZd
    Mgs1mb6FoXDQgeAu

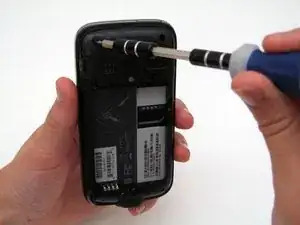

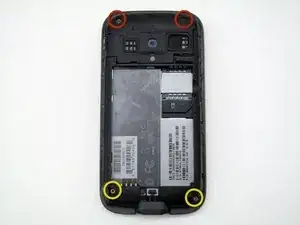

    • Remove the two 4mm-long screws using the T4 Torx Screwdriver.

    • Remove the two 3.5mm-long screws using the T4 Torx Screwdriver.

    • Keep the 4mm-long upper screws separate from the 3.5mm-long bottom screws. They are different!

  5. 32eD3F4WvCITaHf2
    32eD3F4WvCITaHf2

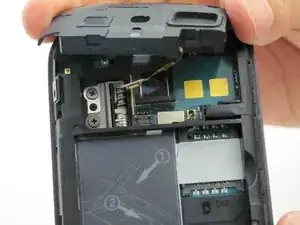

    DCnRxWvtydTHwhOO

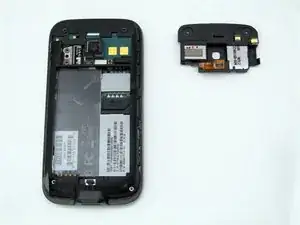

    hyelIOIHoCR2qYRi

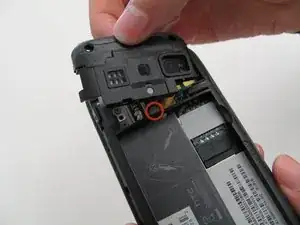

    • Remove the camera panel by hand (black cover above the battery slot).

    • Be careful, there is a cable attached underneath the camera panel.

    • Gently pull the camera panel away from the phone to detach the cable.

    • During reassembly, reattach the cable by holding the silver-plated ending slightly above its slot and using the spudger to gently press it into its fitting. Then, insert the camera panel so it is flush with the back panel again.

  6. CfPQES4Jdkfvn3Vb

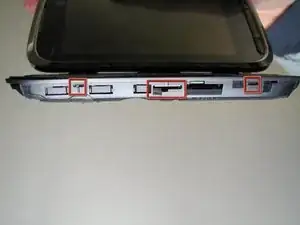

    CfPQES4Jdkfvn3Vb
    NOdKSAfX1GPRIKQg
    mvFY64WTRZf6bmKR

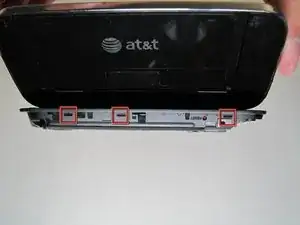

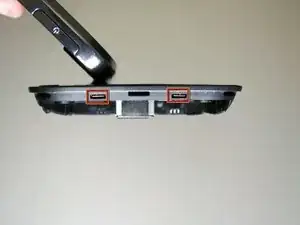

    • Notice the 8 small clips around the perimeter of the phone shown here...

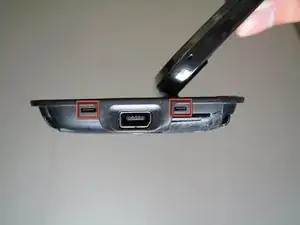

  7. YIPwQaYTPGUd2UFK
    YIPwQaYTPGUd2UFK

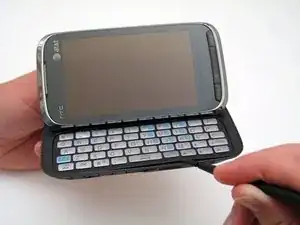

    Uxp3YS3CjGnMgcRA

    • ...and the 2 clips shown here.

    • Insert the spudger into the seam along the edge of phone, and gently pry the back panel from the keyboard. Follow the seam along the perimeter of the phone.

    • Only pry right next to the clips shown in the above step, as well as the clips next to the charging port.

  8. 2xCmM6RQc1VAXffO

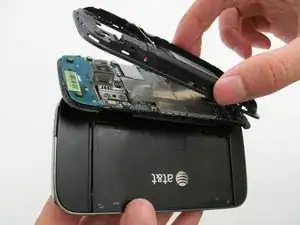

    2xCmM6RQc1VAXffO

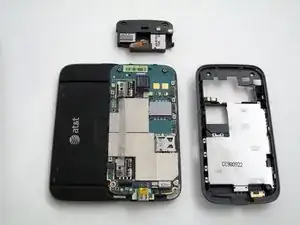

    OJGthgo11M1NkaEv

    • Remove the back panel by pulling it away from the phone.

    • Slide the panel downwards as you remove it, making sure to clear the charging port.

  9. l5cdTK5WhYXFckc5
    l5cdTK5WhYXFckc5
    cpGeODrBOxPOOckW
    5Qs6pVDALMYWLnBa

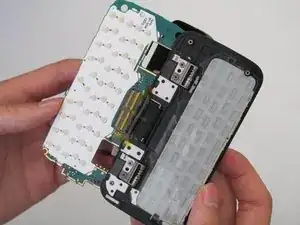

    • Gently pry the motherboard (the green panel) off with the spudger.

    • Be careful; the motherboard has a cable attached to the back and should not come all the way off of the phone.

    • Flip the motherboard over, as if you are turning a page in a book, so that it rests on the back side of the screen.

  10. soKCRPbcsHffbtPy

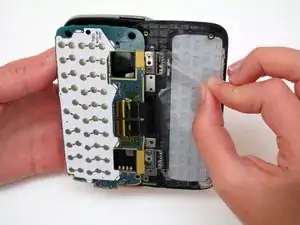

    • Gently peel the clear plastic keyboard backing off of the keyboard. It is attached to the keyboard by a weak adhesive.

  11. UZELuoxRwSjPuOB2

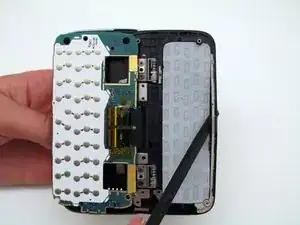

    UZELuoxRwSjPuOB2
    sAflZ6SFFjXjJKSC

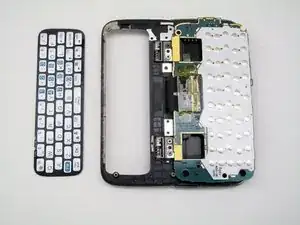

    • Push the keyboard away from the frame of the phone, working the spudger between the keyboard and the frame.

    • There is an adhesive strip holding the keyboard to the frame; make sure that the spudger is between the adhesive strip and the frame, rather than the adhesive strip and the keyboard.

    • Slide the spudger around the perimeter of the keyboard until it is completely free from the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
