Do you have a hard time turning on/off your phone? This guide will show you how to replace the power button.

  1. TxkmXm1RNU4xW3aP
    TxkmXm1RNU4xW3aP
    HSVEOFopmbrXlbgQ
    • Press your thumbnail into the slot between the rear panel and the front casing located on the bottom of the phone. Use a penny or dime if you have trouble using your thumbnail.

    • With a moderate amount of force, pry the rear panel up and away from the phone. You may need to slide your thumbnail up the crack to separate the rear panel from the front casing.

    • This can take a little bit of effort. Don't be discouraged if you can't get it right away.

  2. lAMVa2SFCBZJ3Bkq
    • Remove the rear panel from the phone.

  3. xbP1LvYVpdQnLYD2
    • Press your fingernail into the slot between the battery and the rear inner frame, located between the battery and LED lights.

    • Use a penny or dime if you can't use your fingernail.

  4. UqqYmecXLgZFsOLK
    UqqYmecXLgZFsOLK
    gZISikgiLfIXO5OZ
    • Gently lever the battery up and away from the lights.

    • Lift the top of the battery up and remove the battery from the rear inner frame.

  5. JRCN3sBDATNGIaUc
    JRCN3sBDATNGIaUc
    tvDJsH3rWcsL1maZ
    • Apply pressure with your fingertip to the pressure clip beneath the SIM card.

    • While keeping pressure on the clip, use another finger to gently slide the SIM card down over the clip.

  6. 2WikQ1BL4QADCgBj
    2WikQ1BL4QADCgBj
    aQhUhSHOnwtV5dTR
    • Keep sliding SIM card until completely free from holding apparatus. Now remove the SIM card.

  7. VxMWBo2BHARYgEtG
    • Remove the seven 1.42 mm Torx T5 screws

  8. mrhlmwMDZDQQZMcN
    mrhlmwMDZDQQZMcN
    AmsaVGchximqhMyN
    • Use a plastic opening tool to run along the phone's side and lever mid panel upward.

    • Apply minimal pressure as the mid panel is very delicate.

  9. wZbYDdtNfcWJaKeK
    • Gently grasp and carefully lift mid panel up and away from the device with your fingers.

  10. e52EwhVBSduilYjM
    e52EwhVBSduilYjM
    OBBg3y2VLAtFPcKq
    fXfBhevgv2itkX5r

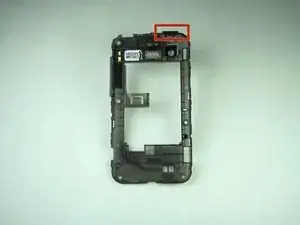

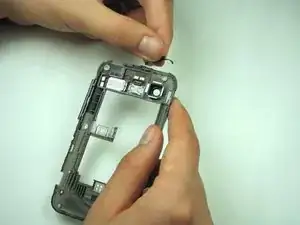

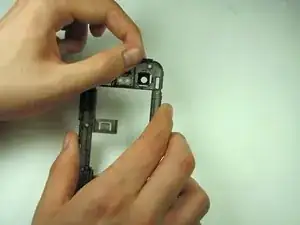

    • Firmly grasp the power button, located on the upper right corner of the mid panel, and gently lift it up and off the mid panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
