HTC Inspire 4G Speaker Replacement

Geschrieben von: MOHANAD
  • Kommentare: 0
HTC Inspire 4G Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

  1. hTQEUGDKRdknSL5p

    • Use a plastic opening tool to take off the rear panel.

  2. S6EWFsepoCul6JQP

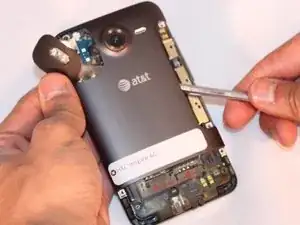

    • Use a curved metal spudger to remove the rear panel.

    • Always try using a nylon spudger or plastic opening tool first; metal spudgers are not ESD-safe and can potentially damage your device.

  3. xCEteKejAvfTPQNJ

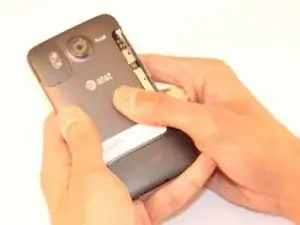

    • Push up to remove the back cover.

  4. 1oXPjZ4C2vGTPQaN
    1oXPjZ4C2vGTPQaN
    ELRPDSDymi2GqO6U

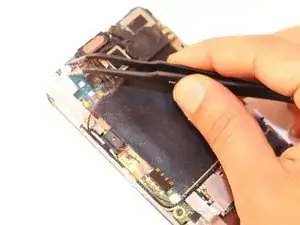

    • Remove the earpiece speaker connector using the tweezers.

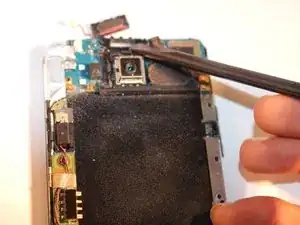

    • Pry out the speaker using a nylon spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.
