Einleitung

The HTC One camera lens cover is prone to breaking. There are a few different lens covers out there that can be used and this guide walks through the steps on how to replace it. The best option is to use the original HTC One lens assembly but the lens assembly itself is not sold separately. So its recommended to buy the "HTC One Rear Housing" on eBay, Amazon, eTrade supply or other online retailer for ~$12-20, then remove the lens assembly from this housing and use this to replace the broken lens assembly. Its actually quite easy!

The less desirable options are to use the lens replacements for the Evo 4G and HTC One X. The downside to not using the original lens cover is that the non-original replacement lenses protrude slightly from the body and are prone to getting scuffs on the glass. If a protective case is used on the phone, then the protruding glass will not get scuffed. Although its so easy and cheap to replace, if there is a problem with the lens glass getting too damaged, a new one can be put on in one minute. The lens replacements stay in well and do not fall out.

This guide walks through all the options. Also another contributor posted a video walk through:

http://www.youtube.com/watch?v=MQsPvdo2c...

  1. 5JafSuNvMdnOkhI5
    5JafSuNvMdnOkhI5
    KnG1nAJbZWEcXpTc
    23NwH4ZuEQSKJNIM
    • Find an appropriate lens cover on parts4repair.com, amazon, etrade supply, or other online sources. Reading various blogs there are a few that people seem to be using. Below are the common lens covers that are being used:

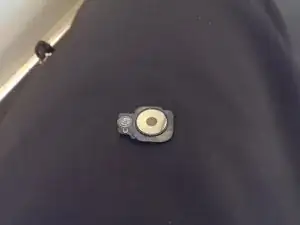

    • #1 Option: HTC One Lens Assembly

    • #2 Option: HTC One X Camera Lens

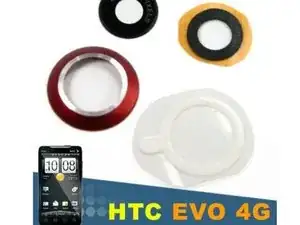

    • #3 Option: HTC Evo 4G Camera Lens

    • This guide outlines using all three and weighs the pros and cons of each

    • At the time of writing this the original HTC One Lens assembly was hard to find, but it's the best option for lens replacement. So if this is still the case then the HTC One X lens is the second best option and the Evo 4G is the third best option.

    • On Amazon, eBay, eTrade supply the HTC One Rear Housing is being sold and contained on this is the lens assembly, this can be purchased and the lens assembly removed from this.

    • The downside of options #2 and #3 is that the lens protrudes from the back of the phone and may lead to scuffing of the lens. If a protective case is on the phone then scuffing of the lens is not a concern and any of the options will work just fine

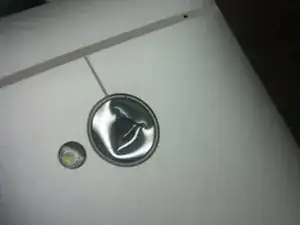

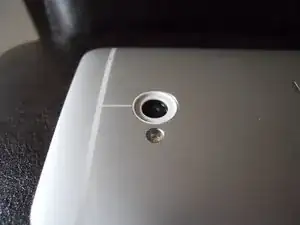

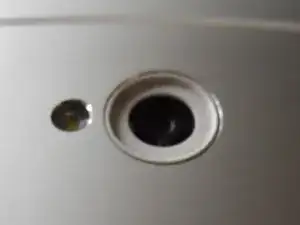

  2. dbjMY2ZrgkGxojdL
    dbjMY2ZrgkGxojdL
    sdEdoH4ZVTEXcSVB
    sroXmcyyueM4TLUR
    • Remove the broken glass using tweezers and an exacto knife.

    • If your new lens has adhesive on it, ensure you remove all the old adhesive from the frame so the lens doesn't stick out unnecessarily and so forms a tighter seal

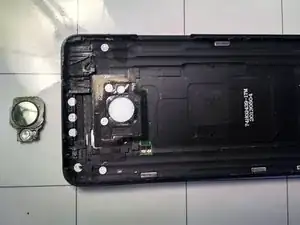

  3. 3QUQMZfv2cQq3Qhe
    3QUQMZfv2cQq3Qhe
    bQJvHUkRLDdqdHiu
    bxHdF6LCHJDUGVJi

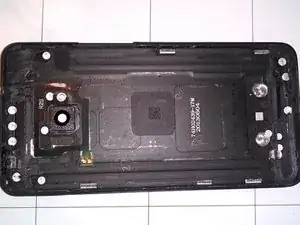

    • Shown here is the HTC One Rear Housing that I bought separately on eBay. Its recommended to buy the "HTC One Rear Housing" on eBay, eTrade supply, Amazon or other online retailer for ~$15-25 USD, then remove the lens assembly from this housing and use this lens assembly to replace the broken lens.

    • Lightly glued to the housing is the lens assembly that will be needed to replace the broken lens

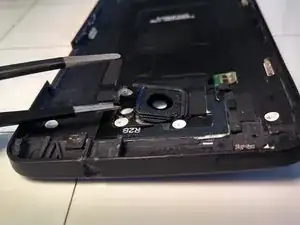

    • Using tweezers gently peel up from the side shown in the picture. Place the tweezers below the lens assembly on the camera flash side and gently pull up. It easily comes up.

    • Also, a contributor posted a video walk through: http://www.youtube.com/watch?v=MQsPvdo2c...

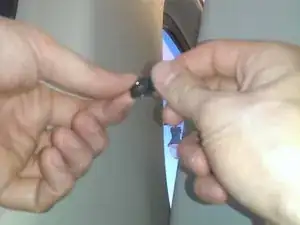

  4. WVFvMh6sgwnpbFyO
    WVFvMh6sgwnpbFyO
    Rhq5tmBGtVusRLXw
    tY3ZyQyndNPhyNkN

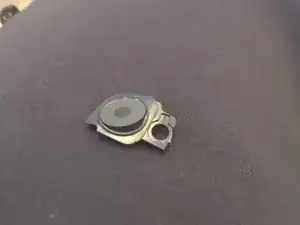

    • In order to remove the lens from the lens assembly twist the entire assembly in order to bend the plastic

    • Be careful not to break the lens

    • Peel the lens out of the assembly, it is held in with a soft adhesive

    • Another slightly different method used by "Bruce" in the comments: to remove the lens from the assembly, gently - very gently - flex the plastic housing with a little pressure on the back side of the lens using a cotton bud (q-tip) until the edge of the lens is exposed, you can then carefully use a fingernail to pry the lens free.

    • Rotate the housing with your fingernail just under the edge of the lens and it will easily pop free.

  5. k6RtFLDOEtDbRC62
    k6RtFLDOEtDbRC62
    Sk6MJOQyVvgWWfm6
    2npCTlHUeGGBsXjW

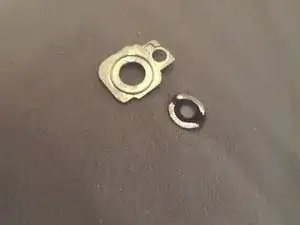

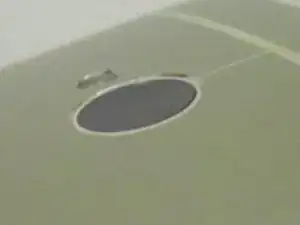

    • After peeling the lens from the assembly some of the soft adhesive is left on the lens

    • Using the adhesive that is remaining on the lens push the lens into the housing body and the adhesive will hold it in place.

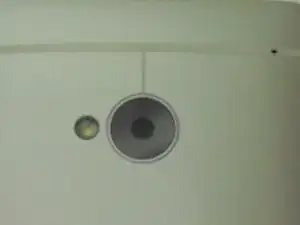

    • The Lens cover fits flush inside the housing and is the best option for replacement because it does not protrude out of the housing

  6. WocxSMQZ2WUZEQcR
    WocxSMQZ2WUZEQcR
    WeP5QYfoNGFVUBmw

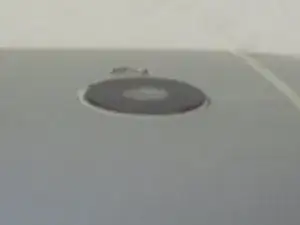

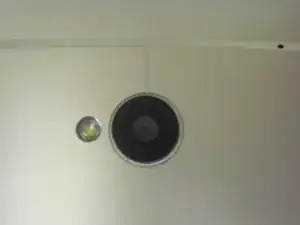

    • The HTC One X Lens replacement has the same diameter as the HTC One body and fits the hole nicely

    • The one downside is that it sticks out about a millimeter and will lead to scuffing of the lens over time.

    • If a protective case is used on the phone, then scuffing of the lens should not be a problem and this lens cover option will work just fine

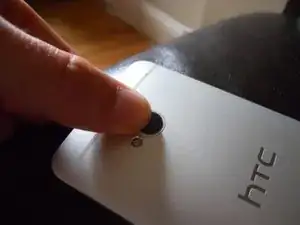

  7. CDIppQQSN66KN4VM
    CDIppQQSN66KN4VM
    BCZO64YeOOqXBMiL
    egHCxHdAJPLGimmn

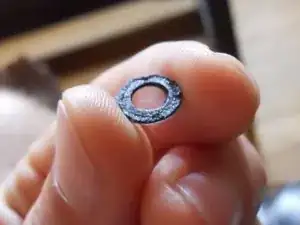

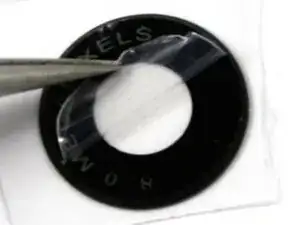

    • The third best option. The Evo 4G lens replacement has a foam adhesive on one side. Remove the release liner from this side to expose the adhesive.

    • Place the lens replacement over the camera hole. The foam adhesive will be facing down against the body of the phone and the "8 Megapixel" writing will be facing outward. Push gently against the lens replacement to make sure it adheres well to the body.

    • Remove the plastic film on the outside "8 Megapixels" side.

    • The adhesive sticks really well in my experience, it can be removed and put back in place multiple times if you dont like how it was placed originally.

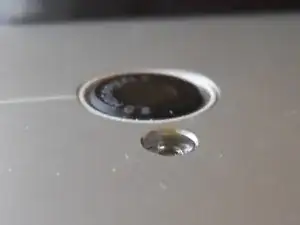

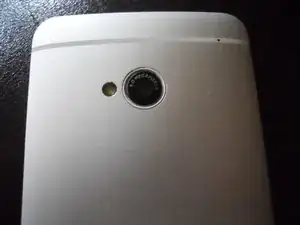

  8. TwHu5yFCPOgHOkGv
    TwHu5yFCPOgHOkGv
    fMGfBOUm3TyEaPpK
    eEghOOR53sgeXbaO

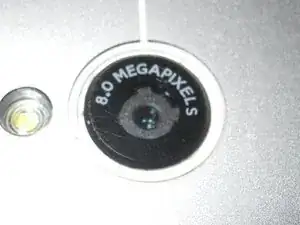

    • As you can see it does not fit perfectly and there is a small gap around the outside and the lens protrudes slightly further from the body of the phone.

    • Although the fit is not perfect, the camera takes the exact same quality photos because the light can pass through the glass lens exactly as it did with the original lens cover.

    • Because it protrudes further from the body, its prone to getting scratches.

    • I used this lens replacement for a month (before finding the HTC One lens assembly) and it stayed in place really well and did not fall out. As you can see in the bright close up image there are light scuffs on the lens cover.

    • If a protective case is used on the phone, then scuffing of the lens will not be a problem and this lens cover option will work just fine. Its just a little ugly is all.

    Tried to watch the video you posted, but it says it is private & to sign in to watch it. How can I watch this repair video? http://www.youtube.com/watch?v=MQsPvdo2c...

    Nancie Crawford -

Abschluss

Theres a number of different lens covers that might work, this guide outlines how to use three different ones

alcs99

Mitglied seit: 11/09/13

5075 Reputation

16 Kommentare

Where did you get the original htc one lens assembly?

Raph Cout -

Raph, thanks for the heads up that its still difficult to find the htc one lens assembly. When I wrote this I had hoped it would become readily available eventually, but I guess not. I updated the guide to show how to remove the original HTC One lens assembly from the HTC One Rear Housing, which you can buy on eBay, eTrade Supply, or other online sources for about $12-20 USD.

alcs99 -

How did you get the back off? I saw some video's of people having a hard time getting it of and damaging it while trying. Can you tell me how you managed to get it off without damaging?

Vivian -

The back of the phone does not need to be removed, the picture in step 3 is the "HTC One Rear Housing" that I bought separately on eBay. This piece is sold for $15-30 and you will need to buy this to pull off its intact glass lens and use this to replace the broken one.

alcs99 -

Hello! I just finished this project and videotaped it. Its not great, but it was my first time!

http://www.youtube.com/watch?v=MQsPvdo2c...

Calahan Hempe -

Great Video, I posted your youtube link into the guide

alcs99 -

Very Nice. Just did option 1. Took me 2 mins.

Nikolai Pedersen -

My lens has been broken for some time now and I had no idea that there was a fix for this. I'm so glad there is! I googled around and found this replacement lens. Is this the correct one? or an OK site? I've never heard of the site before so I'm kinda skeptical of buying from there. Thanks!

edit: http://www.parts4repair.com/camera-lens-...

I forgot the link...

http://www.rebellesociety.com/wp-content...

Ethan -

Good find on the lens cover! it's only a few dollars so order one and let us all know how it works.

alcs99 -

After quite a bit if researching, I ended up with the HTC One and to protect it I got an Otter Box protector. Bullet proof for everything but the camera lens cover I found out. Within a week, the keys within my pocket found the Achilles heel of my plan and managed to break the lens cover.

Thanks to this site, I have a new lens cover in place for the cost of a cup of coffee.

Thanks guys.

Zhiron Tune -

Got an original from Parts4repair.Com, fits like a glove, thanks for your help!!!

Your Order Contains...

Cart Items SKU Qty Item Price Item Total

Camera Lens for HTC One M7 MBRPHT1449 1 $2.90 USD $2.90 USD

Subtotal: $2.90 USD

Parts4repair.Com

http://www.parts4repair.com/

Durk Smis -

bought original HTC ONE M7 rear housing from Amazon... THese directions are awesome. Thanks a bunch.

Surya Boonphadung -

Does anybody have any advice on how to remove the lens while it's completely intact?

Julio -

Thanks, repair went perfectly using a back from etradesupply.com - excellent service from the OEM mfg.

My Ti: to remove the lens from the assembly, gently - very gently - flex the plastic housing with a little pressure on the back side of the lens using a cotton bud (q-tip) until the edge of the lens is exposed, you can then carefully use a fingernail to pry the lens free. Rotate the housing with your fingernail just under the edge of the lens and it will easily pop free.

Bruce -

Thanks Bruce for sharing your method! I went ahead and added it to the guide

alcs99 -

Bought a replacement "glass" off ebay. Turned out to be the usual Chinese plastic fake - not really transparent and easily scratched.

Then I found the solution - 10.5mm x 0.8mm "watch glass flat mineral crystal" on ebay which is not only clear but being real glass, is very scratch resistant http://www.ebay.co.uk/itm/191084026074 . Currently I am using the glass without a black masking ring (which I think is cosmetic) but I could paint one on if it needs it to block stray reflections. At 0.8mm thick the glass sits flush on the back of the 'phone if you clean out all the existing glue and fix it with a thin coat of impact adhesive (taking care that none goes into the camera).

leskaye -
