HTC One Front Panel Replacement

Geschrieben von: Jeremy
  • Kommentare: 1
HTC One Front Panel Replacement

Schwierigkeitsgrad

Very difficult

Schritte

13

Zeitaufwand

10 Stunden

Einleitung

If you have a front panel problem as stated in our troubleshooting page (HTC One M7 Troubleshooting) then this guide is for you. Also, this covers everything within the phone because it is the first and last step of tear down.

  1. HFvUspwAb16AgRHf
    HFvUspwAb16AgRHf
    GeHsLwgKDGgCxuLL

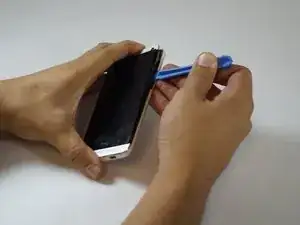

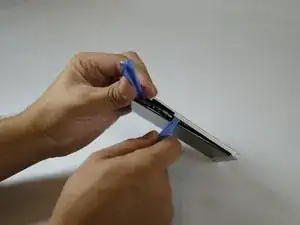

    • Use the plastic opening tool to scrape and loosen the adhesive from the crease surrounding the screen.

    • A good place to start is the volume button and it should come right out as you pry.

  2. YMldII6KCMlQ3cG3

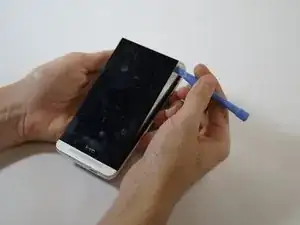

    • Wedge the plastic opening tool into the crack around the screen on the top, left and right sides.

    • This step can be sped up by using a heat gun or iOpener to heat up the glue.

  3. JSdWJ5ZheAZXLZyD
    JSdWJ5ZheAZXLZyD
    aJvXZNQPSpoVdSBu

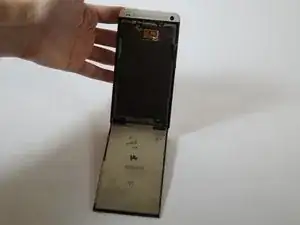

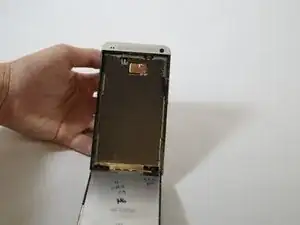

    • Once the screen has been loosened on the top, left and right edges, lift the screen.

    • The screen will stay on a hinge until the final step.

  4. K1wrYLNCMQnljYQZ

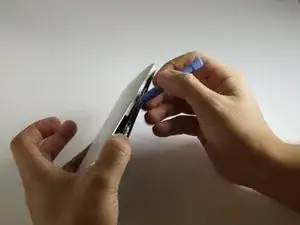

    • Gently remove the volume button. Using the plastic opening tool, loosen the back panel of the phone. Begin in the space where the battery was and work around the phone, following the crease of the back panel.

  5. DmvvbmTqm3iLfMAZ
    DmvvbmTqm3iLfMAZ
    QA1WqSIQYC4btnT6

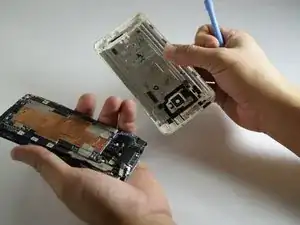

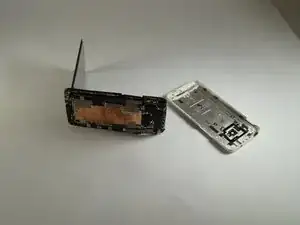

    • Pry the back open once loose and lift. The back panel will come off with time.

  6. vhVfFRwMSYDMxHIP
    vhVfFRwMSYDMxHIP
    GG2H6NOIsAjFQtWF
    NHEIZCPMv5QXQpDr

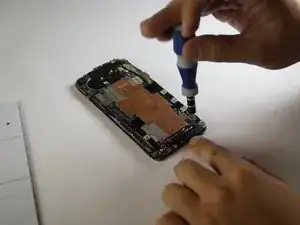

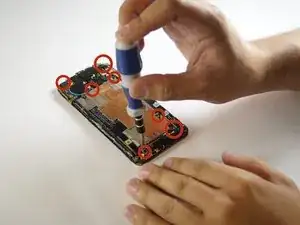

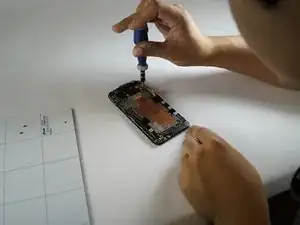

    • Remove all the #000 screws with a #000 Phillips screw driver

    • Some screws are hidden by tape so remove the tape and check for screws.

  7. OGsO1G4YVG5BPkN2

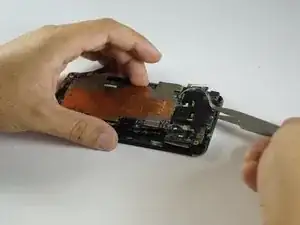

    • Use the tweezers to get underneath the mother board to lift.

    • Lift slowly because it is not fully disconnected yet.

  8. mJ5bmOvF5aUv6vom
    mJ5bmOvF5aUv6vom
    KWb6AbtnTZqelbgG

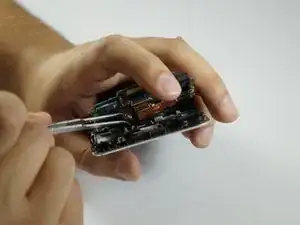

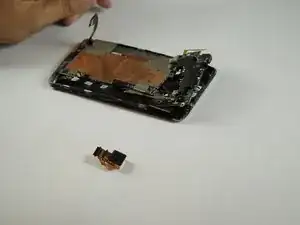

    • Remove the Camera by detaching the box from the frame (you will have to rotate the metal piece on the box to remove it).

    • Lift the camera out of the motherboard.

  9. gUW56cigwIpw3QLL
    gUW56cigwIpw3QLL
    NOlDFUa6TkjthcB2

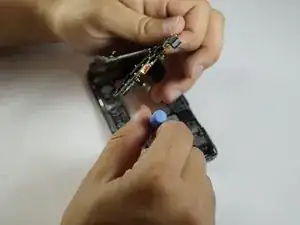

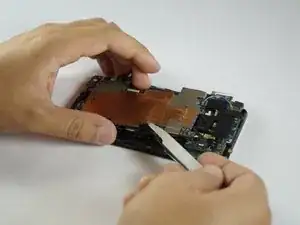

    • Lift the motherboard completely out of the phone. (may stay attached at the bottom by tape)

  10. MUNCwdtKGIqxZvDo
    MUNCwdtKGIqxZvDo
    Pqna3b2pyGTltlQE

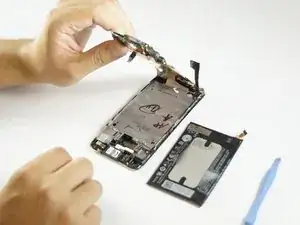

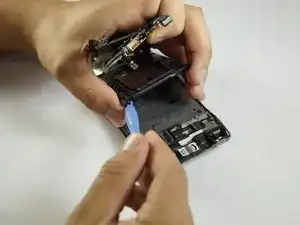

    • Use the blue opening tool to pry up the battery from the frame.

    • The battery is glued to the frame so you will have to put force.

    • Do not break the battery upon removal.

  11. KrMp3yXGcM14r1VL
    KrMp3yXGcM14r1VL
    ouR6YOwCvKRKBAT5
    AJCF6ydRGb1NF1o3

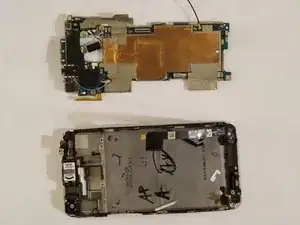

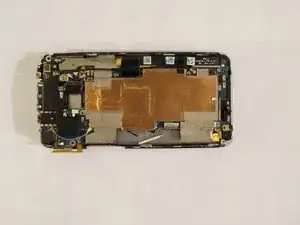

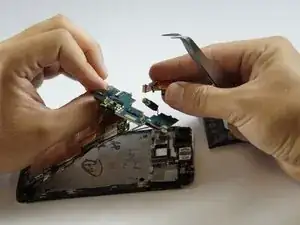

    • Remove the motherboard entirely if not done on step 9.

  12. pgVGk3umbHguRxAi
    pgVGk3umbHguRxAi
    ARrNFemfdRKpFgUh

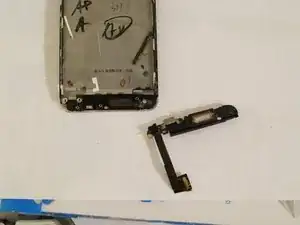

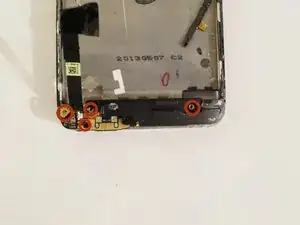

    • Remove the screws in the speaker at the bottom of the frame.

    • Lift the speaker out of the frame.

  13. bBkJOtobIcjwGxqF

    • Lift the screen out of its hinge.

    • Replace the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
