HTC One Max Microphone and Speaker Assembly Replacement

Geschrieben von: Andrew Keller
  • Kommentare: 5
HTC One Max Microphone and Speaker Assembly Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

40 Minuten

Einleitung

You will learn how to replace a faulty microphone on an HTC One Max in this guide.

  1. AytLrYWfvJRKabyk

    • Lift back cover while pressing highlighted release switch towards the center of the phone.

  2. 6AmfRREs4UXLQcN5
    6AmfRREs4UXLQcN5
    HfDK6TsC2ByZBFgp

    • Remove the four white stickers in each corner that cover the Tri-Wing screws.

    • Remove the white sticker near the buttons that control the volume.

    • Remove the white sticker near the SIM card.

    • Remove the big white sticker with the bar-code in the center of the phone.

  3. 4Jok4GF1ltViZkIH

    • Remove the thirteen Tri-Wing Y00 screws (Upper & Lower screws are 5 mm length, middle screws are 3.8 mm length) from the back case.

    • Disconnect the cable near the volume buttons.

    The orange circle in line with the 4 other red circles down the RH side (as shown) in the photo should be red also, as this shows a screw, not the cable (which is by the volume buttons).

    Huey Smith -

    Hey Huey,

    Nice catch! This has now been fixed.

    Geoff Wacker -

  4. QWw2FyeaaOerHlLT
    QWw2FyeaaOerHlLT
    Y1ThkFVdSWylBjFM

    • Use the small plastic opening tool to pry between the screen and the rear case.

  5. i1vrm2byAZqRViRD
    i1vrm2byAZqRViRD
    r6kk6LGcAsBstTgw

    • Use Tweezers to disconnect the ribbon cable connecting the fingerprint sensor to the motherboard.

    • When replacing the fingerprint sensor, make sure the ribbon cable snaps into the port on the motherboard.

  6. Z1rThtK4oM534Jpq
    Z1rThtK4oM534Jpq
    DVk6bcJLLXCnEd1M

    • Remove the two 2.2 mm Phillips #000 screws holding the battery cable.

    • Use a plastic tool to remove the ribbon cable.

  7. IE6PQLuDOKYuOfWM
    IE6PQLuDOKYuOfWM
    Eu5iTbAHFlIw2AAP

    • Use the plastic opening tool to disconnect the two antenna wires at the top of the phone.

    • Use the plastic opening tool to disconnect a third antenna wire at the bottom of the phone.

    Where can i find a replacemt ir blaster?

    yuuki1942 -

  8. AXKZPkQdAhsVpdRM

    • Remove the seven 3 mm Phillips #000 screws from the motherboard.

  9. x2clduunpBlUCcAF
    x2clduunpBlUCcAF
    ly6QbMoVC4sDIGla
    JeyvDRKPyfdMRk2I

    • Use a plastic tool to pry up and disconnect the large ribbon cables on each side of the motherboard.

    • Use caution prying the ribbon cable on the right side because other ribbon cables run under it.

  10. 1rMvOfbRtda36HQQ
    1rMvOfbRtda36HQQ
    TsnNmkSY4jHB1gQx
    BQGPJkMlUkTT3hYA

    • Remove the tape covering three flex cable gate connectors on the bottom left side of the phone.

    • Use small plastic opening tool to pry open the latch on each of these gate connectors to disconnect the three cables.

    • Use small plastic opening tool to pry open the latch on each of these gate connectors to disconnect the three cables.

    What does the orange circle refer to, as the text is a duplicate of the red circle description (and the highlighted item isn't connected with the three gate connectors)?

    Huey Smith -

    I think the orange circle refers to a 4th gate connector which needs to be disconnected.

    Huey Smith -

  11. aIQaOSCt5ryFODHc
    aIQaOSCt5ryFODHc
    WJTTSrb5mnLNTEPX

    • Use a plastic tool to lift and remove the motherboard.

    • Use a heat gun to loosen adhesive at bottom if needed.

  12. YfE1IxfLDOkqwYKA

    • Remove the two 2.8 mm Phillips #000 screws from the metal plate near the bottom of the phone.

  13. j4eXBjtGwcHoF2va
    j4eXBjtGwcHoF2va
    XfuwAGlEyADRQHmm

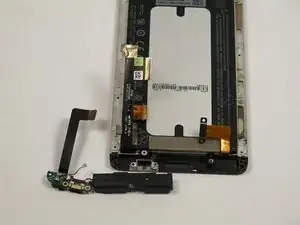

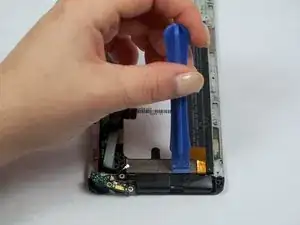

    • Use the small plastic opening tool to pry back the speaker and microphone assembly from the bottom of the phone.

    • Be careful to not to damage the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
