HTC One Mini 2 Dual Speakers Replacement

Geschrieben von: Tad Steiner
  • Kommentare: 9
HTC One Mini 2 Dual Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

25 - 35 Minuten

Einleitung

This guide is for replacing the top and bottom speakers, which HTC calls the dual speakers. Make sure you have a good area to work and plenty of time.

  1. OeyAPMOEMCLtrSkR
    OeyAPMOEMCLtrSkR
    IaTfp31Lk5ToNI54
    s1gCHGvWYQm2JDJC

    • Insert the end of a paper clip into the holes on each side of the phone to eject the SIM card and Micro SD card.

    • Set the cardholders aside.

  2. tHuoTNhBYojoYE36

    • Heat up the top grey speaker plate with the iFixit iOpener for two minutes.

  3. en4MD52Aqj34NDvS
    en4MD52Aqj34NDvS
    Dm6b4KuFMOHZpAUH
    gWxJpmJXTbDvUtKB

    • Use a metal spudger to pry up the left edge of the upper grey front plate.

    • Place the spudger between the inside white plastic edge and the grey plate. Do not pry between the two white plastic frames.

    • Don’t pry against the glass. Pry against only the left side as there is a delicate antenna under the plate.

    • Use the narrow plastic pry tool to carefully separate the black ribbon antenna from the grey plate.

    It’s not necessary to remove the grey plate all the way, just enough to get access to the screw on the left side for step 4.

    Kevin -

  4. LOCRSZZWM46fQR4q
    LOCRSZZWM46fQR4q
    AHuMPyRx2TII1xRF

    • Remove the 2mm screw with a T5 torx screwdriver head from the iFixit tool kit.

  5. pQDp1wxZLXrNAcUj
    pQDp1wxZLXrNAcUj
    slt3ivsd1L2AQZND

    • Use the plastic pry tool to pry around the edge of the phone.

    • Pry carefully around the card slots.

    • Slowly pull up from the right side of the screen like opening a book.

    • The plastic piece for the power button may fall out. Set it aside for reassembly.

    • Use the plastic spudger to peel the foam adhesive around the camera away from the back plate.

    Only open the back enough to gain access to the foam adhesive around the camera. If you open too much before separating the camera, you will rip the ribbon connector apart & the camera will never work again. Thank you !!!

    grastroud -

    Is there anything else that can destroy the camera?

    I was careful and did not think that I destroyed anything, also there is no damage visible. But the camera doesn’t work, I cannot even switch from front to main camera. Any idea or hopeless?

    sonnysoni -

    If the plastic power button falls out of the case, ensure that it is replaced the same way round. The small circular part which actually operates the switch is slightly offset & nearer the middle of the phone.

    grastroud -

    Once the back is pried enough to reach inside, you can use the plastic spudger tool to reach in and pry the sides of the square camera body away from the back of the case. You are trying to protect the camera body, and the ribbon cable that connects it to the main board, by carefully separating the adhesive around the sides that fasten the camera body to the hole in the back cover of the phone.

    ken -

    There are several plastic clips around the perimeter of the phone. I found it easiest to unclip the one right blow the volume button first, then work down the right side of the phone (two more on the side, one at the corner) then work up the right side (one at the upper right corner) then along the top and bottom.

    Kevin -

    To help remove camera adhesive, I found heat useful.

    Kevin -

    Hi all ,I didn’t apply enough heat removing the grey front panel and the ribbon anntena is ripped.

    I should have left it double time as its cold here .Is there a replacement for sale somewhere ?

    Is this easy to replace is my next question.

    Geoff -

  6. vjjhyRG5lTfC6FMt
    vjjhyRG5lTfC6FMt
    lIDakcCiFZREPwGO

    • Peel off the long yellow pieces of tape on the right and left side of the copper plate.

  7. TKGCRqYMTwDmVXdQ

    • Starting from the copper plate, peel up all three woven, silver colored tapes using the spudger or narrow pry tool.

  8. 5fQvFUVUMmNi3eVM
    5fQvFUVUMmNi3eVM
    YJGcOLU5oLQwRwUV
    lUOkLkMBwyMCKw5O

    • Using the flat end of the spudger, pop up the white tabs on all ribbon cable connectors located to the left and right of the copper plate.

    • On the left side, pop the white tab up to the left. On the right, pop up to the right.

    • Carefully pull out the ribbon cables.

  9. VvlbOrGFr2YmECgM
    VvlbOrGFr2YmECgM
    QIGdV6NmMhT6FfQ1
    FJvNZfS6SmNEfLul

    • Using a Phillips #00 screwdriver, unscrew the two 1 mm screws from the bottom right corner of the motherboard that hold the power connector down.

    • Pop up the battery connector using the flat end of the spudger.

  10. yZFLMuyvCkTbBXLv
    yZFLMuyvCkTbBXLv
    FvfOJFlVdSmuVxVm
    MEccqTQU2IlbyQ6x

    • Use the pointed end of the spudger to pop off the four antenna connectors. Three are located on the top left corner of the motherboard and one on the bottom right.

    FOR HTC ONE REMIX (VERIZON) There's an extra antenna on the lower left of the MOBO, just above the braided red & black cables. Pop it off.

    Kevin -

  11. oCCLpFqhLsLpAXdc
    oCCLpFqhLsLpAXdc
    hh4hMJIZ21lDD1bR

    • Using the pointed end of the spudger, pull the wires for the rumble motor to the left to pull the connector out of the board.

    • The connector is very small and easy to break so take caution when pulling it out. Wiggling the wires as you pull to the left helps.

  12. xvIdFcJxvymp5oyO
    xvIdFcJxvymp5oyO
    wRyQ42TAJaaUjBOD
    KPqwy2CXUCPPD6aQ

    • Using a T5 torx screwdriver, remove four 2mm screws from the four corners of the motherboard.

    • Once the screws are removed, carefully pull the copper plated motherboard out.

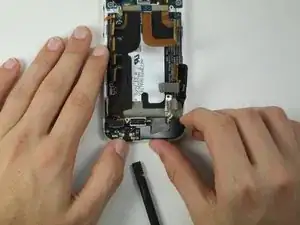

  13. J1wxXhj3YMfK1TfT
    J1wxXhj3YMfK1TfT
    ZRMa5dWfgw45FEOK

    • Use the flat end of the plastic spudger to pry the lower speaker out.

    • Holding the phone, pull the speaker to the right pulling the connector out of the board.

    • The connector is very small and easy to break so take caution when pulling it out. Wiggling the wires as you pull to the right helps.

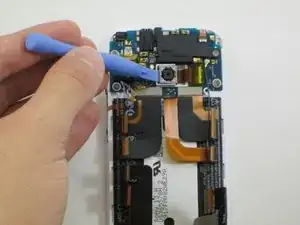

  14. ZeLOpaQeGMqAnbPJ

    • Using the narrow pry tool, pry the rear camera loose from the frame.

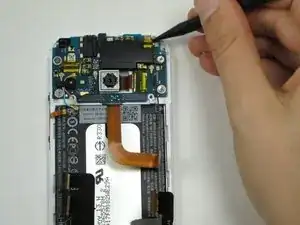

  15. B5ARy6114UpQytL1
    B5ARy6114UpQytL1
    6yMPjIZf1bVW4RHm

    • Peel off the yellow tape covering the power button connector using the pointed end of the spudger.

    • Pop up the white tab on the ribbon cable connector for the power button located on the top right of the phone.

    • Carefully pull out the ribbon cable.

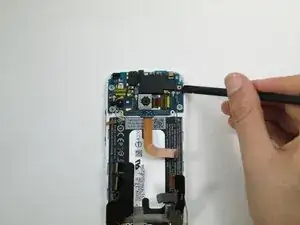

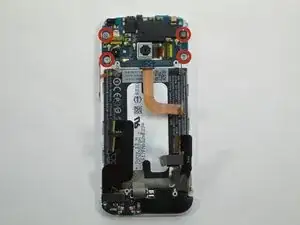

  16. mURscNKuPQrxCDKI
    mURscNKuPQrxCDKI
    QELlMLMSsCbMcY1d
    efeWWoOFFOZFXsFK

    • Using a PH000 Phillips screwdriver, remove the four 1mm screws from the upper logic board.

    • Using the flat end of the spudger, pop the top speaker's plastic cover off.

    • Lift out the board with the camera and set it aside for reassembly.

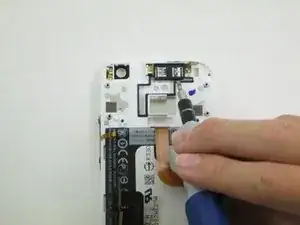

  17. 2MsO36L2dIMhPDKE

    • Using a 2 mm flat head screwdriver, pry out and remove the top speaker from the phone.

    • It is easy to pry the speaker apart rather than pry the whole thing out. So be careful to only pry on the metal plate and not the plastic siding of the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
