Einleitung

If you have an issue with your speaker as stated in our troubleshooting page ( HTC One M7 Troubleshooting ) then this guide is for you.

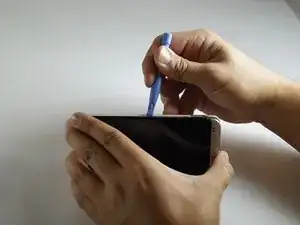

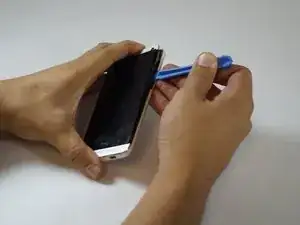

  1. YSCOjpErofdRFFcB
    YSCOjpErofdRFFcB
    EGqewDlge1EyJuHr
    AdlPMAcf4afOgJb4

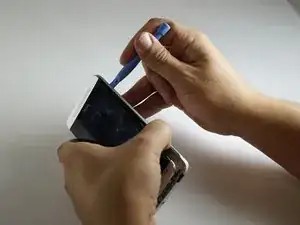

    • Gently remove the volume button. Using a plastic opening tool or guitar pick, loosen the back panel of the phone. Work around the phone, following the crease of the back panel.

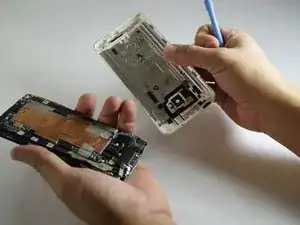

  2. pjn66rshyHQQIetD
    • Pry the back loose and lift. The back panel will come off with time.

  3. 6JpblXcfFkAPmjdT

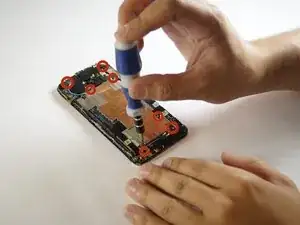

    • Remove all of the screw which are located on the backside of the phone with a #000 Phillip screw driver.

    • Remove the tape gently to find some hidden screws underneath.

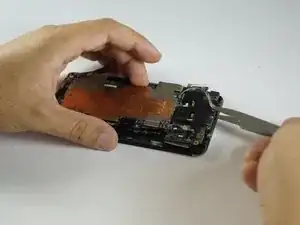

  4. WkCYYr5saFUY1PDG
    • Use tweezers to get underneath the motherboard to lift.

    • Lift gently because the motherboard is not completely disconnected.

  5. pwgdBEgZvVhY5lsd

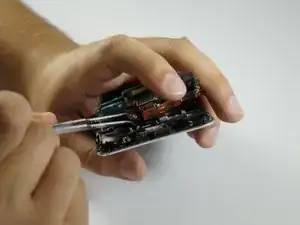

    • Remove the Camera by detaching the box from the frame (you will have to rotate the metal piece on the box to remove it)

    • Lift the camera from the bottom of the motherboard.

  6. FCTg4AMv1AldLLV3
    FCTg4AMv1AldLLV3
    2ZCO4e5JCWSUEktA

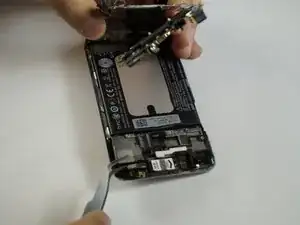

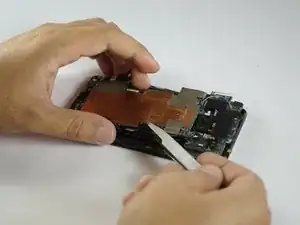

    • Remove the motherboard completely out of the phone.

    • May stay attached from one end by tape.

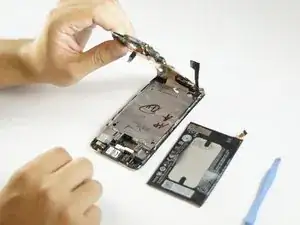

  7. bpEEdP4CV2fKHWD5
    bpEEdP4CV2fKHWD5
    xpYuZpck6GB6sBr6

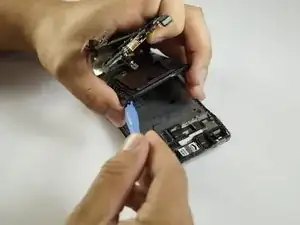

    • Use the blue opening tool to pry the battery from the frame.

    • Some force will be needed since the battery is glued to the frame.

    • Be careful to not break the battery upon removal.

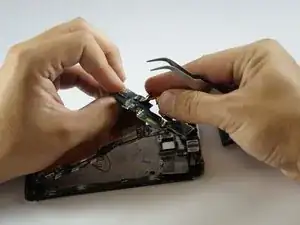

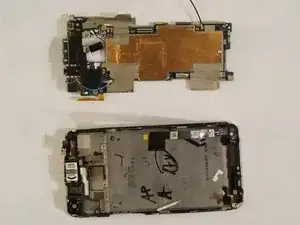

  8. BfgiNPVlDYTevEZX
    BfgiNPVlDYTevEZX
    WlXWJSiytocIjoaA
    K56bxuQv3Z1lOVj2

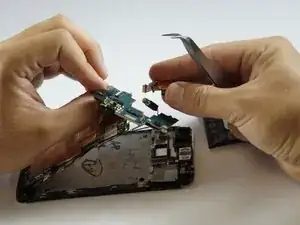

    • Completely remove the motherboard.

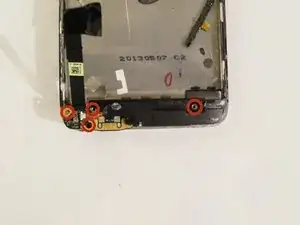

  9. LLkxdbQHrYJaCIhu
    LLkxdbQHrYJaCIhu
    BUYbKWrjte5nZtqh

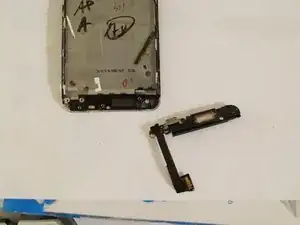

    • Remove the #000 screws around the speaker that are located at the bottom of the frame.

    • Lift the speaker out of the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
