HTC One V Loudspeaker Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

If your speaker sounds distorted or muffled, or completely does not work, a broken loudspeaker might be the problem. A new one can be installed using this guide.

  1. MQcjYMC6BnKBoYJt
    MQcjYMC6BnKBoYJt
    Je5rXV1Adi2DhA3x
    ntTTFlKZdWoVP25E

    • Power off your device.

    • Remove the bottom cover by sliding it off.

  2. kJDBcsdtUC2GEqOH

    • Remove the SIM card.

    • Remove the four screws securing the bottom casing.

    • Two 3.0 mm Phillips #0 screws in the top left and right corners.

    • Two 2.0 mm Phillips #0 screws in the bottom left and right corners.

  3. aSeFyHbjrXBMfKQH
    aSeFyHbjrXBMfKQH
    tQDmkjC4yOjsn1ZJ

    • Remove the 2.0 mm Phillips #0 screws on either side of the phone.

  4. HlnZGN56qE63SXKS
    HlnZGN56qE63SXKS
    HBDceTc5AMKMnHqn
    GohLHKBevSHkOWHx

    • Use a plastic opening tool to pry open the bottom casing.

    • Remove the bottom casing by pulling it towards you.

  5. Gvl3w1bIZIE6RSJ3
    Gvl3w1bIZIE6RSJ3
    M1SWsZXmxSZqjyjy

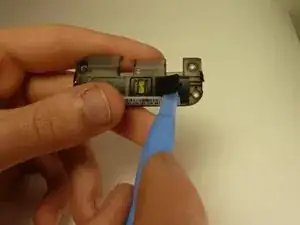

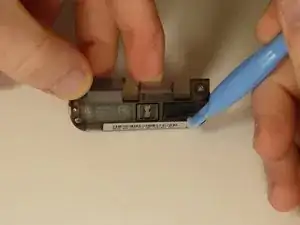

    • Using a plastic opening tool, peel off the speaker cover.

  6. DeEAxlIvubA51OrM

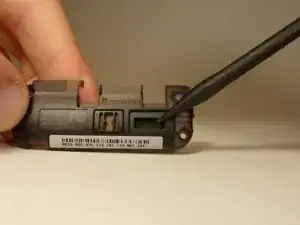

    • Use the spudger to push the speaker out of its casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
