HTC One X Plus Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

1 Stunde

Einleitung

You may need to replace your screen if it is broken or cracked.

  1. JTAot2shaLE3WKFp

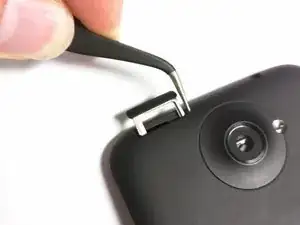

    • Power off your device.

    • Insert a pin, paper clip, or very small piece of metal in the hole next to the micro sim card holder to remove it.

    • The sim card slot is located on the top edge of the device.

  2. BEj23kGRlwZaXIkg
    BEj23kGRlwZaXIkg
    WdOKNNXC54R4aYlF
    PCIcvXv1WXtX5dat

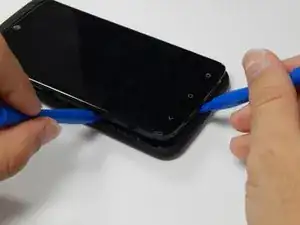

    • Using plastic opening tools, pry open the bottom of the device first.

    • You will hear clicking sounds as the sides of the device detach from the screen.

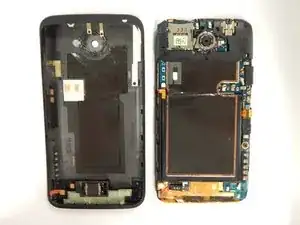

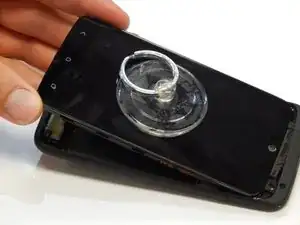

    • Once both sides are detached, use the suction cup tool to remove the screen completely from the black encasing.

  3. sOiZ4qlEaxOOGaHk
    sOiZ4qlEaxOOGaHk
    aJMvFjpZmTd1aHGa
    cMyDNCjXTVkfwCiQ

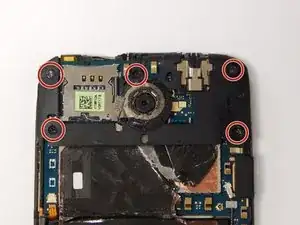

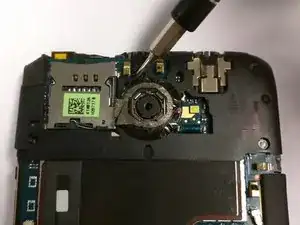

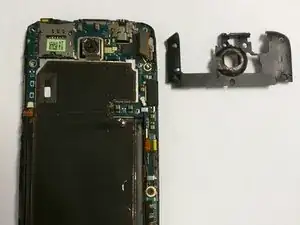

    • Remove the five 2.4 mm screws using a Phillips #000 screwdriver.

    • Remove the plastic cover.

  4. HbAm1CL3eQOMkUWn
    HbAm1CL3eQOMkUWn
    Vi33OvE3L4MSMJsR
    xgoAciPFsf1BhrPN

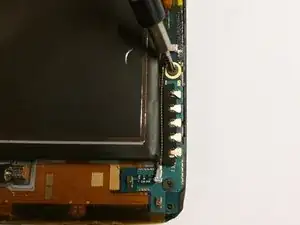

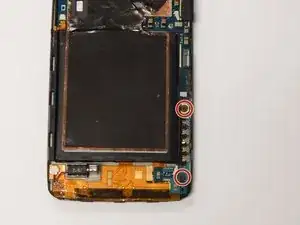

    • Use a Phillips #000 screwdriver to remove the two 3.4 mm screws.

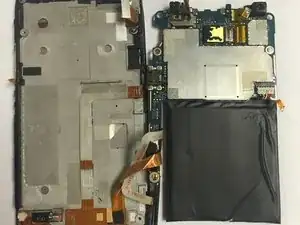

    • Remove the PCB board and antenna.

  5. duFOXZXdSyyp6TWs
    duFOXZXdSyyp6TWs
    ULX5VRBtXQNutgEI

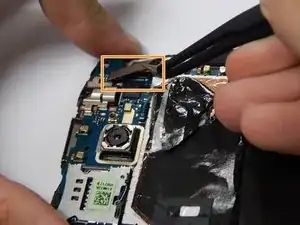

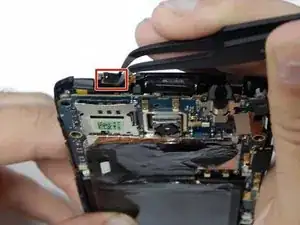

    • Use tweezers to disconnect the power button flex cable.

  6. WoItKscXvNUeE3fc
    WoItKscXvNUeE3fc
    QNUTwNXnTP6imuNQ
    sQsYPXnheIAZApKs

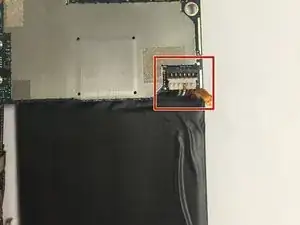

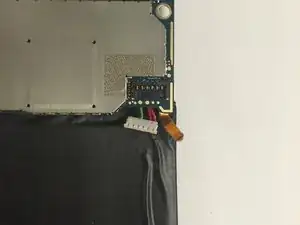

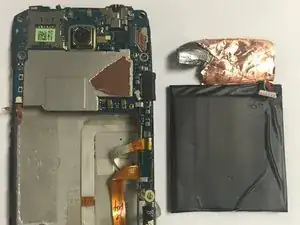

    • Disconnect the battery's six pin connector from the motherboard.

    • Remove the battery by pulling it upwards.

  7. aKoLj44vFMtTvcQp

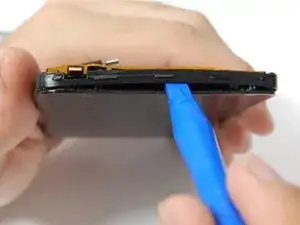

    • Disconnect the screen from the digitizer.

    • Use a plastic opening tool to gently disconnect the screen from the digitizer.

    • You may have to use heat to loosen adhesive securing the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
