HTC Ozone Keyboard Replacement

Flip the phone over to have the rear cover facing up.

The camera lens should be towards the top of the phone.

Slide the cover up, towards the top of phone, to unlock the battery cover.

Lift the cover off phone and remove it.

Use your finger to push the top of the battery downwards and lift the battery out of the phone.

Remove the six Torx #5 screws that are securing the rear frame.

Pry the frame open, releasing the eight plastic tabs around the edge of the frame, using the plastic opening tool.

Remove the single Phillips #0 screw that is securing the motherboard to the front case of the phone.

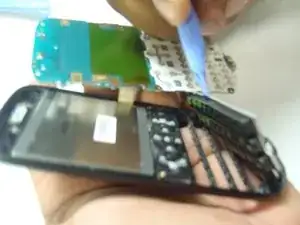

Pry the motherboard away from the front of the plastic case using a plastic opening tool.

Remove the plastic cover from the LCD display and the motherboard.

Remove the gray tape securing the ribbon cable.

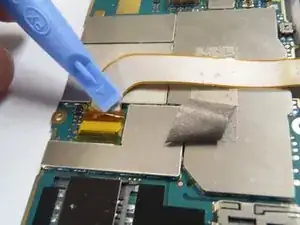

Remove the yellow tape securing the connector lock.

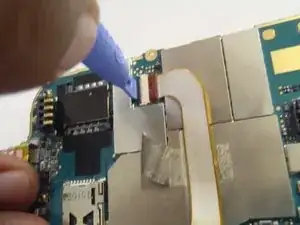

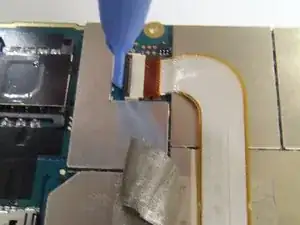

Carefully lift the black lock to release the ribbon cable, using the plastic opening tool.

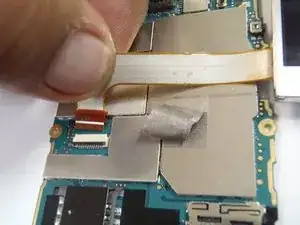

Pull the ribbon cable upwards, disconnecting it from the Motherboard.

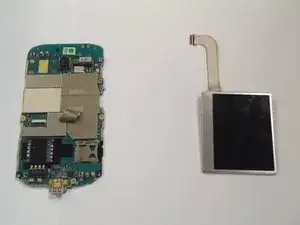

Lift the Motherboard away from the LCD display.

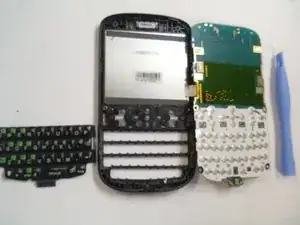

Lift off main keyboard from front plastic case using plastic opening tool.

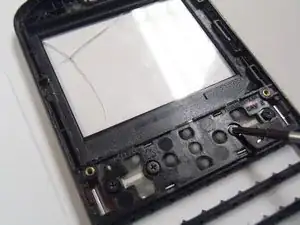

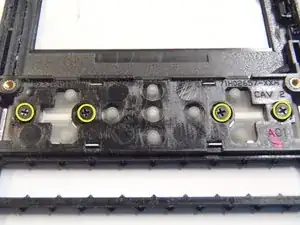

Remove four Phillips #00 screws securing function keys.

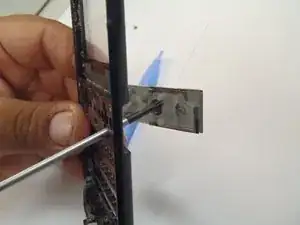

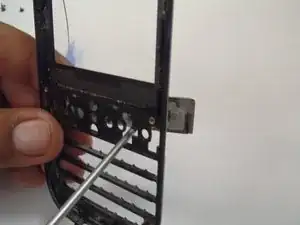

Pop keys out by pushing keys from back of the phone.
