HTC Radar 4G Touch Digitizer Replacement

Geschrieben von: Kevin Guerra
  • Kommentare: 0
HTC Radar 4G Touch Digitizer Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide shows you how to replace your HTC Radar 4G’s touch digitizer.

If your phone isn’t properly registering your touch, you might need to replace the touch digitizer, which turns your finger actions into digital actions.

  1. XYAVCmLZKNiZvpJr
    XYAVCmLZKNiZvpJr
    QISV4aH6nbHRgdq5

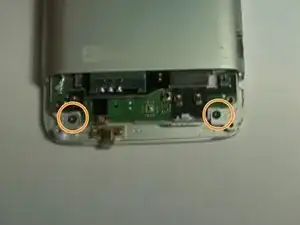

    • Slide the lower plastic panel off of the phone.

    • Remove the four screws from the white plastic cover of the phone using the T5 Torx screwdriver.

    • Remove the two black screws from the silver frame.

  2. 5BMKKpfDtnZB2RkD

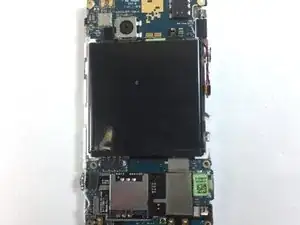

    • Remove the back cover by pressing on the back of the motherboard lightly and pulling the screen out carefully.

  3. VLeREq2eLYc2Tajk

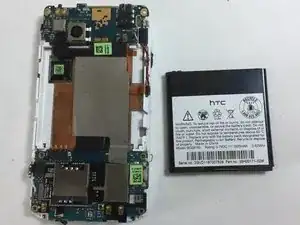

    • Remove the battery from the phone using the T5 Torx screwdriver.

  4. tpxNXlWTlTlHoYfn

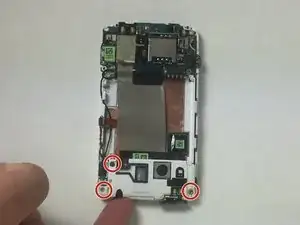

    • Remove the three screws using a screwdriver.

    • Remove the plastic frame.

  5. rtBljA21kwiV2LZ3
    rtBljA21kwiV2LZ3
    nNJbMeoElM1VJDZa
    YkHwydTNYcVScHVp

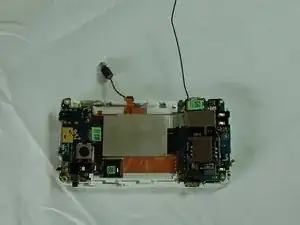

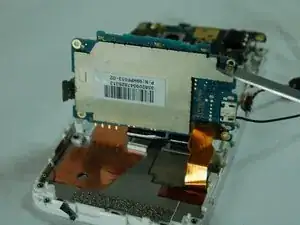

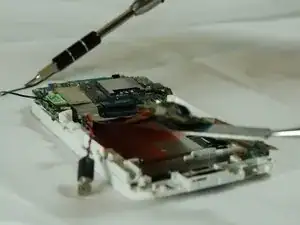

    • Remove the upper board and motherboard from the phone using an opening tool.

    • The regular black nylon spudger should be used whenever possible, especially around motherboards.

  6. RJpiipH6xAHWLlLd
    RJpiipH6xAHWLlLd
    Mmb64CaJrfIBALD5

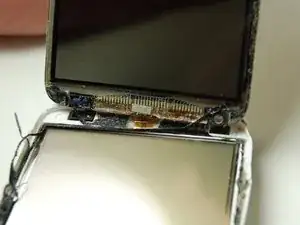

    • Use your hands to remove the touch digitizer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
