HTC Touch Camera Lens Replacement

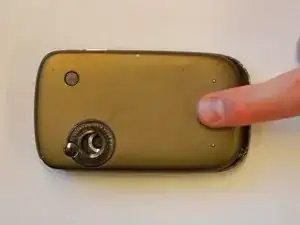

Remove the back panel by sliding it up.

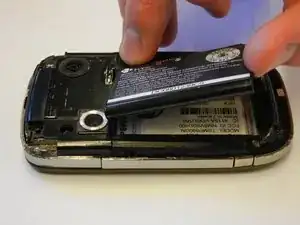

Remove the battery.

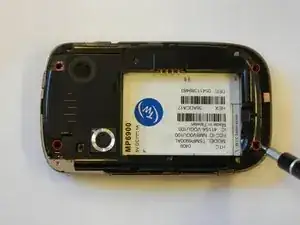

Remove the 4 torx-head screws in the corners of the phone using the T5 Torx Screwdriver.

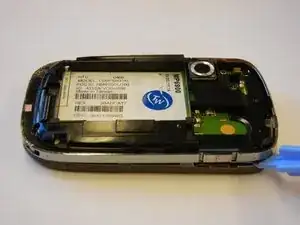

Use the plastic opening tool to remove the front panel from the phone.

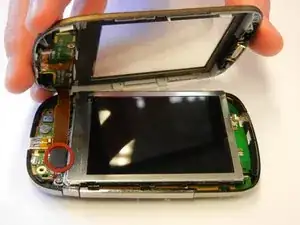

Unplug the front button cable from the inside of the phone.

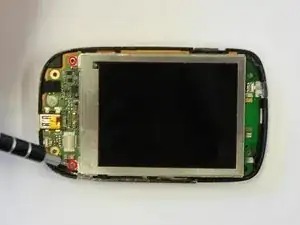

Unscrew the torx-head screws at the base of the LCD screen using the T5 Torx Screwdriver.

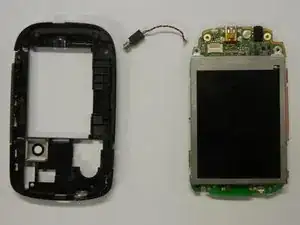

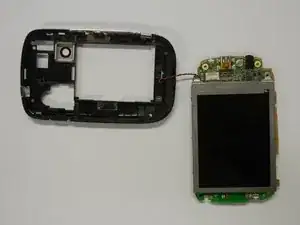

Seperate the motherboard from the black plastic casing.

Unplug the black and red wire from the motherboard.

Unplug the black and red wire from the black plastic casing.

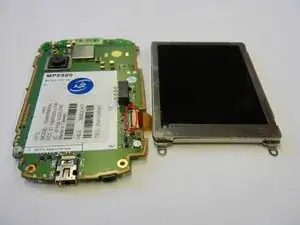

Lift the black lever next to the orange ribbon cable to remove the LCD Screen.

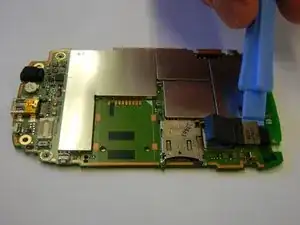

Remove the camera lens from the motherboard using the plastic opening tool.
