HTC Touch Pro 2 Camera Replacement

Geschrieben von: Melinda Phan
  • Kommentare: 0
HTC Touch Pro 2 Camera Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

4 - 8 Minuten

Einleitung

If your HTC Touch Pro 2 Camera isn’t turning on, a possible issue may be with the camera lense or film. Follow this guide to learn how to replace your HTC Touch Pro 2 Camera. This guide requires a T5 screwdriver and some tweezers.

  1. D6Y45FB1MnKmwJMa
    D6Y45FB1MnKmwJMa
    gV46MgTInt5GatNd
    CwURYqlhSsNh1tHO

    • Remove the back cover by applying pressure and sliding upward.

    • Lift the back cover up and away from the phone.

  2. gLtarj3FOvjK4jfr
    gLtarj3FOvjK4jfr
    qsh4tyO5mIv6iYCh

    • Remove the battery by lifting upward from the slot located on the right hand side.

  3. 6ddfhAlLyCmCxLbQ
    6ddfhAlLyCmCxLbQ
    PONRwBJGyLiYZsMA

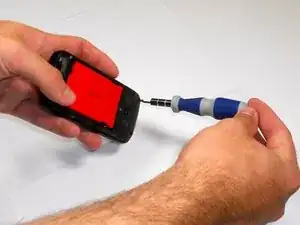

    • Remove the four screws from the corners of the phone using a T5 Torx screwdriver.

  4. PDvUghQqCSS1Tuya
    PDvUghQqCSS1Tuya
    WiYgHKMHjsRJYQA3
    Fo15WrFcX66Jpd3S

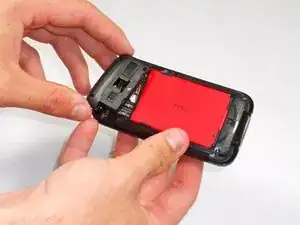

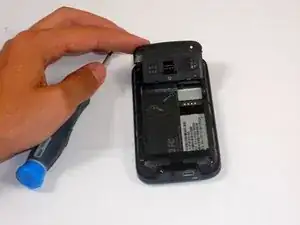

    • Lift the top segment of the phone frame off.

    • Be cautious with the ribbon on the back of this part.

  5. 4vreQQ5h5bPIxYja
    4vreQQ5h5bPIxYja
    Jf1hNStJC6BN5glM

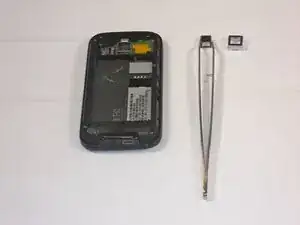

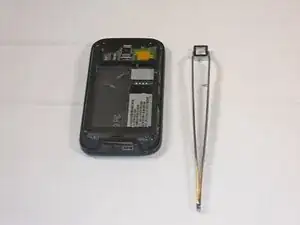

    • Use the tweezers to pull the camera cover up and away from the phone. Repeat for the camera underneath.

Abschluss

To reassemble your device, follow these instructions in reverse order.
