HTC Touch Speaker Replacement

Geschrieben von: Andrew Brooks
  • Kommentare: 0
HTC Touch Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

Warning: Always be sure you are grounded whenever handling any of the circuit or logic boards.

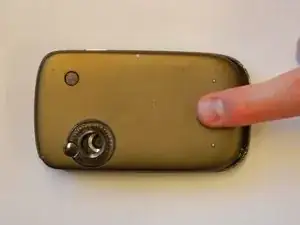

  1. FUWftHlJw6kwpG5h

    • Remove the back panel by sliding up.

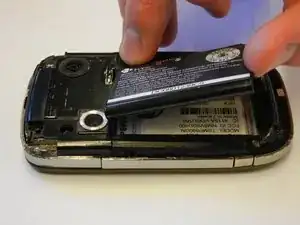

  2. QS2JOuR4heXwrKGa

    • Remove the battery.

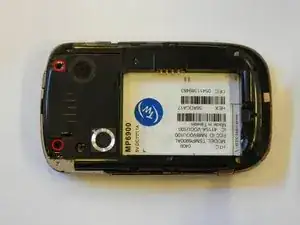

  3. DRXwDBsvObT4YNFH

    • Remove the 2 torx-head screws located at the top corners of the phone using the T5 Torx Screwdriver.

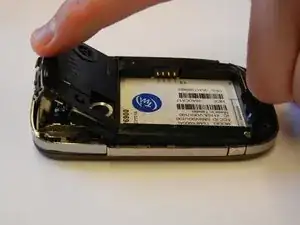

  4. JCG6LUyX6RxFJORp

    • Remove the plastic speaker casing above the battery slot.

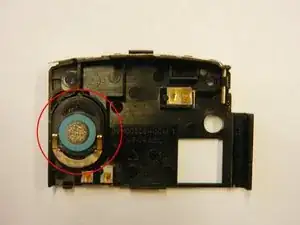

  5. 6uV1PKaWvgJbisD1

    • Use the plastic opening tool to remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
