Use this guide to replace the daughterboard in an HTC Vive Cosmos.

Make sure that the Vive Cosmos is powered off and disconnected from power before beginning disassembly.

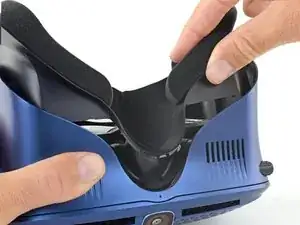

  1. 2POFXKKjHJqkePmC
    2POFXKKjHJqkePmC
    QR1FQ2uwNwPhssjH
    GhkCcXZEjZ5O1DFx

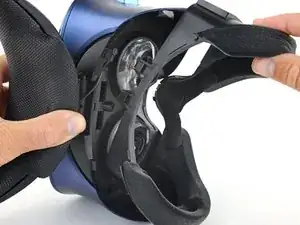

    • Pull the bottom of the facerest straight away from the Vive Cosmos to unclip it from the Vive.

    • With the bottom unclipped, pull the top of the facerest away from the Vive to remove it.

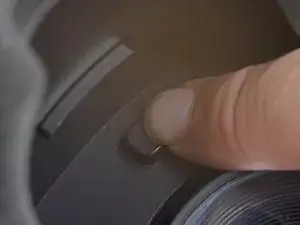

  2. 3JF6rIKQSW6W3WbB
    3JF6rIKQSW6W3WbB
    WdOskfDLtbdhGQCq

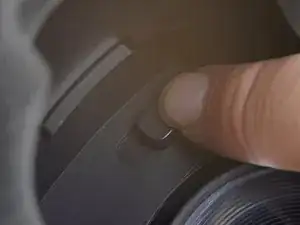

    • Use your finger to push the sliding faceplate release switch, sitting to the left of the lenses, toward the bottom of the Vive.

  3. e2RHRKB2Q1RvRrBs
    e2RHRKB2Q1RvRrBs
    KkClBsipvKqaIWOf

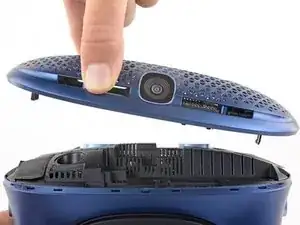

    • While holding the switch in the bottom position, pull the faceplate straight up and away from the front of the Vive.

    • Remove the faceplate.

  4. SkiEeXII53Lo6LYL

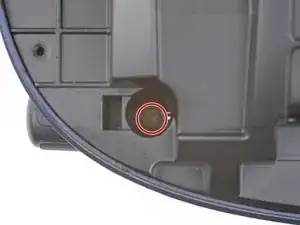

    • Use a T5 Torx driver to remove the 4.1 mm long screw securing the focus knob.

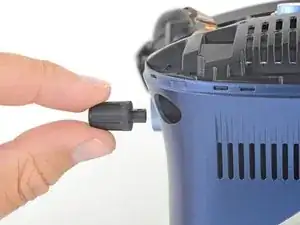

  5. y3FxAAh2fHYEEXTD
    y3FxAAh2fHYEEXTD
    Grcd2KYQLxpNVLvw

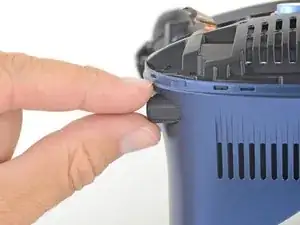

    • Slide the focus knob out of the plastic housing, off of the focus rod, and remove it.

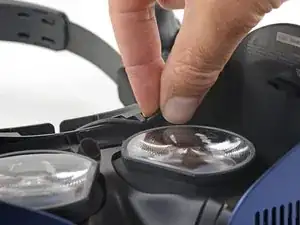

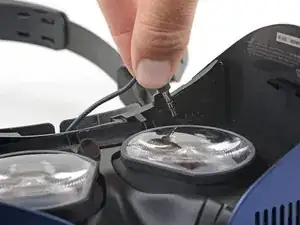

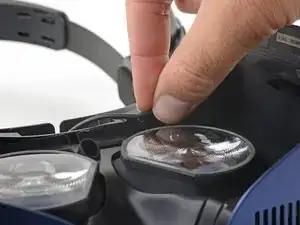

  6. ICgdFadqAkmrykXT
    ICgdFadqAkmrykXT
    OfcSkydohkJMvwGu
    BItU4CLxZXJSDfEV
    • Twist the 3.5 mm audio connector counter-clockwise slightly and slide its cable out from under the plastic retaining clip.

    • Lift the audio connector straight up to unplug it.

  7. nQrGEEVIoYZSQRgL

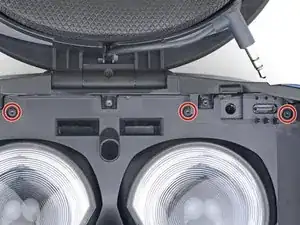

    • Use a T5 Torx driver to remove the three 4.1 mm long screws securing the LCD and motherboard assembly.

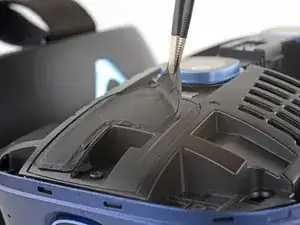

  8. gQa2uiaFSo1sihUp
    gQa2uiaFSo1sihUp
    ALmAJ6yYQrdVaDHT

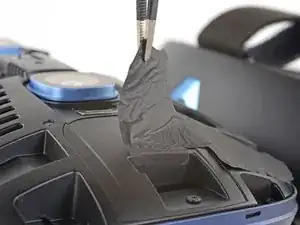

    • Gently peel up the stickers on either side of the front of the Vive. If possible, keep the stickers intact and reuse them.

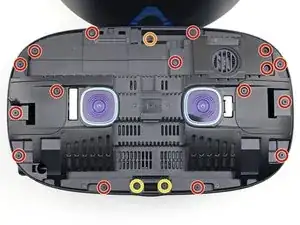

  9. vdhW3AfajTPQRDOG
    • Use a T5 Torx driver to unscrew the screws securing the upper component cover and the LCD and motherboard assembly:

    • Sixteen 4.1 mm long screws

    • One captive screw

    • This screw is covered by a sticker. Poke your driver through the sticker to access the screw.

    • Two 4.1 mm long screws

    • These screws are covered by stickers. Poke your driver through the stickers to access the screws.

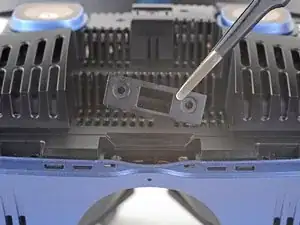

  10. dCRfd5ZVudFvgrxn
    • Remove the microphone cover from the bottom edge of the headset.

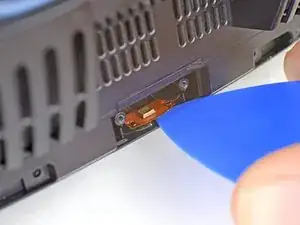

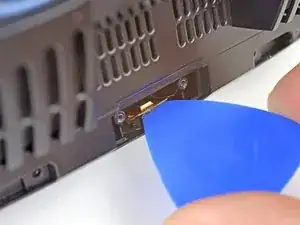

  11. JiuExPeUk2WSkecJ
    JiuExPeUk2WSkecJ
    QabYPNkCCjoMceFB
    • Slide an opening pick under the microphone to separate the adhesive securing it to the Vive.

    • If this is difficult, use a heated iOpener, hair dryer, or heat gun to apply heat to adhesive.

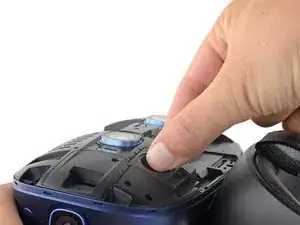

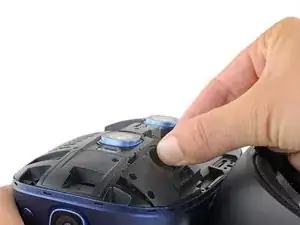

  12. JGqlejd3HkQUTUMi
    JGqlejd3HkQUTUMi
    EIIXuENARElFYO51
    GDSFySTrgTOOsj2e

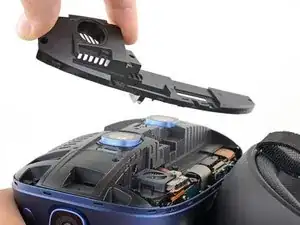

    • Angle the bottom end of the upper component cover away from the front of the Vive.

    • Pull the upper component cover away from the front of the Vive and remove it.

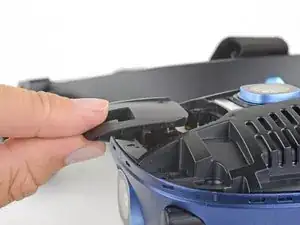

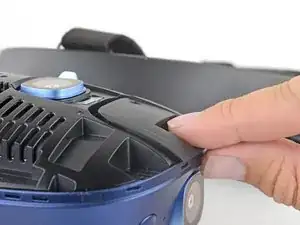

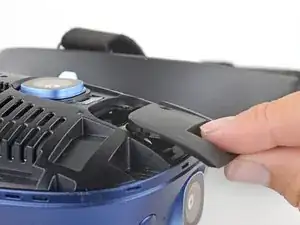

  13. fk2uAwyWTA2MAhHe
    fk2uAwyWTA2MAhHe
    QXUJqhPQeqOoBRq1
    OIFQk6FFuTnOZphg
    • Slide the camera connector covers on either side of the LCD and motherboard assembly away from the center off of the assembly and remove them.

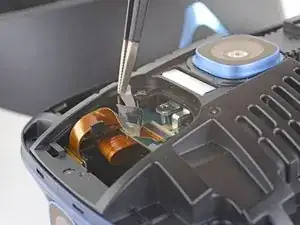

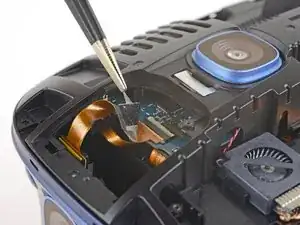

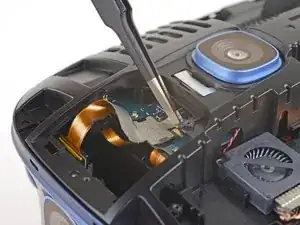

  14. E4px2cMtbEXjSXTy
    E4px2cMtbEXjSXTy
    GheTspbeNhqguVB6
    VJaAaIdbpamCbjSJ
    • Peel the tape over the right camera connector back enough to access the camera's ZIF connector underneath.

    • Repeat the same process to peel back the tape over the left camera ZIF connector.

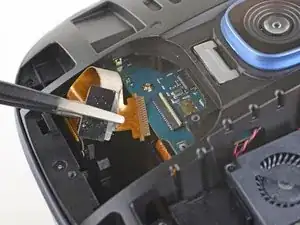

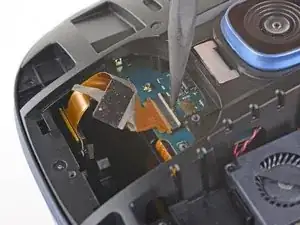

  15. nNfhXVxKO6r1ZwbP
    nNfhXVxKO6r1ZwbP
    skvwToOUqQMhkWEK
    In2Sf2swu255rNJd
    • Use the point of a spudger to flip up the small locking flap securing the right camera cable ZIF connector.

    • Carefully slide the camera connector cable straight out of its socket on the motherboard.

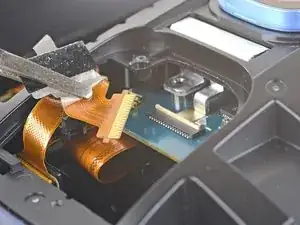

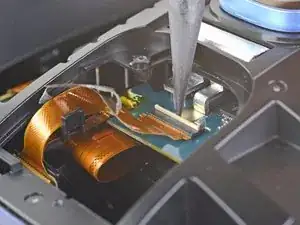

  16. d1MuGIwI5rF2KtAX
    d1MuGIwI5rF2KtAX
    dFhGurwtHnVYHM4v
    • Use the point of a spudger to flip up the small locking flap securing the left camera cable ZIF connector.

    • Carefully slide the camera connector cable straight out of its socket on the motherboard.

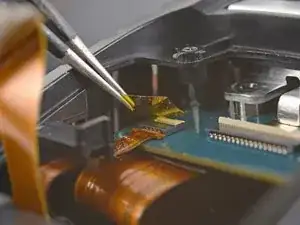

  17. LOWcOhwVSVcDeEwe
    • Peel the yellow tape off of the microphone connector.

  18. iMlMF3qgM2DRQu2j
    iMlMF3qgM2DRQu2j
    XNCnDIdgZZZJ2TrE

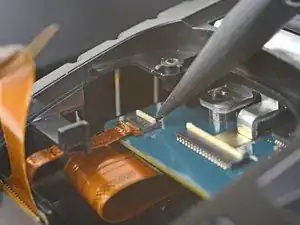

    • Use the point of a spudger to flip up the small locking flap securing the microphone cable ZIF connector.

  19. ULcTiYPKCOCwxoe2
    ULcTiYPKCOCwxoe2
    TSVr1qHDDuWXovWi
    rA5T11GqcwePhRY4

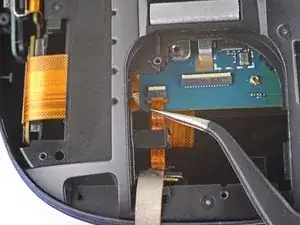

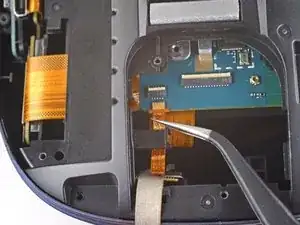

    • Carefully slide the microphone connector cable straight out of its socket on the motherboard.

    • With the cable out of its socket, slide the cable toward the bottom of the Vive and out of its clip on the LCD and motherboard assembly.

    • Take care not to crease or tear the cable while you're moving it.

  20. IrWkYmdfKwPVV5uB
    IrWkYmdfKwPVV5uB
    KDO5Rvsw3EZDLtxA

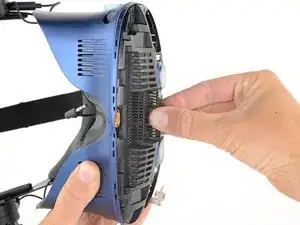

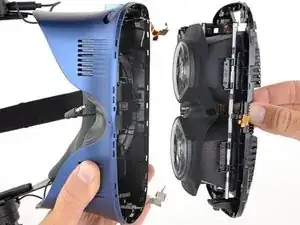

    • Lift the LCD and motherboard assembly out of the headset.

    • The assembly is secured by clips around the edges. It may help to release the clips using a thin plastic tool, like an opening tool or a spudger.

  21. wkD4KxmDMb1DgAGV

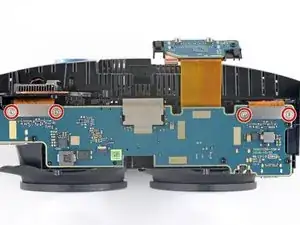

    • Use a T5 Torx driver to remove the four 2.9 mm long screws securing the LCD connectors.

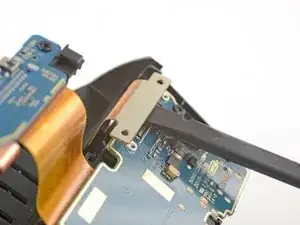

  22. oOwDOgc6qaOPW1f1
    oOwDOgc6qaOPW1f1
    WTlhbdNZSMgfWeEX
    CSAvujpkiCexgAZX
    • Use the flat end of a spudger to pry the LCD connectors straight up and out of their sockets on the daughterboard.

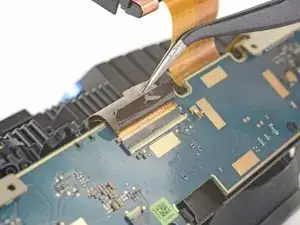

  23. YXUNIHYpRUCQLuMl
    • Peel the tape over the motherboard interconnect cable back far enough to access the cable connector.

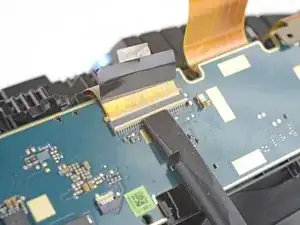

  24. raMJVmYOYhreD2Na
    raMJVmYOYhreD2Na
    1sxjb2gvaGRYGepq
    vTb3Qo3LrtRAE3S6

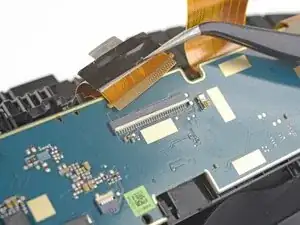

    • Use the flat end of a spudger to flip up the locking flap securing the interconnect cable ZIF connector.

    • Carefully slide the interconnect cable straight out of its socket.

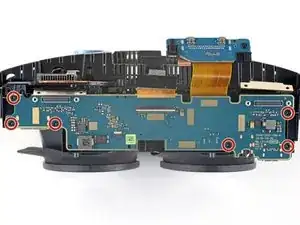

  25. Rat6pycp4MAqmKUI
    • Use a T5 Torx driver to remove the six 4.1 mm long screws securing the daughterboard.

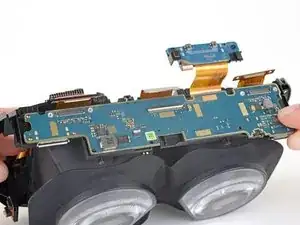

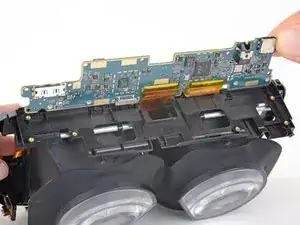

  26. l2cXPpM26AREfBDR
    l2cXPpM26AREfBDR
    E6nqIlF3PsXUZjFF
    • Do not remove the daughterboard yet. It is still connected to the motherboard.

    • Gently hinge the daughterboard up to access the underside.

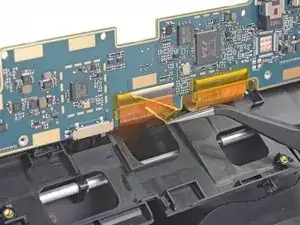

  27. j3A35Jk5qBcNvFRH
    • Peel the tape over the second motherboard interconnect cable back far enough to access the cable connector.

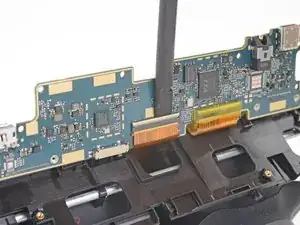

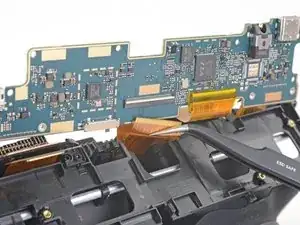

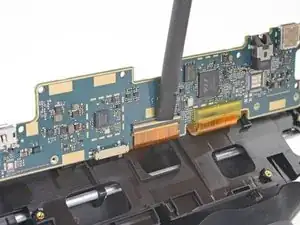

  28. xpPZxp3NetoE2Rdh
    xpPZxp3NetoE2Rdh
    nTUYknRWmL1ERr22
    rZiC5eZOjdW2tOLn
    • Use the flat end of a spudger to flip up the locking flap securing the second interconnect cable ZIF connector.

    • Carefully slide the second interconnect cable straight out of its socket.

    • Remove the daughterboard from the LCD and motherboard assembly.

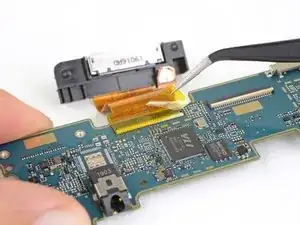

  29. wjAxUaVG3qD4nh3u
    • Peel the tape over the faceplate connector cable back far enough to access the ZIF connector on the daughterboard.

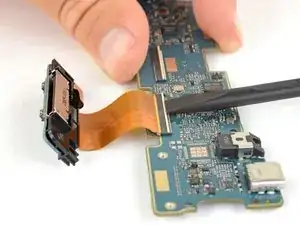

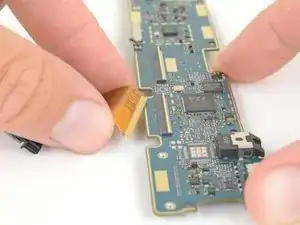

  30. msZLqEKP6QRACRlV
    msZLqEKP6QRACRlV
    JtFLlur12nFQIUFM
    ZgwKhLuq1EWBfZVL

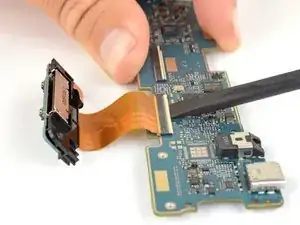

    • Use the flat end of a spudger to flip up the small locking flap securing the faceplate cable ZIF connector.

    • Carefully slide the faceplate connector cable straight out of its socket on the daughterboard.

  31. XVrbEiKsmVWLvxFQ
    • Only the daughterboard remains.

Abschluss

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.

To reassemble your device, follow the above steps in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
