Einleitung

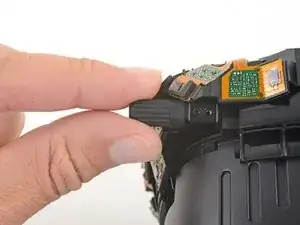

Use this guide to remove and replace the focus knob on an HTC Vive.
Ersatzteile
-
-

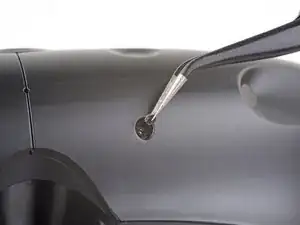

Use tweezers to remove the small stickers over the four screws securing the outer shell.
-

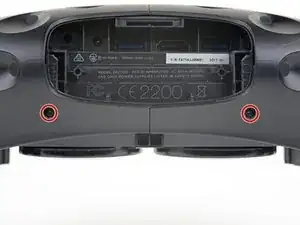

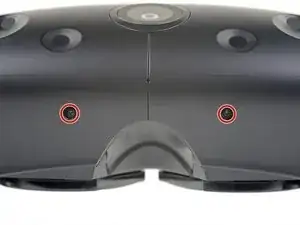

Use a T5 Torx driver to remove the four 3.4 mm-long screws securing the outer shell.
-
-
-

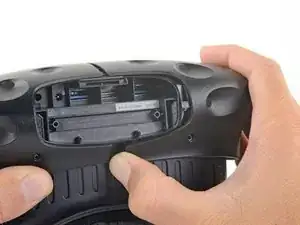

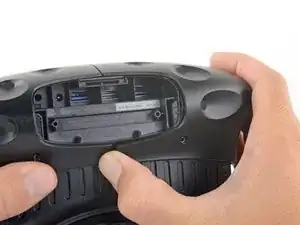

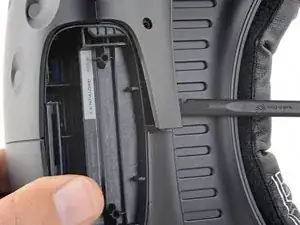

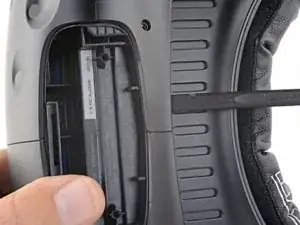

Use the flat end of a spudger to pry up the top edge of the right half of the outer shell, behind the component cover and near the seam in the center, until it is unclipped from the headset.
-
-
-

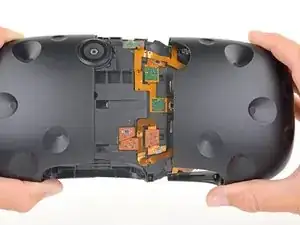

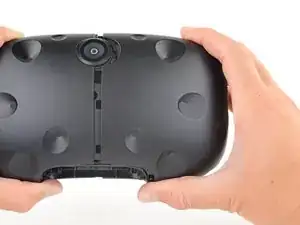

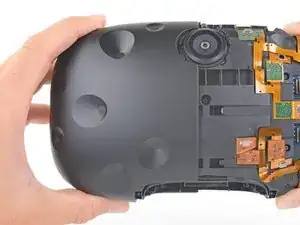

Grasp the right half the outer shell and pull it to the right and toward the front of the headset until you feel the clips on the front of the cover release.
-
If the shell is difficult to remove, try prying along the seam with the flat end of a spudger to release the clips.
-
Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.
To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
PSA: There are four screws you need to remove that are covered with small black stickers (two on top, two on bottom)
Oscar Kosar-Kosarewicz -
Holy cow. Thank you for adding this comment Oscar. I was just about to break it.
PC McGee -
These screws are T6.
Eric Tong -
