HTC Vive Focus Proximity Sensor Array Replacement

Geschrieben von: Sam Omiotek
  • Kommentare: 0
HTC Vive Focus Proximity Sensor Array Replacement

Schwierigkeitsgrad

Moderate

Schritte

21

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Follow this guide to remove or replace the front cover on a HTC Vive Focus.

Power down your device before you begin. Be careful not to power on your device while making repairs. If you accidentally power on your device, stop working and power it back off before you resume.

This repair requires breaking the plastic welds that help secure the front cover to the device. If you complete this repair, the gaps between the plastic front cover and side panels will no longer be flush. This damage is permanent but only cosmetic and will not affect the device’s functionality, usability, or operation.

  1. Fp1NhVVVWNPwZ5Rm
    Fp1NhVVVWNPwZ5Rm
    QBQscC6NcItQ3MOv
    LujRsVDea63DUAsJ

    • Place your device upside-down on your work surface.

    • The facerest cushion is lightly held into place by seven plastic clips.

    • Use your fingers to gently pull the facerest cushion straight off of the facerest to remove it.

  2. dOcqkGT13iM2dVRJ

    • Use a T5 Torx screwdriver to remove the eight 4.5 mm screws securing the facerest.

    • One of the screws will be covered by a tamper-evident sticker. Press the driver through the sticker to remove the screw.

  3. dVLEUkMCAUP2dBHa
    dVLEUkMCAUP2dBHa
    sisrtLX4KAlPPImh
    JhgHcc3bnQvc3FVa

    • Insert an opening pick into the upper-left corner of the facerest.

    • Twist the opening pick to release the plastic clip securing the facerest.

    • Repeat for the upper-right corner.

    • Don't remove the facerest yet. It's still attached by the facerest sensor ribbon cable.

  4. kfWGDZXRaRjcfAGI
    kfWGDZXRaRjcfAGI
    vBxlbCZmn2vFQoWu
    6pHL4JgGnhuMACit

    • Carefully flip your device over.

    • Pull the facerest out just enough to access the screws securing the facerest sensor.

    • Don't put any strain on the facerest sensor ribbon cable.

    • During reassembly, make sure the facerest sensor ribbon cable is positioned between the lenses before reinstalling the facerest.

  5. HaceRvZ1N4EXF22Z

    • Use a T5 Torx screwdriver to remove the two 2.4 mm screws securing the facerest sensor to the facerest.

  6. WS3JwubqqwPvhZpy

    • Remove the facerest.

  7. uaQExBifEq4XEFnG
    uaQExBifEq4XEFnG
    yBWPlTs3bL5uyLXH

    • Use your fingers to slide the lenses towards each other so that they are positioned towards the center of the device.

  8. avxwI1aKRNtAhM6X
    avxwI1aKRNtAhM6X
    DQ6o3LoJtbfZDsGY

    • Use a T5 Torx screwdriver to remove the four screws securing the front cover from inside the device:

    • Two 5.7 mm screws with fine threads

    • Two 5.5 mm screws with coarse threads

    • The coarse-thread screws can strip easily. During reassembly, tighten the coarse-thread screws until they're hand tight and then no more.

  9. AGsmoR6QOpGU3wHK
    AGsmoR6QOpGU3wHK
    WarWYkXbOVXwMeW1

    • Note the location of the plastic welds on both vertical edges of the front cover.

    • After reassembly, the gap between the front cover and the side panels may no longer be flush. This is a cosmetic defect only and will not affect operation. The front cover's clips and screws are sufficient to secure it to the rest of the device.

  10. ldwptB1DTiCqAYoc
    ldwptB1DTiCqAYoc
    LlNbxhfu2YKIspgW
    pNxYRTYIIwBRpC3Q

    • Insert an opening pick into the top of the front cover near the upper left corner.

    • Slide the opening pick around the upper left corner of the front cover.

  11. udEvlvFm3TaPF5HD
    udEvlvFm3TaPF5HD
    SJss4yxufVABvsMb

    • Use the opening pick to separate the weld securing the left side vertical edge of the front cover.

    • The weld may require significant force to separate.

  12. lpIWLwqclF3fICRI
    lpIWLwqclF3fICRI
    cGgJnU4Sa6Qy3F2D
    aTR4ENoAdgOSkZB3

    • Insert an opening pick into the top of the front cover near the upper right corner.

    • Slide the opening pick around the upper right corner of the front cover.

  13. a1ZSpPxkOrWKWdxF
    a1ZSpPxkOrWKWdxF
    TvZPK2NSIfoVptW1

    • Use the opening pick to separate the weld securing the right side vertical edge of the front cover.

    • The weld may require significant force to separate.

  14. uU4MKVcIPajlQKIY
    uU4MKVcIPajlQKIY
    RqbhSprgSNMISgCo
    b2bbb5Uf2bvxAryg

    • Flip the device upside-down.

    • Use an opening pick to disconnect the plastic clips securing the bottom right edge of the front cover to the device.

  15. FQD1aUflgyHWJW6c
    FQD1aUflgyHWJW6c
    Lf46BsA1WKCyeqHx

    • Slide the opening pick along the bottom edge of the front cover to separate it from the device.

  16. hJ2NZ4QtIMbKurgU
    hJ2NZ4QtIMbKurgU
    MDgI3YAiwbV4a6JT

    • Use the opening pick to disconnect the plastic clips securing the bottom-left edge of the front cover to the device.

  17. OofmPpQvit3ms3aJ
    OofmPpQvit3ms3aJ
    WKUq6EQUhk2Uq1ZJ

    • Flip the device right-side up.

    • Use the opening pick to separate the last few plastic clips securing the top of the front cover.

  18. lOFsi4Rp1YVSFJ15
    lOFsi4Rp1YVSFJ15
    Ow6GCmSuL23OnUHW

    • Remove the front cover.

  19. HHGIQy1B6PO3GKLT
    HHGIQy1B6PO3GKLT
    R4T3ZxDQ1RcNfKlY

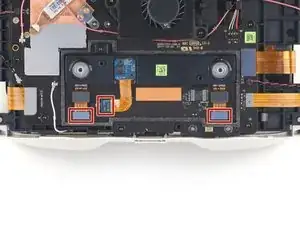

    • Use the flat end of a spudger to disconnect the three ribbon cables connecting the proximity sensor array to the motherboard.

  20. fAI1JjjePBWvZjKV
    fAI1JjjePBWvZjKV
    rFmV6xoxjkbPJXXW

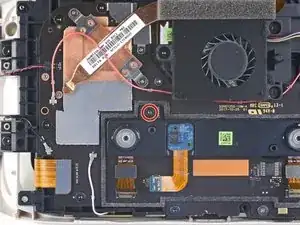

    • Use a T5 Torx screwdriver to remove the 4.5 mm screw from the proximity sensor array.

  21. 6dFNsJsZIE1SPILm
    6dFNsJsZIE1SPILm
    wkIUApkfR2gurqnf

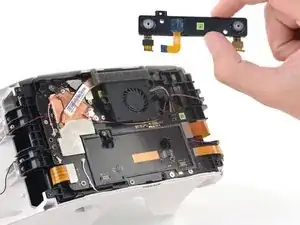

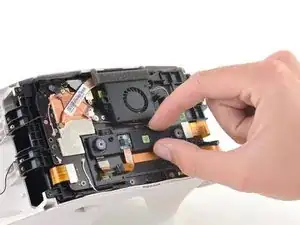

    • Remove the proximity sensor array from the motherboard.

Abschluss

To reassemble your device, follow the above steps in reverse order.
