HTC Vive Focus Rear Head Strap Replacement

Geschrieben von: Sam Omiotek
  • Kommentare: 0
HTC Vive Focus Rear Head Strap Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

Follow this guide to replace the rear head strap on a HTC Vive Focus virtual reality headset.

  1. sHcYFhkVQRDGWGLV
    sHcYFhkVQRDGWGLV
    WBeHVNSpaWVPva6j

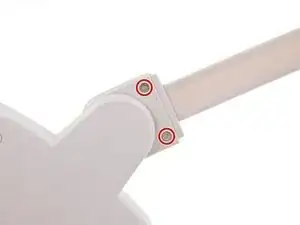

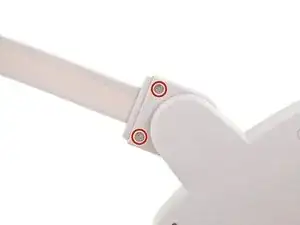

    • Use a T6 Torx screwdriver to remove the four 4.6 mm screws securing the rear head strap, two on each side.

  2. IOjZWET5t5MPsmPH
    IOjZWET5t5MPsmPH
    HIrGWj3RYl4gbeLj
    JZOcsjIc1LHkKQHX

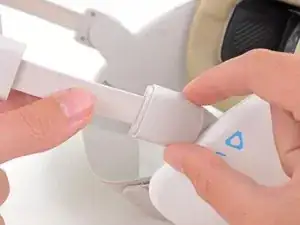

    • Remove the plastic cover from the rear head strap mount.

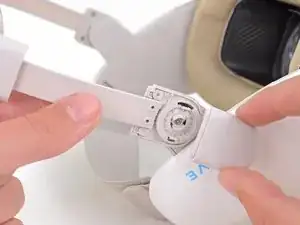

    • Lift the rear head strap off of the two pegs securing it to the mount.

    • Repeat for the remaining side of the rear head strap.

    • During reassembly, be careful not to install the rear head strap upside-down. The adjustment knob on the back of the head strap should be on top.

  3. 6FUupmeLKqbu1SeD

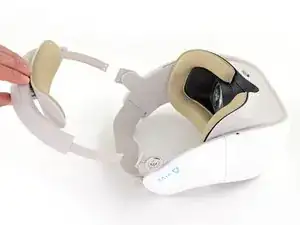

    • Remove the rear head strap.

Abschluss

To reassemble your device, follow the above steps in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
