HTC Vive Pro Head Strap Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Follow this guide to replace the head strap on your HTC Vive Pro.

Power off and unplug your headset before you begin your repair.

  1. aMNZPqQCqvBpYVBr
    aMNZPqQCqvBpYVBr
    2t1YpoDa16u3a6nw

    • Rotate the head strap forward as far as it will go.

  2. lGRGmrJqbaNo2Ngy
    lGRGmrJqbaNo2Ngy
    tWWbSxVKBHuNwFNq

    • Unplug the All-In-One Cable from your headset.

  3. HbQvVLZ6kJDOwNRY
    HbQvVLZ6kJDOwNRY
    gXqSBAhFSAFT2PXt
    2NxZbAVObNCtX5Cs

    • Remove the All-In-One Cable from the cable guides along the left side of the head strap.

    • During reassembly, connect the All-In-One Cable to the headset before routing it through the cable guides. This will ensure it has the right amount of slack.

  4. 3dG4uV5DpUAQZptQ
    3dG4uV5DpUAQZptQ
    YiMWeYhExTRMVKFO

    • Separate the top strap from itself where the velcro secures it.

  5. VLPdIX14F6iiruXO
    VLPdIX14F6iiruXO
    UmwroeIuZueAKbbW
    e5EtHVxxujdCPHxB

    • Peel back the Velcro securing the rear of the top strap.

    • Feed the top strap out through the head strap to remove it.

  6. HcrR5RsAx4PE1h5j
    HcrR5RsAx4PE1h5j
    5vWrMBaqmgo4UBuT
    dCT1YqKf4opHuM2s

    • Feed the top strap through the clip on the headset to fully remove it.

  7. LnRydVZX5GycMC3o
    LnRydVZX5GycMC3o
    mPWInBOiUxUoIWHk
    32lhPiKJihIMHrPC

    • Peel off both front side foam pads to uncover the speaker wires.

  8. MM2PomssV1GIH2k1
    MM2PomssV1GIH2k1
    hTtmb141iJw5OJFm
    ZAfuS6wZT1FGWjtG

    • Insert the pointed end of your spudger behind the square rubber spacer next to each headphone screw.

    • Gently pry the rubber spacers out of the head strap.

    • Be careful not to accidentally pry any of the speaker wires under the rubber spacer.

  9. CVbX4PPWpfuB3Lev
    CVbX4PPWpfuB3Lev
    gTHLVQVxN2kPBLhD

    • Use the pointed end of your spudger to pry up and disconnect both the left and right headphone speaker wires.

  10. jyvLOIRiavsuSgk3
    jyvLOIRiavsuSgk3
    sAPbTeRiI1VYx2yZ

    • Use a T6 Torx screwdriver to remove the two 12.1 mm screws (one on each side) securing the head strap to the headset.

    • Use a T5 Torx screwdriver to remove the following screws securing the head strap to the headset:

    • Four 3.9 mm screws (two on each side)

    • Two 4.1 mm screws (one on each side)

  11. 2KDUshEaMsb6IDTc

    • Remove the two plastic spacers underneath the previously removed screws from the headset.

  12. sIRdYNZpryGVtKfP
    sIRdYNZpryGVtKfP
    bPQpTY5jgpl5qIYQ
    U6AlJRrlhEUijfEP

    • Thread the headphone speaker wires out through the ends of the head strap.

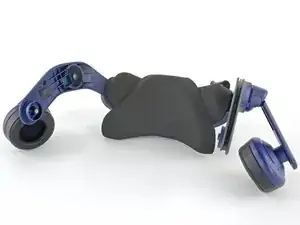

  13. 4yIgJOEWhkEv21BN

    • Transfer all foam pads from the old head strap to the new one.

Abschluss

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.

To reassemble your device, follow the above steps in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Valve Index Answers community for help.
