HTC Vive XR Elite Chip ID

Geschrieben von: Sam Goldheart
Veröffentlicht: 03/04/23
  • Kommentare: 0

HTC Vive XR Elite Chip ID

Veröffentlicht: 03/04/23

Teardown

Einleitung

Chip ID for the HTC Vive XR Elite.

Many thanks to our community member CChin for his contributions!

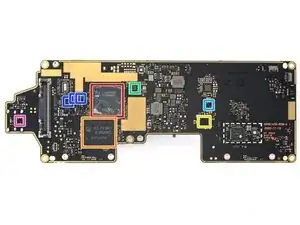

  1. MkbwulPQWnUOvMTH
    MkbwulPQWnUOvMTH
    kAH2APaWVU5QOjQR

    • Samsung K3UHAHA0BM-AGCL 12 GB LPDDR4X SDRAM memory layered above a Qualcomm Snapdragon XR2 applications processor

    • Samsung KLUDG4UHGC-B0E1 128 GB NAND flash memory

    • Qualcomm PM8009-100 power management

    • Qualcomm PM3003A ? power management

    • Qualcomm PMK8002 ? clock generator

    • onsemi FSA3000L10X 2-port USB 2.0 MHL switch

    • onsemi FSA550 4PST analog switch

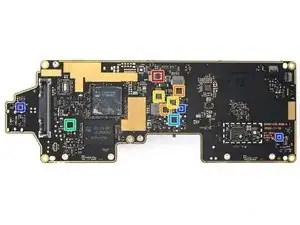

  2. cwgMbJrJGvqyW3yd

    • Silergy SY7069ADC 3 A synchronous boost converter

    • Texas Instruments TPS62135 4 A step-down converter

    • Global Mixed-mode Technology G2264A 3 A synchronous step-down converter

    • Kinetic Technologies KTS1676EUT overvoltage protectior

    • Texas Instruments TLV9064IRUCR quad operational amplifier

    • Awinic AW37030D280DNR 300 mA / 2.8 V LDO regulator

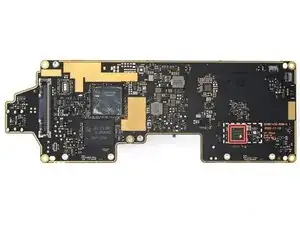

  3. nscDdMu5yTVawGsm

    • Nordic Semiconductor nRF52832 Bluetooth 5.2 SoC

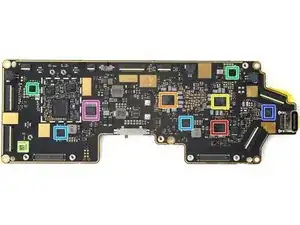

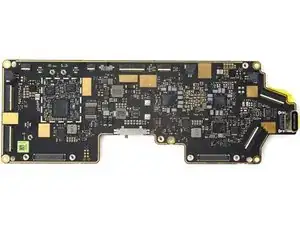

  4. VrAX6sMpvSNlxVGN
    VrAX6sMpvSNlxVGN
    LhctVqRghF1laBiE

    • Qualcomm PM8150B-102 power management

    • Qualcomm PM8150L-103 power management

    • Qualcomm PM8250-003 power management

    • Qualcomm WSA8810-0VV 2 W class-D audio amplfier

    • Texas Instruments LP8556SQ-E09 6-ch. LED backlight driver

    • VIA Labs VL163 10-Gbps USB type-C data switch

    • Analog Devices MAX31760 fan controller

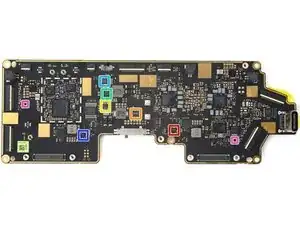

  5. DS6Gc3tv14WReYVP

    • onsemi FSA3000L10X 2-port USB 2.0 MHL switch

    • Silergy SY7120RAC 10 A / 16 V synchronous boost converter

    • Silergy SY7069ADC 3 A synchronous boost converter

    • Texas Instruments TPS62135 4 A step-down converter

    • Global Mixed-mode Technology G2264A 3 A synchronous step-down converter

    • Texas Instruments LM358TP dual 1-MHz operational amplifier

    • Awinic AW37030D280DNR 300 mA / 2.8 V LDO regulator

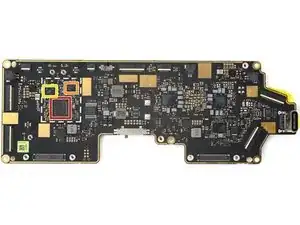

  6. tOZulUfIWwNTYYNy

    • Qualcomm WCN6851-102 FastConnect 6900 WiFi 6, 6E, & Bluetooth 5.3 controller

    • Qorvo QM42391 2.4 GHz WLAN Front-End Module

    • Qorvo QM45392 5-7.2 GHz WLAN Front-End Module

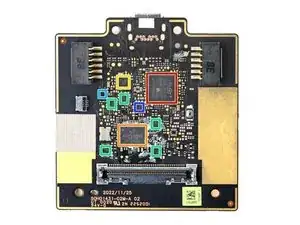

  7. 3Et3mUvR5Tvxs6iX
    3Et3mUvR5Tvxs6iX
    A4bn15wARxSOLIUe

    • STMicroelectronics STM32L412CB 32-bit ARM Cortex-M4 microcontroller w/ 1 Mb flash

    • Kinetic Technologies MCDP6200C1 USB Type-C switching retimer

    • onsemi FUSB302TMPX USB Type-C controller w/ power delivery

    • onsemi FSUSB30UMX 2-port, 480 Mbps USB 2.0 analog switch

    • onsemi FSA550 4PST analog switch

    • Texas Instruments TUSB212 USB 2.0 signal conditioner

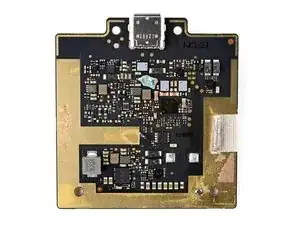

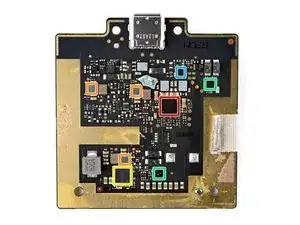

  8. VAxlPhcjNcLCIRCC
    VAxlPhcjNcLCIRCC
    JiQDEsWIBMLixYa4

    • Qualcomm SMB1380-000 single-cell Li-ion battery charger w/ Quick Charge 3.0 support

    • Global Mixed-mode Technology G2264A 3 A synchronous step-down converter

    • Silergy DC-DC converter

    • Kinetic Technologies KTS1693EVB load switch w/ over-voltage & over-current protection

    • Kinetic Technologies KTS1668EAY 4 A over-voltage protection
