HTC Wizard 100 Back Case Replacement

Geschrieben von: Eric W
  • Kommentare: 0
HTC Wizard 100 Back Case Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

In order to remove speakers, we have to remove the phone plastic case and keyboard. This requires the spudger tool and torx screwdriver.

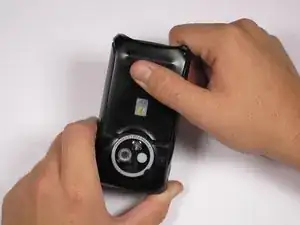

  1. 1oEaXWRLxPcMj5jw
    1oEaXWRLxPcMj5jw
    hGF3YVuro1BOfjRX

    • Power the phone off.

    • Use your thumb to gently press downward and away from the camera to remove the battery cover.

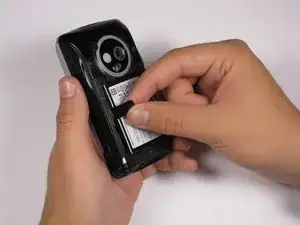

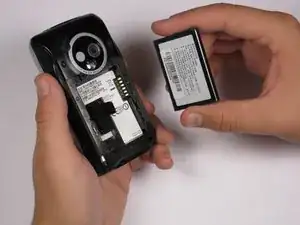

  2. HyhtLSVajSsXhUHB
    HyhtLSVajSsXhUHB
    OH65JRqeMMWbPXYa

    • Pull on the plastic tab to release the battery.

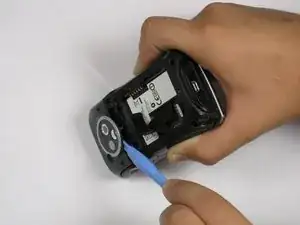

  3. CPRgUWJGDOeYRwKl
    CPRgUWJGDOeYRwKl
    JqTTZxN2CUUIcdUO

    • Use a plastic opening tool to remove the camera cover.

    • Work around the corners to avoid breaking the plastic clips that hold the camera cover on.

    • Lift the camera cover off of the phone.

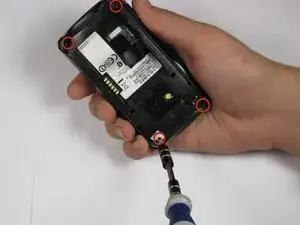

  4. dR1fLPMOPYQ3JSIg

    • Remove the stylus from the phone.

    • Remove the four 5.5 mm screws with the T6 Torx Screwdriver.

    • One of the screws might be under a sticker, which will void your warranty.

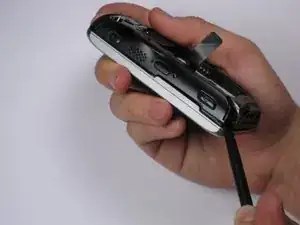

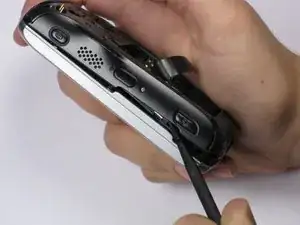

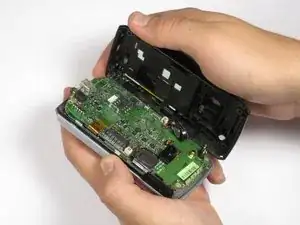

  5. BK5WpTHbhTVKU2Hb
    BK5WpTHbhTVKU2Hb
    pWKoLBQiJxCoJGhE
    UWFqbbCebJ23tlqO

    • Be Careful! Do not insert the spudger in between the keyboard and screen. This could break the keyboard off the phone.

    • If your phone contains a memory card, you may want to remove it before proceeding with this step.

    • Insert spudger in the bottom corner as seen in the picture. Carefully slide the spudger from the bottom towards the top as seen in the second picture.

    • Lift the back case off completely.

    • The speakers might be dangling and unsecured.

Abschluss

To reassemble your device, follow these instructions in reverse order.
