This guide demonstrates the procedure for replacing a faulty camera in the HTC myTouch 3G.

  1. brIAogjn1kGnqXOW
    brIAogjn1kGnqXOW
    GgogcdExLe2w2FVM
    • Press both thumbs on each side of the upper corners, and apply pressure in a downward motion.

    • While applying downward pressure, slide the back cover down and off the phone.

  2. e4XZhGVWwERm5WdI
    e4XZhGVWwERm5WdI
    GDqrUIDbulKBXMs3
    • Remove the battery.

    • Remove the SIM card.

  3. 5RmCFdmXLRQ1ss1K
    • Push the SD card in to eject it.

    • Pull the SD card out.

  4. tKPqUOWsyfNt3aN6
    tKPqUOWsyfNt3aN6
    wWNNB6QLf12MRTEp
    • Remove the four 6 mm T5 Torx screws from the four corners on the back of the phone.

    • Remove the two 4 mm T5 Torx screws from the middle of the back of the phone.

  5. pfvcHZ3Dgo263m4t
    pfvcHZ3Dgo263m4t
    pnZZtgveDID1jjwv
    • Pull out the antenna cover to access the motherboard.

  6. DuwFXjZPTbTNGdDD
    DuwFXjZPTbTNGdDD
    QbXrZtgCeOnNJPkp
    • Insert a spudger into the gap between the frame and cover. Push downward with the spudger to separate the back plate from the phone.

    • With the spudger in the gap between the frame and cover, move the spudger around the edge of the of the phone to finish removing the back plate.

  7. GApdkgHboVhj6jih
    GApdkgHboVhj6jih
    MGfXvUGrPAePCZQD
    • Remove the 3 mm Phillips screw located on the side of the bottom left-hand corner of the phone.

    • Remove the 3 mm Phillips screw located on the top right-hand corner of the phone.

    • Do not remove any of the screws located on the actual circuit boards.

  8. rjeEGFIkGrJARLsr
    rjeEGFIkGrJARLsr
    gUvXuELQOTocuELb
    ywwyGfoDtCtMqoKA
    • Place a finger between the circuit board and front cover, and lift the circuit board gently.

    • Separate the circuit board from the front cover and screen to access the ribbon cable holding them together. Detach the ribbon cable.

    • Finish separating the circuit board from the front panel.

  9. C1EbR5NMlYUW4Pvi
    • Turn the device housing the circuit boards over to the side with the mounted camera.

    • Remove the three 3 mm Phillips head screws located on the top circuit board.

  10. VqWytp1reHHUfSN5
    VqWytp1reHHUfSN5
    G2LMPK6MnbLZJ5OH
    leqB6CuKrZJkEqyO

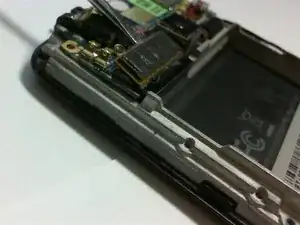

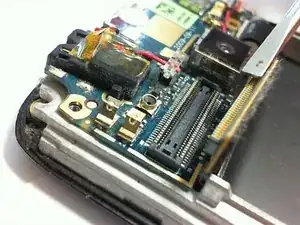

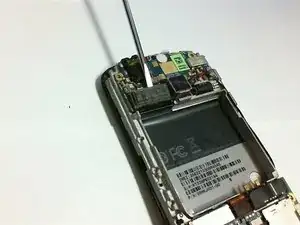

    • Locate the ribbon cable on the top circuit board.

    • Use a precision screwdriver to flip open the ribbon cable.

  11. VEwCnyJlBxrlmU6m
    VEwCnyJlBxrlmU6m
    SVr6qjufM2tPrKLE

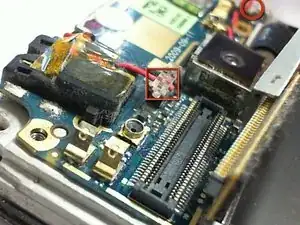

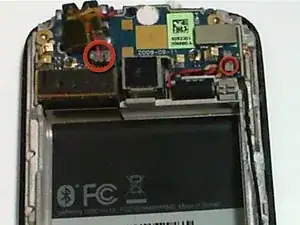

    • Locate the two wired connections on the top circuit board.

  12. YUGsZS6IbMKQPhfn
    YUGsZS6IbMKQPhfn
    cGbaKx1pRSiLCdYU
    • Remove the wired connections by using a squeeze-and-pull action.

  13. caJQbDsRju413jRy
    caJQbDsRju413jRy
    weRIIBTaPTGPgSWJ
    LByIMwGxuZW6AmGs

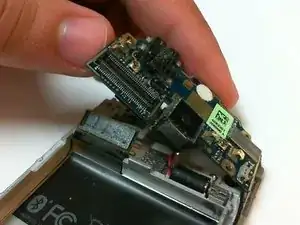

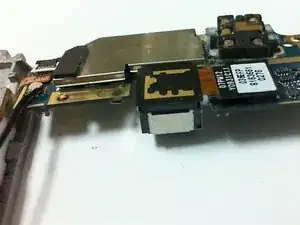

    • Slowly lift the circuit board from the left.

    • Continue to flip the circuit board all the way over to the right; it will maintain a connection to the device.

  14. yimDmrUW6a2kDsYZ
    yimDmrUW6a2kDsYZ
    4AgRkoh6AEOA1dUs
    rQVQmiCAPdRSoLaH

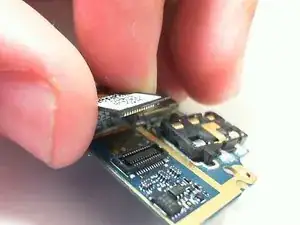

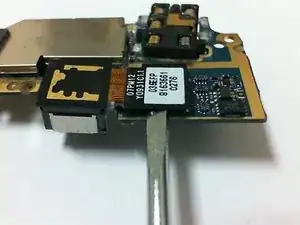

    • The other side of the camera and circuit board should now be exposed.

    • Disconnect the ribbon cable with a precision screwdriver.

    • Remove the faulty camera and install a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
