Is sound not playing through your speakers? You may need to replace it. This guide will show you how to remove and replace the bottom loudspeaker for the Huawei Honor 5x. If other components of the speaker is not functional then this setup may not fix your problem and you might need to contact help to diagnose the issue.

  1. hKdZKJZhQfmIwplL
    • Turn off your cell phone before disassembling.

  2. qpKVrY5CNSc2WExI
    • Remove the two 1.17mm Torx T3 screws from the bottom of the phone.

  3. JhGWJYuUwjjGXC1O
    JhGWJYuUwjjGXC1O
    GdLBhT3X5HDVuFkJ
    • Use the Sim card ejection tool to remove both the sim card trays.

  4. jJoAEmLqHsTK2W2t
    • To prepare the iOpener insert it in the microwave for 30 seconds and apply it on the side edges of the phone so that the glue underneath will soften.

  5. CJITUMPPiqTZ6vEk
    CJITUMPPiqTZ6vEk
    y6RDbYXIViATljin
    • Pry off the back with a plastic opening tool.

  6. LENFfAxZKZxkaNCR
    LENFfAxZKZxkaNCR
    BJ2UvQUuGavffWIx

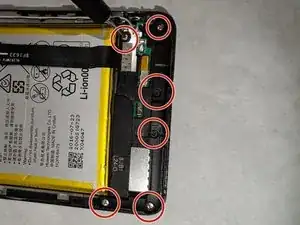

    • Remove the six Phillips #000 screws holding the speaker to the device.

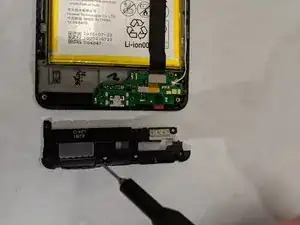

    • Remove the speaker

Abschluss

To reassemble your device, follow these instructions in reverse order.
