Einleitung
The battery should be inspected if the phone is constantly overheating and powering off.
-
-
To prepare the iOpener insert it in the microwave for 30 seconds and apply it on the side edges of the phone so that the glue underneath will soften.
-
-
-

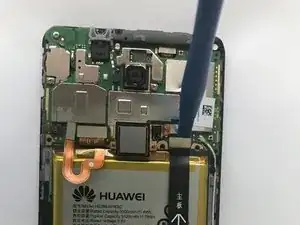

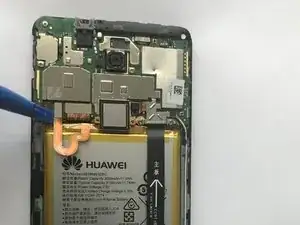

Use a plastic opening tool to disconnect the orange and black battery cables from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
4 Kommentare
Just did this successfully, thanks for the steps.
I’d suggest adding to BE CAREFUL WHEN PRYING OUT THE BATTERY. #1 there is the screen cable under there and if you damage that, then have fun getting a new screen. #2 lithium batteries can ignite when punctured (like I did). Go easy working your way in and take note of where the screen cable is (lower black cable in step 9 image).
11/09/19 - What is this pink sticker called so I can purchase a replacement? Can copper foil, conducive tape be used in place of the clear pink sticker? I would appreciate answers to both questions please. Thank you.
Anyone know where I can get replacement 1.17mm Torx T3 screws? Mine came stripped. I had a tough time getting them out and don’t want to use the same ones to put back in.
