HUAWEI HONOR 5X Front And Back Camera Replacement

Geschrieben von: Klara Asllani
  • Kommentare: 0
HUAWEI HONOR 5X Front And Back Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

If the camera has been cracked or shows blurry pictures, it may need to be replaced.

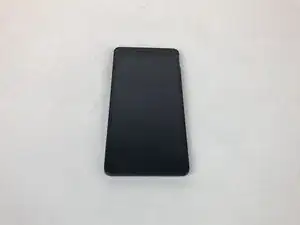

  1. hKdZKJZhQfmIwplL

    • Turn off your cell phone before disassembling.

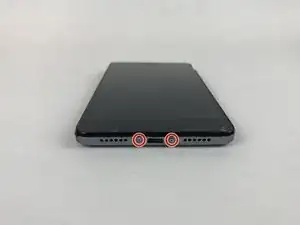

  2. qpKVrY5CNSc2WExI

    • Remove the two 1.17mm Torx T3 screws from the bottom of the phone.

  3. JhGWJYuUwjjGXC1O
    JhGWJYuUwjjGXC1O
    GdLBhT3X5HDVuFkJ

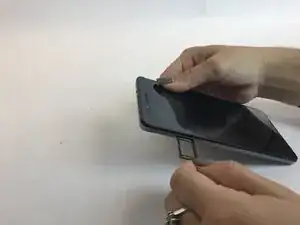

    • Use the Sim card ejection tool to remove both the sim card trays.

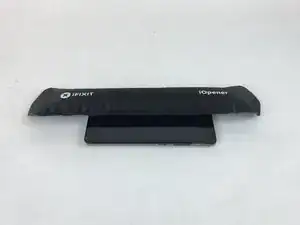

  4. jJoAEmLqHsTK2W2t

    • To prepare the iOpener insert it in the microwave for 30 seconds and apply it on the side edges of the phone so that the glue underneath will soften.

  5. CJITUMPPiqTZ6vEk
    CJITUMPPiqTZ6vEk
    y6RDbYXIViATljin

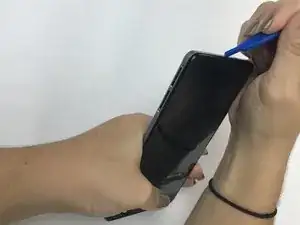

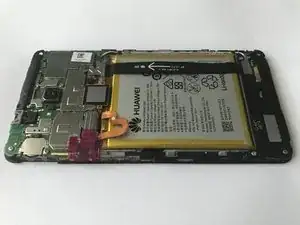

    • Pry off the back with a plastic opening tool.

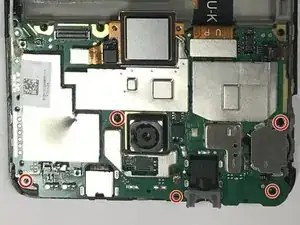

  6. 2Vu2MmkxQgbgHjAI
    2Vu2MmkxQgbgHjAI
    NFGrTUXn1CBWH1ip

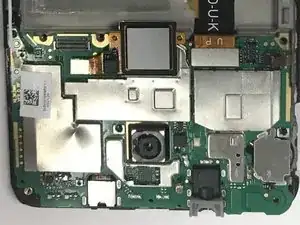

    • Remove the five 1.5mm Phillips #000 screws from the motherboard.

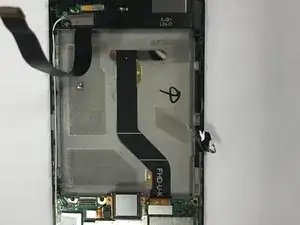

  7. kyvHeBBfJFsiEt2C
    kyvHeBBfJFsiEt2C
    XCXoG6wBAPZtIVnc

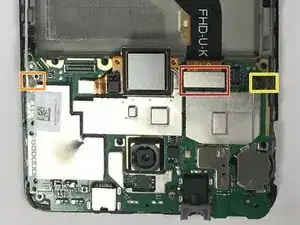

    • Use a plastic opening tool to pry up and disconnect the display cable from the motherboard.

    • Use tweezers to disconnect the white coax cable.

    • Use tweezers to disconnect the power and volume cable.

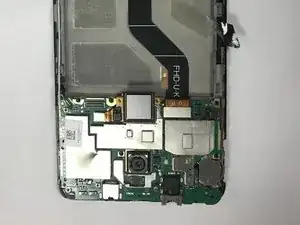

  8. eWJ4LouUBfLP6E2X
    eWJ4LouUBfLP6E2X
    SD5MjVRZcVJHMBL1
    OoYpnG3ic3VcHKvl

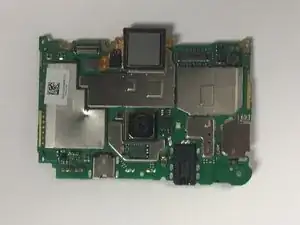

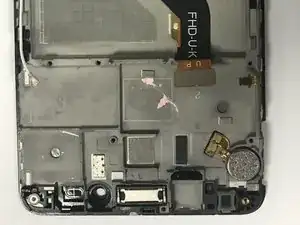

    • Remove the motherboard.

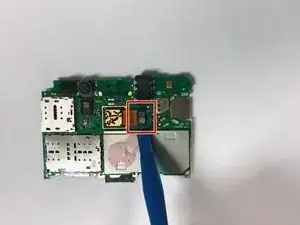

  9. QYWyAPSDCvfJe25Z

    • Use a plastic opening tool to pry up and disconnect the camera from the motherboard.

  10. 3aKdvweDVNMYd6Vu

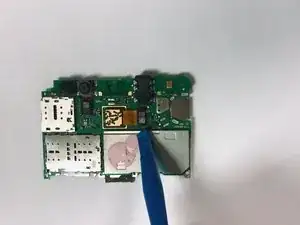

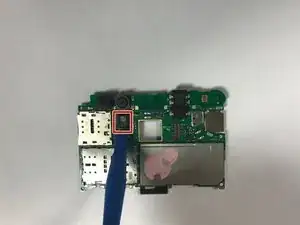

    • Use a plastic opening tool to pry the front camera connector from its socket on the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
