HVAC Run Capacitor Replacement

Geschrieben von: Brandon Chung
  • Kommentare: 0
HVAC Run Capacitor Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 - 45 Minuten

Einleitung

This guide demonstrates how to quickly and safely check, and, if necessary, replace the run capacitor in your residential HVAC condenser unit. This process can also be used, with some modification, to check other capacitors, such as the blower motor capacitor in the furnace of your HVAC system.

When following this guide please remember safety first: remember to turn the power off before you start and turn it back on only when you have everything reassembled.

  1. R3vd5gVQ4dSLJlCn
    R3vd5gVQ4dSLJlCn
    fJIAbJCfhRBMEWEL
    Zqmqct4JJe6tWJjj

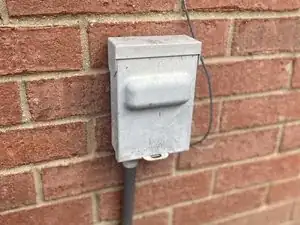

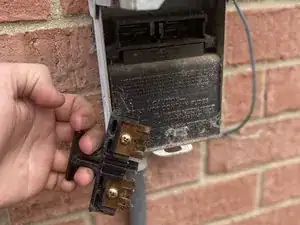

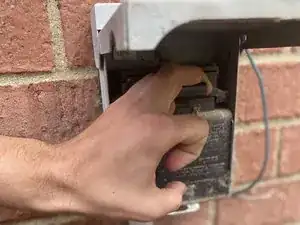

    • Turn off the power before beginning by pulling the plug or flipping the switch on the disconnect box. Leaving the power on during the repair could result in death or serious injury.

  2. oPfW4flxl4HMEgEW
    oPfW4flxl4HMEgEW
    LCQcXDZkKS2QO2PI
    Dmqrw3xSxSYGLAmp

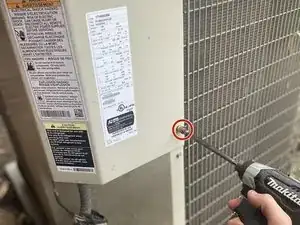

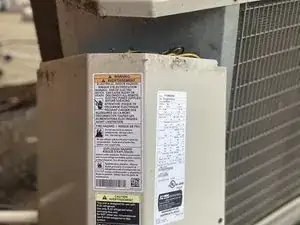

    • Use either a Phillips #2 screwdriver or a 1/4 inch Phillips bit to remove the two screws securing the electrical panel cover

    • Screw size/type is dependent on the model of your unit.

    • Remove the electrical panel cover.

  3. vWKZrHBebnQhYGU2
    vWKZrHBebnQhYGU2
    UeVBpaQ1QAjNhALM
    RYsPI2sObLQmNLVh

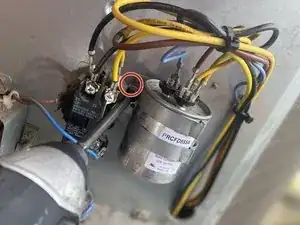

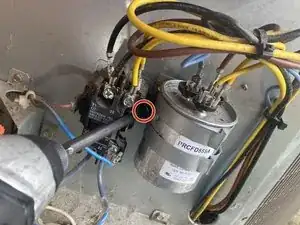

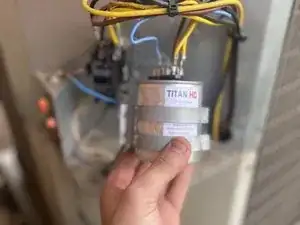

    • Use either a Phillips #2 screwdriver or a 1/4 inch Phillips bit to remove the two screws securing the capacitor bracket.

    • Lift the capacitor away from the electrical panel, with care not to damage or dislodge any wires.

  4. LEVMKx1EZ66lFfXS
    LEVMKx1EZ66lFfXS
    3iOYLPDnuZoRsMeK
    fBLSsJeWJh3mQs2x

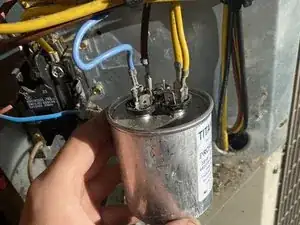

    • Pull the wires directly up and off their terminals.

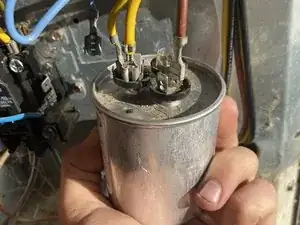

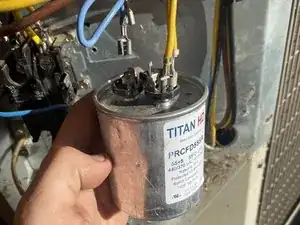

    • Note where the wires go based on their color and the number of prongs on their terminals.

  5. RVnPAOpiwYIwpIVS
    RVnPAOpiwYIwpIVS
    Wj1FUy1mt44OwwCE

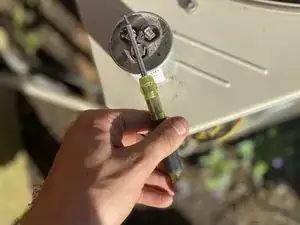

    • Hazardous situation which can result in moderate injury or death. Though the discharge process is demonstrated with a screwdriver, use an appropriately-rated capacitor discharge tool.

    • The terminals have stamps on the metal that indicate which terminal is which. One is labeled "C" for "common," the next is labeled "Fan," and the last one is labeled "Hum" for the compressor.

    • Use the capacitor discharge tool to bridge the gap between the terminals labeled "Hum" (Compressor) and "common" (ground). This will discharge any stored electricity in the capacitance meter to prevent any damage to you and your capacitor meter.

    • Repeat the process with the "fan" terminal and the "common" terminal.

  6. YgalESVv2XTNdbWQ
    YgalESVv2XTNdbWQ
    uuwBOkaCNXtuGKFN
    3rLWRqqimImVAiBy

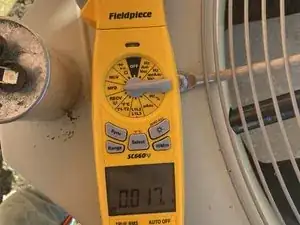

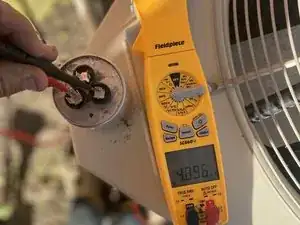

    • Use your capacitance meter to read the microfarads between the 3-prong terminal (Hum) and the 4-prong terminal (common).

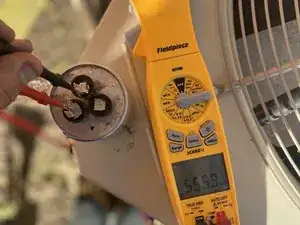

    • Repeat the process between the 1-prong (fan) and the 4-prong terminal (common).

  7. gXEIA5J1cTOM65XR

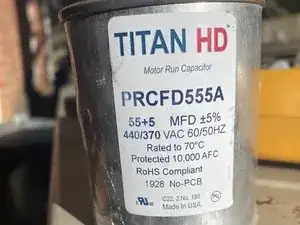

    • Compare the gathered readings with those printed on the capacitor label. If the numbers that you collected are roughly the same (within 0.4 microfarads) then the capacitor doesn't need to be replaced. If the difference is larger than 0.4 microfarads, then it's time to replace the capacitor.

    • For example, a 5-microfarad capacitor that tests at 4.5 microfarads needs replacement, even even if it isn’t causing any issues yet.

    • If the capacitor is already spent, there is often a visual cue to look out for: it will have a bulging appearance on the top of the cylinder, like an unopened soda can that has been dropped.

Abschluss

To reassemble your device, follow these instructions in reverse order.
