Enable TPM on Motherboard TUF_B45M_PLUS_GAMING

Schwierigkeitsgrad

Very easy

Schritte

6

Zeitaufwand

4 - 5 Minuten

Einleitung

Steps on how to enable TPM 2.0 (Trusted Platform Module) in the Motherboard BIOS Tuf_B450M_PLUS_GAMING.

By default, motherboards with AMD or Intel chipsets released before the arrival of Windows 11 have TPM 2.0 disabled, regardless of model and manufacturer, requiring you to enter the BIOS and activate the option to follow the normal system installation process. .

  1. UV2q3ICPnKLv1TFB

    • Turn on the computer, press "DELETE" or "F2" key to enter "UEFI BIOS Utility".

  2. taGe1WTCHH63XsI5

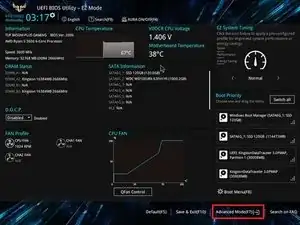

    • Click on the "Advanced Mode(F7)" option or press the shortcut key "F7" to access the "Advanced Mode".

  3. ZNvPF2Q2lmJwOLZf

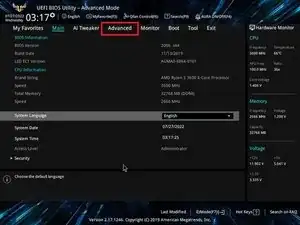

    • In "Advanced Mode" choose the "Advanced" tab.

  4. PXf3NGgN4dAgsLK5

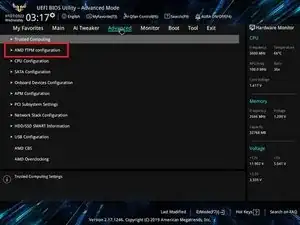

    • In the "Advanced" tab, choose the "AMD fTPM configuration" option.

  5. FWVh5nFLRXNXw5En

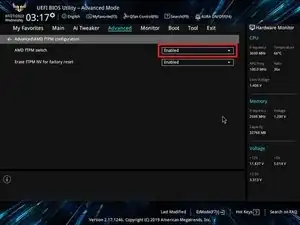

    • In "AMD fTPM switch", change the option from "Disabled" to "Enabled", thus enabling the board's TPM.

  6. gGbQRsktZFfnnOal

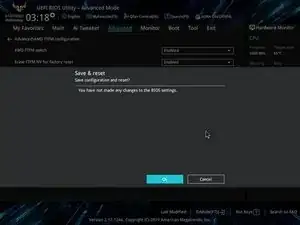

    • After enabling TPM, press "F10" key to save all changes, then click "OK". Okay, now the machine will be restarted with the TPM enabled.

Abschluss

See how it works in practice in the video below:

Notes: For your machine with Windows 11 to recognize the TPM, the "security device support" must be activated in the bios.
