Hair Dryer Fan/ Motor Assembly Replacement

Geschrieben von: Mitch
  • Kommentare: 0
Hair Dryer Fan/ Motor Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

Instead of buying a new hairdryer, simply use this guide to replace the motor on your old one!

  1. jXYWKeLalGIRo2ND
    jXYWKeLalGIRo2ND
    niF4mYomOQRFhxWb

    • Remove the black air concentrating nozzle (shown in the red circle) by gently twisting and pulling the nozzle.

    • If nozzle is not attached, skip to next step.

  2. ihVDFXJNUNy3D6lH

    • Using a screwdriver, remove the screw located underneath the air concentrating nozzle. This screw attaches the hair dryer body to the hair dryer grating.

    • The purpose of this guide is to demonstrate the repair steps for a generic hair dryer. We do not specify screw sizes because screw sizes can differ between hair dryers. For most hair dryers, use a Phillips #1 Screwdriver. For hair dryers with smaller screws, consider using a Phillips #00 Screwdriver.

  3. VMSxyYmMHo2ZWZdJ

    • Detach the hair dryer grating from the body by gently twisting the grating from side to side.

  4. ViLGEHJoRRPUnaQY

    • Separate the hair dryer grating into the three pieces seen in the image.

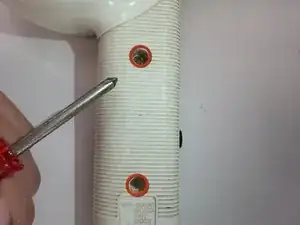

  5. AL3AbHXlgDHS5BsK

    • Locate the screws on the handle and remove with a Phillips screwdriver.

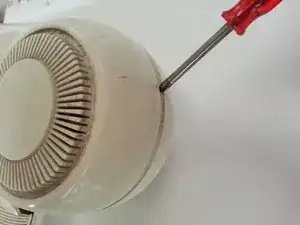

  6. 2SEVGeiJHR2yUCsn

    • Carefully separate the plastic case with the Plastic Opening Tool.

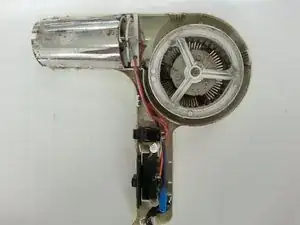

  7. NT2LZ6pxL1oKgRcl

    • After removing the plastic case, locate the fan towards the back of the hair dryer.

  8. sQhJmMWE4CEPMuTq

    • Remove the screw that is holding the fan to the motor using a Phillips screwdriver.

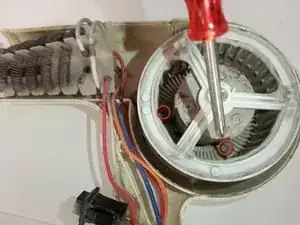

  9. pMl2G3SidVAlWNkk

    • Remove the screws holding the motor to the casing using a Phillips screwdriver.

    • NOTE: This may be unnecessary if the fan can be removed without using a screwdriver.

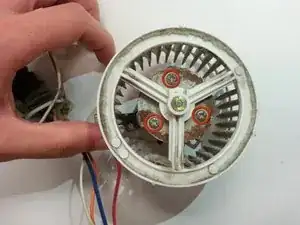

  10. BOqLJiyuBJDfPJWS

    • Isolate the fan from the rest of the dryer.

    • Remove the screws holding the motor in place. Replace with the new component.

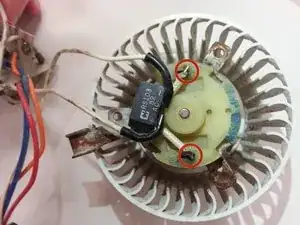

  11. BhYPSqkgQtuImQrO

    • Solder the wires to the motor. Refer to the soldering page below, which will help you replace this component.

    • Soldering Skills

Abschluss

To reassemble your device, follow these instructions in reverse order.
