Einleitung

When following this repair guide, be sure to have an anti-static wrist wrap, and a screw driver with a 4-way bit and 3-way bit. This guide also requires soldering and the possible reapplication of thermal paste.

  1. qdq12Q1vsmU45PcA
    qdq12Q1vsmU45PcA
    aXZ2Dg53VOlpAqLX
    jXLmZetJlARyoK1x
    • Begin by inverting the coffee maker and resting it on a flat surface to make working on the bottom easier.

    • Now use a Y0 bit to remove all of the .46 inch long screws from the bottom.

    • Lift the plate to remove it from the rest of the machine.

  2. NOAOc5dNJFQmKCTu
    • Once the bottom plate is removed, use a PH1 bit to remove the .525 inch long screws holding the motherboard bracket in the main housing.

  3. GmclpQaskEKnqbbS
    GmclpQaskEKnqbbS
    CVeBNPGFfxr133sb
    • Using a PH1 bit, remove the two .425 inch long screws holding down the white power cord bracket. This will give you the slack in the wire that you need to work on the motherboard.

    • Carefully remove the large white connector that has multiple wires attached to it. This is the wire connected to the button functions on the interface of the coffee maker.

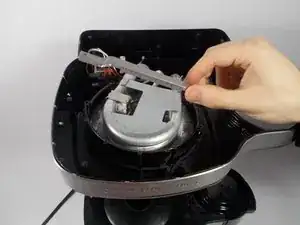

  4. 5dEylvvAlyCLkNIm
    5dEylvvAlyCLkNIm
    m1JCffHVERdjJJPp
    oL3voDuQYsX5fdPF

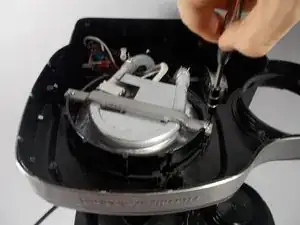

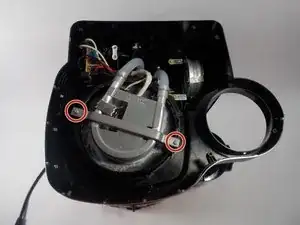

    • Remove the two .374 inch long Philips head screws from the brace using a PH1 bit and take the brace off.

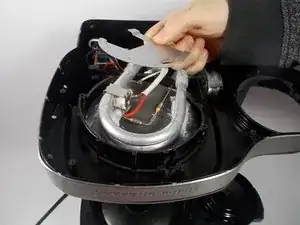

  5. LsaUWVgu3TAKSpbh
    • Remove the second brace.

  6. 3LUnr4LTCarc3MMW

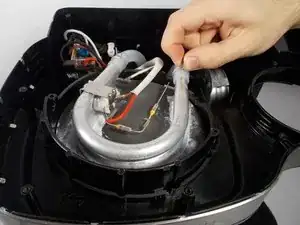

    • To remove the tubes from the large heating component, squeeze the spring clamps and slide them further down the tube.

    • Using pliers makes moving the spring clamps much easier, but it can be done by hand.

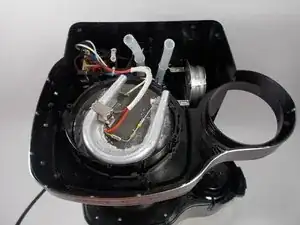

  7. rIH45ZDyF2nlIAdT
    rIH45ZDyF2nlIAdT
    hfXSZKwcyOOQx43E
    B1llAuhDJHMHALtP

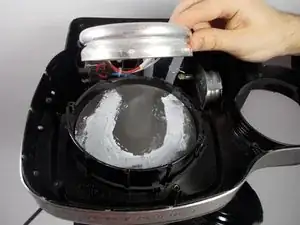

    • With the spring clamps moved down, slide the tubes from the ends of the large heating component. Once the ends are free, separate the component from the hot plate.

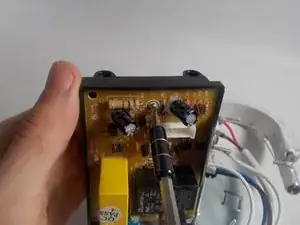

  8. F5kfWM6eBRJaeNL5
    • In order to remove the small housing that covers the motherboard, remove the lone screw with a PH1 bit.

  9. jXoMLSTBjwCoKBGK
    jXoMLSTBjwCoKBGK
    CYMIarGFCfCrJXTn

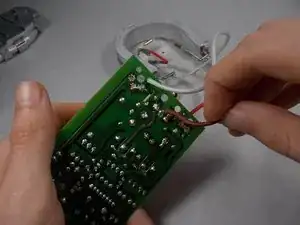

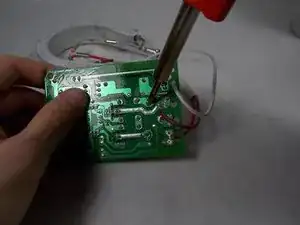

    • Solder the brown wire connecting the large heating component to the motherboard and remove it.

    • The wire and all following wires will be hot, so use pliers to safely handle them.

  10. 6lv6qHhKeJyPAkfv
    6lv6qHhKeJyPAkfv
    1ZeKLl4RG3lWltMS

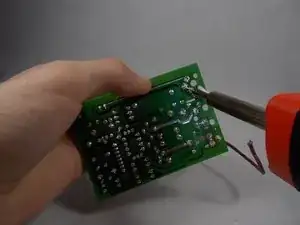

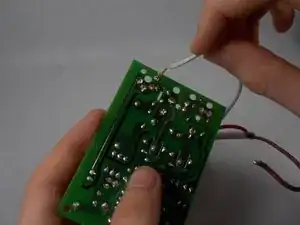

    • Solder the white wire connecting the large heating component to the motherboard and remove it.

    • The wire will be hot, be sure to use pliers

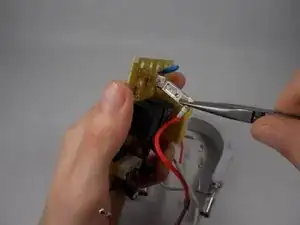

  11. NTVNlCK3ZjimCT6f
    • Gently remove the red wire connecting the large heating component to the motherboard using pliers. If this connection is too tight to remove by hand, you may heat the solder on the bottom and remove it completely.

    • When replacing any soldered components, you may want to apply new solder.

Abschluss

To reassemble your device, follow these instructions in reverse order.
