Einleitung

By following this guide, you will learn how to properly remove and install new water tubes into your Hamilton Beach 49980A

  1. qdq12Q1vsmU45PcA
    qdq12Q1vsmU45PcA
    aXZ2Dg53VOlpAqLX
    jXLmZetJlARyoK1x
    • Begin by inverting the coffee maker and resting it on a flat surface to make working on the bottom easier.

    • Now use a Y0 bit to remove all of the .46 inch long screws from the bottom.

    • Lift the plate to remove it from the rest of the machine.

  2. NOAOc5dNJFQmKCTu
    • Once the bottom plate is removed, use a PH1 bit to remove the .525 inch long screws holding the motherboard bracket in the main housing.

  3. GmclpQaskEKnqbbS
    GmclpQaskEKnqbbS
    CVeBNPGFfxr133sb
    • Using a PH1 bit, remove the two .425 inch long screws holding down the white power cord bracket. This will give you the slack in the wire that you need to work on the motherboard.

    • Carefully remove the large white connector that has multiple wires attached to it. This is the wire connected to the button functions on the interface of the coffee maker.

  4. KJPpWSEMxWqVgLni
    • After removing the motherboard. Proceed to remove the inner housing which holds the excess power cord. This can be removed by using the PH1 bit to remove the .525 inch long screws that hold the housing in the main housing.

    • This step is crucial because if this inner housing is left attached, the power cord will bind between the two pieces that slide past each other during removal of the main housing.

  5. UpPjaf5lfoSCWGOp
    UpPjaf5lfoSCWGOp
    NGXgDxLAcjESLDNJ
    jQFSrRswhTWwSlrM

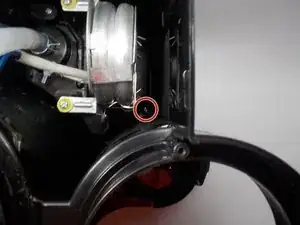

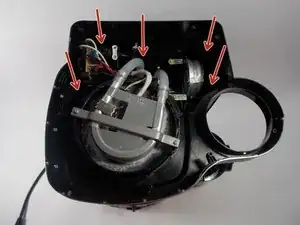

    • Use a long screwdriver with the PH1 bit to access the screws holding the main housing to the top of the machine.

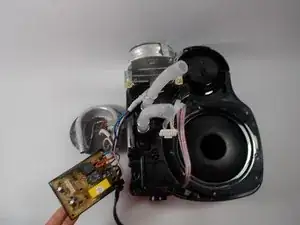

    • Pull main housing up and be sure to run all of the inner parts through the cavity at the bottom. This may take a few tries since components can easily get caught on each other

  6. wXDXRULel2TETxSp

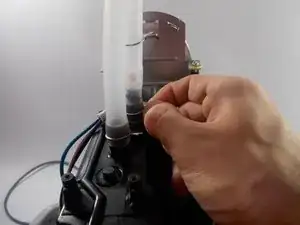

    • locate the bottom two spring clamps on the tube attached to the base of the coffee maker. Pinch these clips while pulling up to release the tube from the base.

    • Pliers will make this task easier

  7. KKOotDBxB3eLCeiH
    KKOotDBxB3eLCeiH
    OvuTp1ROGTKKNTQ3

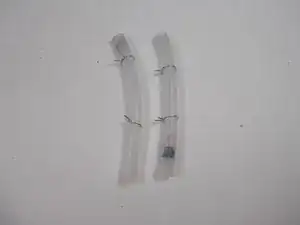

    • After pushing the clips down, pull the tube from the base. This may be difficult, so use a spudger to pry the tube off as you hold the base down.

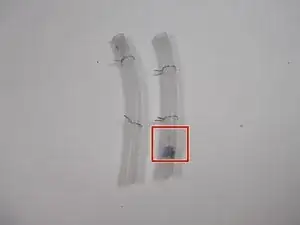

    • When replacing the water tubes, be sure to remove the apparatus from the tube on the right and insert it into the new tube.

    Hello, I need to replace a water tube in my 49950C HB FlexBrew because it is cracked. Where do i get a replacement?

    miwald -

Abschluss

To reassemble your device, follow these instructions in reverse order.
