Hamilton Beach 70730 Drive Shaft Replacement

Geschrieben von: Mack Bernard
  • Kommentare: 0
Hamilton Beach 70730 Drive Shaft Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

3 - 5 Minuten

Einleitung

The drive shaft is essential and may possibly have a stripped gear, causing the blade not to turn. There are several steps in order to take this out and replace it. Beware of lubricant along the bottom of it.

  1. l2YnkFvIy4brmLpl

    • Unscrew the cover by turning it counterclockwise.

  2. bEuZfcmpxynGS1IH

    • Grab the scraper by the midsection to remove.

  3. rwoILZTgpEbgZPME

    • Carefully remove the blades by lifting them off of the blade shaft.

  4. QDuyOYbDHFwpDfZT

    • Rotate the bowl counterclockwise to release it from the base.

  5. LGQy1qA6ZVAGQE2I

    • Make sure there is no food or grime along the outside of the bowl or the base.

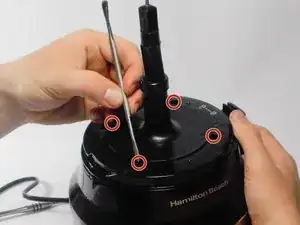

  6. aWJFuj6j1ZLVUpVn

    • Using the metal spudger, remove the four adhesive plastic covers that hide the screws.

    • These covers are adhered to the screws.

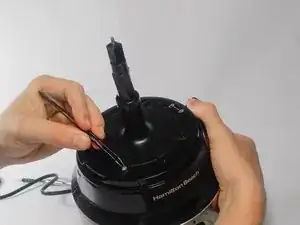

  7. SlPMtqdLLee2X1AE

    • Remove any excess glue that is adhered to the screws with the precision tweezers.

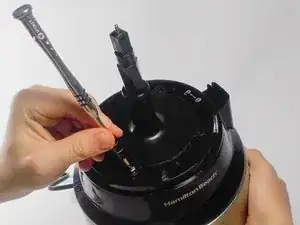

  8. gmvKExWFLK4D2Uvf

    • Using a JIS #1 driver, remove the four 10 mm screws.

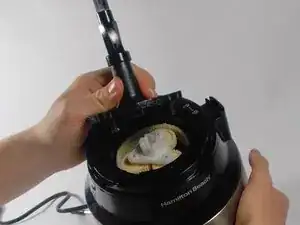

  9. GbNnrsmFKDVBLGLs

    • Lift the driveshaft off of the base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
