Einleitung

Removing the base of your food processor is necessary for additional repairs and cleaning.

  1. YAnhca5bBAWq5NV1
    YAnhca5bBAWq5NV1
    UncBOHgPUXj2eB65
    NUBc4fSZALhggjOs

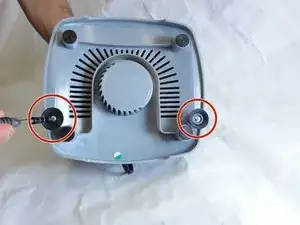

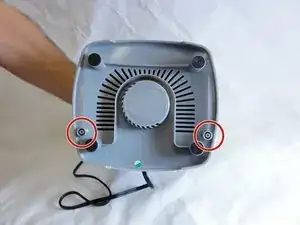

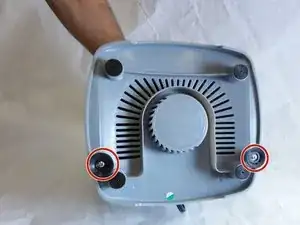

    • Hold the food processor upside down and remove the two screws indicated with a screwdriver. Once unscrewed, remove the two rubber suction pads.

  2. XJHL4QUa6pVJVfDM
    XJHL4QUa6pVJVfDM
    sMWW2IjQwIuF6xQW

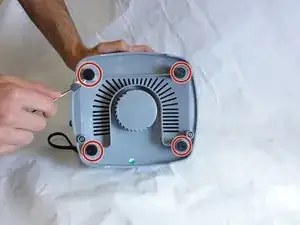

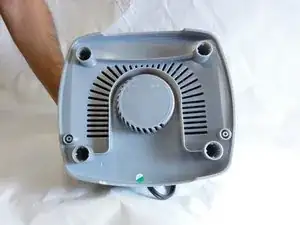

    • Use a spudger to remove the 4 rubber base pads located at the corners of the device.

  3. wcSBhgBfwBVyZSWp

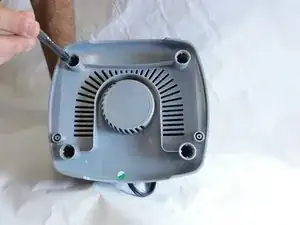

    • Unscrew all 4 screws that are located beneath the pads with a screwdriver and remove the plastic grey base.

  4. vTyFU61H5AtH5tN3

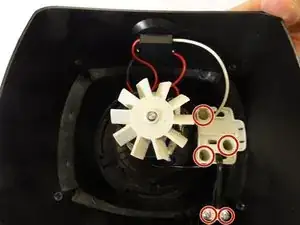

    • Remove the screws indicated with a screw driver.

  5. AKRFgTIf6pxhHNUY

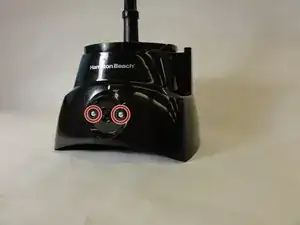

    • Remove the two screws behind the knob with a screwdriver.

Abschluss

To reassemble your device, follow these instructions in reverse order.
