Einleitung

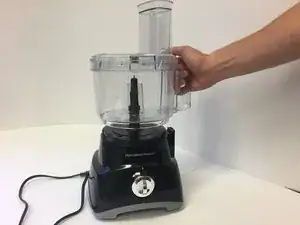

Be sure to keep the processor unplugged throughout the replacement process.
Werkzeuge
-
-

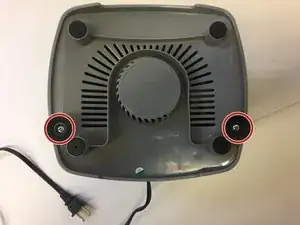

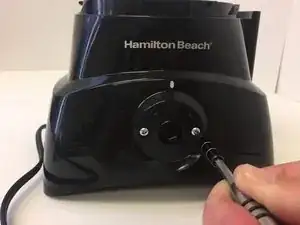

Using a #2 Phillips head screwdriver, remove the two 11 mm screws from the base.
-

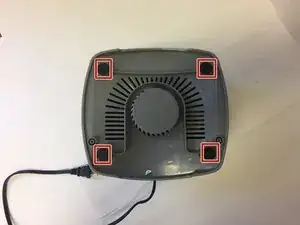

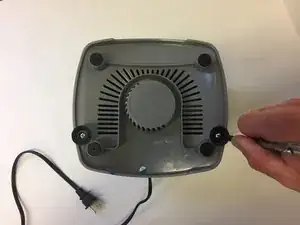

Pull suction cups straight out.
-
-
-

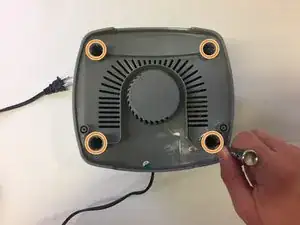

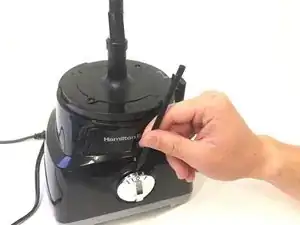

Remove rubber caps using the heavy duty spudger.
-

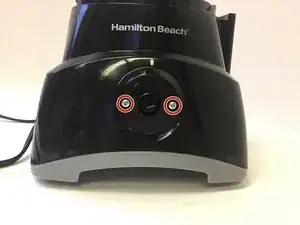

Remove the four 11 mm screws using the #2 Phillips head screwdriver.
-

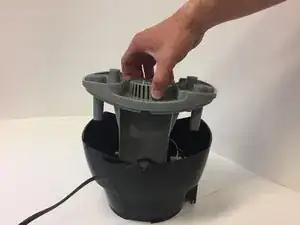

Pull base straight out.
-
-
-

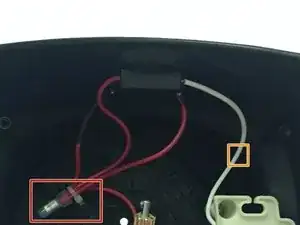

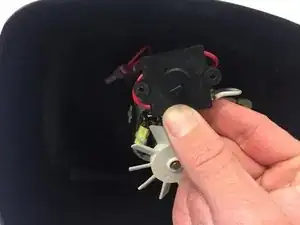

Cut all four red wires using the wire stripper crimping tool.
-
Using the wire stripper crimping tool strip the ends of each red wire and insert them into a new wiring connector cap, then crimp firmly.
-
Cut the white wire using the stripper crimping tool.
-
Using the wire stripper crimping tool strip the ends of each of the white wires and insert them into the opposite ends of a parallel connector, then crimp firmly.
-
To reassemble your device, follow these instructions in reverse order.
