Replacement of the power cord. Make sure to keep the processor unplugged until finished with replacement.
Werkzeuge
-
-

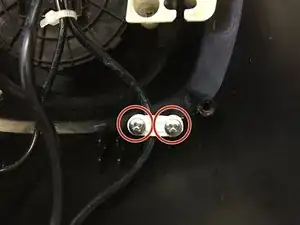

Using a #2 Phillips head screwdriver, remove the two 11 mm screws from the base.
-
Pull suction cups straight out.
-
-
-
Remove rubber caps using the heavy duty spudger.
-
Remove the four 11 mm screws using the #2 Phillips head screwdriver.
-
Pull base straight out.
-
-
-

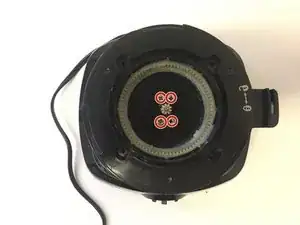

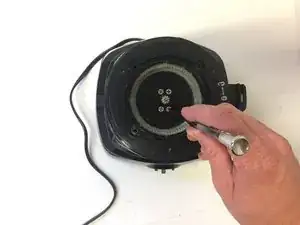

Using a #2 Phillips head screwdriver, remove the four 9 mm screws.
-

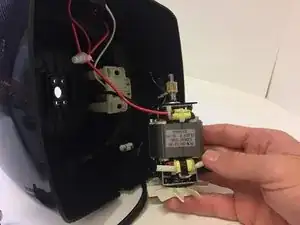

From the open base pull the motor straight out.
-
-
-

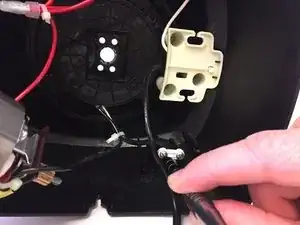

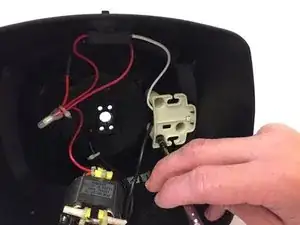

Using the wire stripper crimping tool cut the black wire connection from the power cord to the motor and then rewire the new power cord to the motor.
-
-
-

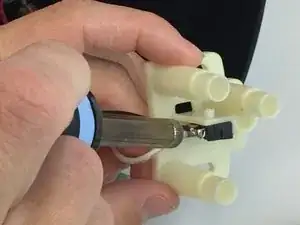

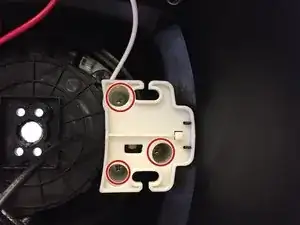

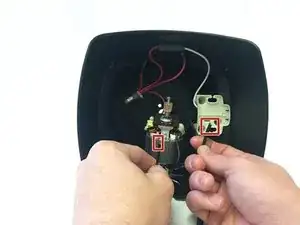

Remove the three 12 mm screws using the #2 Phillips head screwdriver.
-

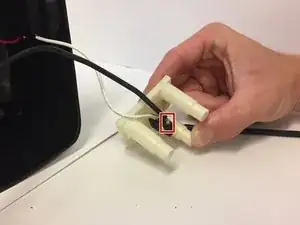

Remove the plastic piece by pulling straight up.
-
To reassemble your device, follow these instructions in reverse order.
