Hamilton G5 Expiratory Valve Replacement

Geschrieben von: Sierra Saenz
  • Kommentare: 0
Hamilton G5 Expiratory Valve Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

For more information on replacing the expiratory valve, please refer to section 10 of the service manual.

Werkzeuge

  1. fjgQk6mimMGXS5gZ

    • Remove 4 Hex Allen screws (A) from the Rail surrounding the Ventilation Unit.

  2. A2gshoWnH5kpeuED

    • Remove the Rail (B).

  3. ZVDkF2bOlgkSwec3

    • The Standoff Brackets (C) remain with the Main Cover.

    • Place aside in a safe location.

  5. L5QTBiKMAkJltAKI

    • Lift the Main Cover (A) from the Ventilation Unit using the Standoff Brackets (B) attached to the Main Cover.

    • Place aside in a safe location.

  7. Mfui5mBTBrRoEHlP

    • Disconnect 2 cables from the magnet of the Expiratory Valve.

  8. ybmcu1V1oISVlsnj

    • Remove the Expiratory Valve Cover (A) and Silicon Membrane (A) (if not already removed).

  9. KHNLWBQaQINSV1bj

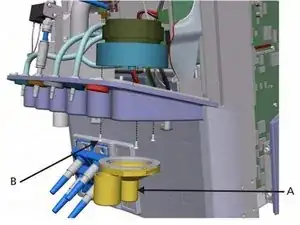

    • Remove 3 Hex Allen screws (B) M3x8

  10. MipGwtAoVEwZcRkQ

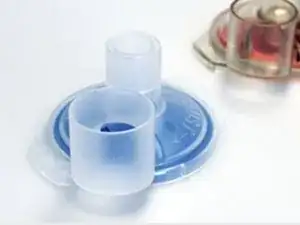

    • Remove the Expiratory Valve.

Abschluss

To reassemble your device, follow these instructions in reverse order.
