Hamilton G5 Inspiratory Valve Replacement

Geschrieben von: William
  • Kommentare: 1
Hamilton G5 Inspiratory Valve Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

For more information on replacing the inspiratory valve, please refer to section 10 in the service manual.

Werkzeuge

  1. fjgQk6mimMGXS5gZ

    • Remove 4 Hex Allen screws (A) from the Rail surrounding the Ventilation Unit.

  2. A2gshoWnH5kpeuED

    • Remove the Rail (B).

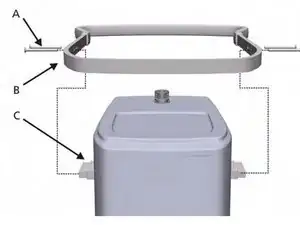

  3. ZVDkF2bOlgkSwec3

    • The Standoff Brackets (C) remain with the Main Cover.

    • Place aside in a safe location.

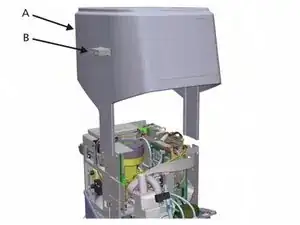

  5. L5QTBiKMAkJltAKI

    • Lift the Main Cover (A) from the Ventilation Unit using the Standoff Brackets (B) attached to the Main Cover.

    • Place aside in a safe location.

  7. GX3UhUInXAu5vGx2

    • Remove Safety Valve Block

    • 1. Disconnect the cable from the Ambient Valve Solenoid

    • 2. Disconnect the Shaped Hose (A)

    • 3. Remove the 2 Hex Allen Screws (B)

    • 4. Remove the Safety Valve Block

    • To remove Ambient Valve Solenoid: Unscrew the Ambient Valve Solenoid (C) form the Safety Valve Block

  8. NhRYw2bSDLP6fiTr
    NhRYw2bSDLP6fiTr

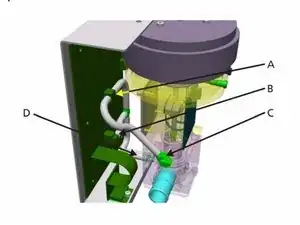

    DBADONZgO1OkmBQV

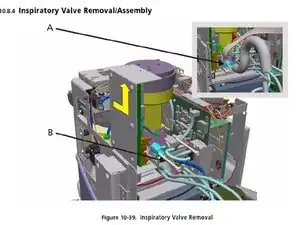

    • Removing the Inspiration Valve

    • 1. Disconnect the tubing and cables form the Inspiration Valve

    • 2. Disconnect the Shaped Hose (A)

    • 3. Remove 2 Hex Allen screws (B) M5x60

    • 4. Move the Inspiration Valve forward and then up

    • 5. Remove the Inspiration Valve

Abschluss

To reassemble your device, follow these instructions in reverse order.
