Hamilton G5 Nebulizer Valve Replacement

Geschrieben von: Cole Korchek
  • Kommentare: 0
Hamilton G5 Nebulizer Valve Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide serves as a step-by-step replacement tutorial in replacing the internal nebulizer. First you will need to remove the rail and main cover shown in separate guides. You will need a phillips-head screwdriver and a hex-allen wrench to complete the replacement. It will take about 15-20 minutes.

For more information on replacing the nebulizer, please refer to section 10 in the service manual.

  1. fjgQk6mimMGXS5gZ

    • Remove 4 Hex Allen screws (A) from the Rail surrounding the Ventilation Unit.

  2. A2gshoWnH5kpeuED

    • Remove the Rail (B).

  3. ZVDkF2bOlgkSwec3

    • The Standoff Brackets (C) remain with the Main Cover.

    • Place aside in a safe location.

  5. L5QTBiKMAkJltAKI

    • Lift the Main Cover (A) from the Ventilation Unit using the Standoff Brackets (B) attached to the Main Cover.

    • Place aside in a safe location.

  7. PWT2qYxMwpxDKfUb

    • After the rail and main cover are taken off, remove the dark blue tubing connected to the nebulizer, pictured here.

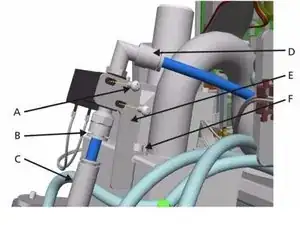

  8. RRFASIsyoaLDe56X

    • Remove the two phillips screws labeled A from the Nebulizer valve.

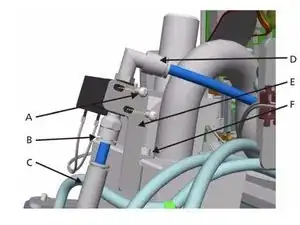

  9. RhURHrcAKUSAQMEd

    • Remove the nebulizer valve parts.

    • The Nebulizer Valve parts are:B. Straight fitting

    • C. Front Nozzle fitting

    • D. Elbow fitting

    • E. Mounting bracket

    • F. Hex Allen screw for attaching the bracket to the Safety Valve Block

Abschluss

To reassemble your device, follow these instructions in reverse order.
