Handset Microphone Replacement

Geschrieben von: Han Shih
  • Kommentare: 0
Handset Microphone Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

8 Minuten

Einleitung

This will walk you through replacing the microphone on the handset.

  1. gbRVR4XeEOevMZwV

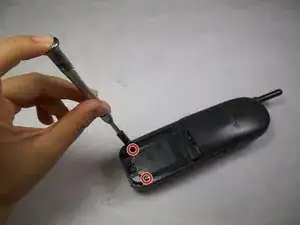

    • After removing the BP-T18 battery pack, you will see two 11mm Phillips #0 screws located at the bottom of the phone. Remove both screws with a screwdriver.

    • Product is made of brittle plastic.

  2. B2IgtAYwkjklB1yM
    B2IgtAYwkjklB1yM
    BygkQ5YVTDDtXTlR

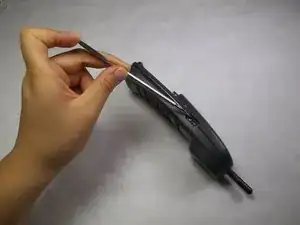

    • Locate an easy point of access for a spudger, and then slowly insert it into the gap and pry it open.

    • The opening should become bigger if you exert force at a 30 degrees angle.

    • Increase the degree of slant until the back cover is completely removed.

  3. IigkDYhY2bm1M1kf
    IigkDYhY2bm1M1kf
    kvqmTOPCtMFndfaJ

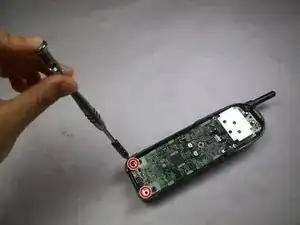

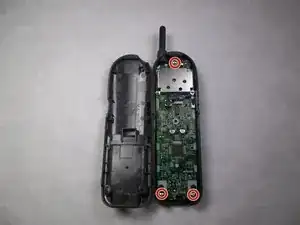

    • After removing the back cover, you will see 3 screws: one 7mm Phillips #0 screw at the top and two 11mm Phillips #0 screws at the bottom.

    • Use a screwdriver to remove all 3 screws.

  4. MSL3dDXZsX4SwRTi
    MSL3dDXZsX4SwRTi
    de1qViDOpv2OYMfI

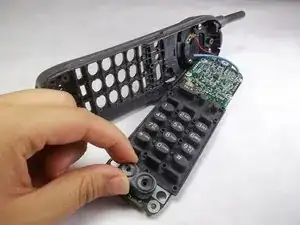

    • After disassembling the handset, you will see the inner components of the handset.

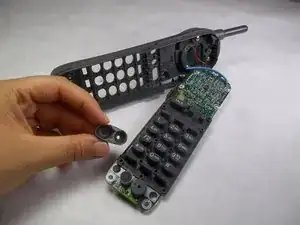

    • Locate the rubber part towards the very bottom of the handset. This is the microphone with protective rubber cover.

    • Remove the protective rubber cover. This may require a spudger.

    • The microphone is exposed upon removal of the protective rubber cover. Avoid contact with water.

Abschluss

To reassemble your device, follow these instructions in reverse order.
